Testo 316-3 Refrigerant Leak Detector - 0563 3163

$657.95
$657.95
$822.95
Sold out
Quantity must be 1 or more

Advanced Refrigerant Leak Detector for Swift Identification of Refrigerant Gas Leak

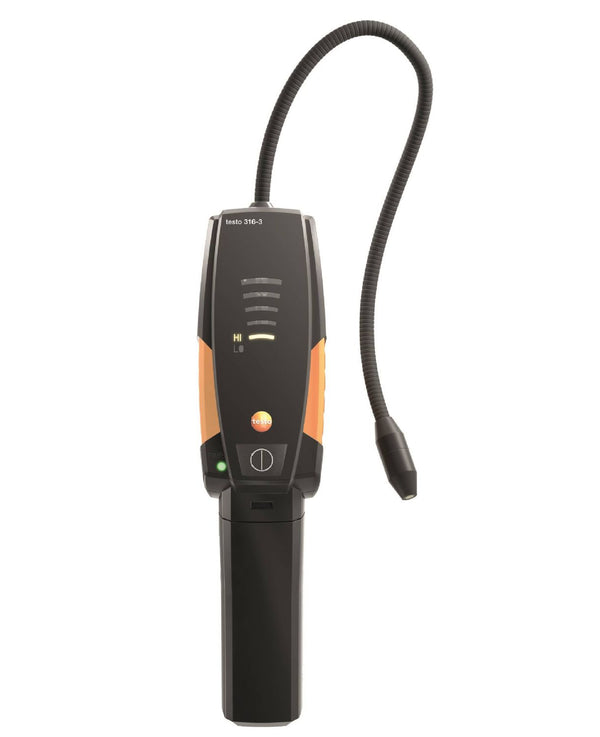

The Testo 316-3 Refrigerant Leak Detector is a portable device designed to detect leaks in refrigeration systems. It uses a heated diode sensor to detect refrigerant gases, including R22, R134a, R404A, R410A, R507, and others.

The Testo 316-3 has a sensitivity range of 0.15 oz/yr (4 g/a) to 0.02 oz/yr (0.6 g/a), detecting even small leaks. It also features an audible and visual alarm that alerts the user to the presence of a leak detection.
  • A patented heated diode sensor provides excellent sensitivity
  • High/low sensitivity adjustment and automatic zeroing
  • Easy one-button operation

Specifications

TECHNICAL DATA

Storage Temperature 0 to +50 °C
Operating Temperature -20 to +50 °C
Battery Life 6 hours continuous
Length of Probe ( Goose Neck) 370 mm


TECHNICAL DATA

Meas. parameter g/a
Detectable NH3, R134a, R22, R404a, H2 and all common
refrigerants such as CFC, HCFC, HFC NH3
(separate sensor head)
Lower reaction
threshold 		3 g/a

Technical Data
General technical data

Operating humidity

20 to 80 %rH

Weight

18 oz. (incl. batteries) / 500 g (incl. batteries)

Dimensions

10.6 x 2.4 x 2.4 in. / 270 x 60 x 61 mm

Operating temperature

-0.4° to 122.0 {٪S2} / -18 to +50 °C

Product colour

Black

Detectable

R22; R134a; R404A; R410A; R507; R438A; all CFCs, HFCs, and HCFCs

Life-time sensor

Approx. 80 to 100 h (corresponds to approx. 1 year)

Sensitivity

4 g/a (0.15 oz/a)

Standards

EN 14624:2012; SAE J1627

EU-/EG-guidelines

2004/108/EG

Battery type

2 x D

Battery life

16h permanent operation

Storage temperature

32.0° to 122.0 {٪S2} / 0 to +50 °C

Kit includes

  • testo 316-3
  • Sensor head
  • Transport caseF
  • Calibration certificate
  • Batteries, and filter

Warranty

  • 2 Years warranty

Manual

Testo 316-3 Refrigerant Leak Detector - 0563 3163 User Manual
