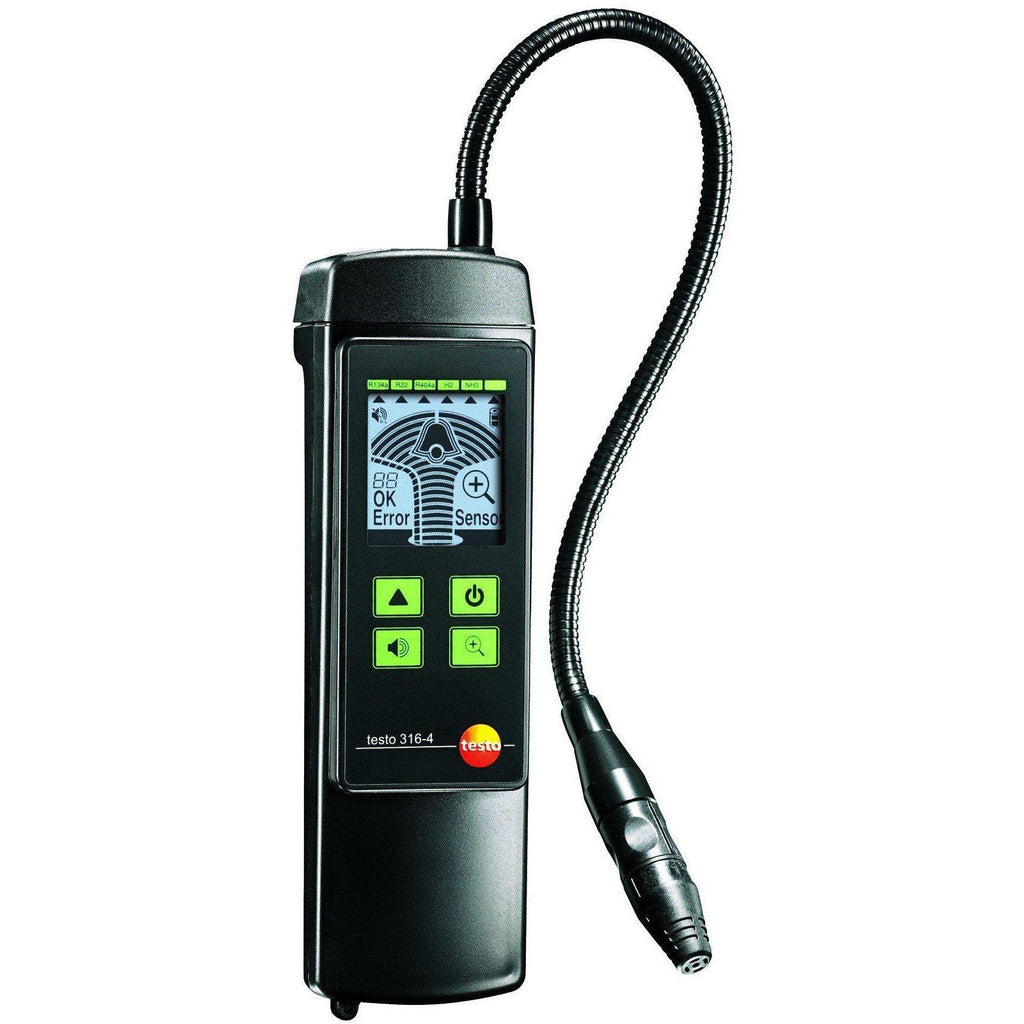

Testo 316-4 Kit 1 - Leak Detector

Specifications

• A highly accurate sensor of ˂3g/a enables the detection of the smallest leaks
• Visual and acoustic alarm for optimum leakage detection
• Earplug connection for safe leakage
• detection in loud environments
• A maximum indicator shows maximum leakages

Everything you need for professional leakage detection: the testo 316-4 set 1 with leak detector for all common refrigerants CFC, HFC, HCFC, and H2, including refrigerant sensor head, case, mains unit, and earphones. You will therefore be ideally equipped to carry out quick, reliable leakage detection.

• The extremely high sensitivity of ˂3g/a enables the detection of even the smallest leaks.
• Visual and acoustic alarm for optimum leakage detection
• Permanent sensor check, ensuring that your work is both safe and fast
• Earplug connection for safe leakage detection in loud environments

Leaks on a refrigeration system or heat pump have serious consequences. The system no longer provides the required cooling capacity, and, in the worst-case scenario, system components can be damaged. Not to mention the environmental damage and the costs incurred by your customer. It would help if you had fast, reliable measuring instruments such as the testo 316-4 leak detector to detect even the smallest of leaks.

Benefits

• An all-rounder in leak detection: the testo 316-4 leak detector (set 1) is a fast, reliable leak detector for all common refrigerants.



• Practical sensor technology: the leak detector's sensor is permanently monitored and displays malfunctions or contaminations on the screen. The use of test leaks is, therefore no longer necessary. If dirty, the sensor can be easily cleaned and then ready for use immediately. Moreover, thanks to its flexible gooseneck, the sensor can be positioned close to the pipework or the measuring location

• High sensitivity: its extremely high sensitivity of ˂3g/a in accordance with EN 14624 enables reliable detection of even the smallest leaks. The drag pointer function indicates maximum leakages, making it easier to locate leaks



• Reliable warning functions: if a leak is found, the display changes from green to red. An audible signal also indicates that a leak has been detected. The earphones included in the set also enable the testo 316-4 leak detector to be used in loud environments.

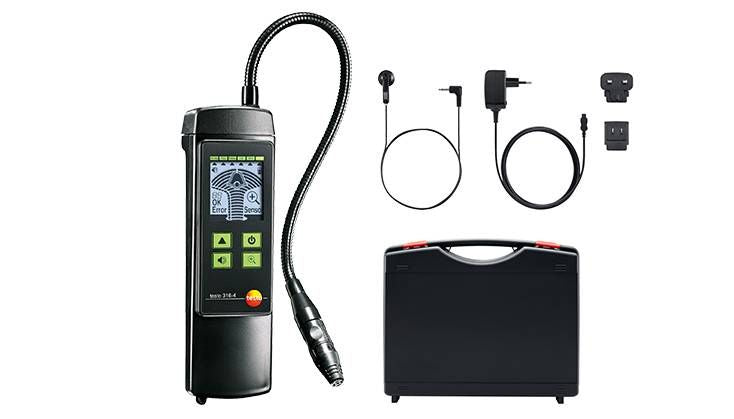

Kit includes

• testo 316-4,
• Ammonia sensor head,
• case
• mains unit
• earphones

Warranty

• 2 Years

User Manual
