Robinair Leak Detector Heated Pentode ZX-1A

The Tool Professionals Use to Find Refrigerant Leaks

The TIF Heated Pentode refrigerant leak detector nds the leak faster and more accurately, saving you time and money. Refrigerant leaks are hard to find, and our patented refrigerant speci c detection eliminates ambient 'false alarms' by directing you quickly to the source of the leak. Comfortable and easy to use, it's engineered for daily use in industrial or residential applications. Find the leak and close the service call quicker with the TIFZX.

Responsive. Accurate. Quick.

• Heated Pentode(R) Sensor Technology
• Visual Leak Size Indicator
• No Calibration Required

Features

• Detects All refrigerants - Capable of detecting all halogenated refrigerants, including R410A
• Tri-Color Visual Leak Size Indicator - Intensity increases as the source of a leak is detected
• True Mechanical Pump - Provides instant response and quick clearing
• Tactile Control Pad - Easy one-touch function selection
• Adjustable Sensitivity - One touch reset and sensitivity adjustment to pinpoint the exact location of a leak

Specifications

• Dimensions: 15.00in x 10.00in x 3.50in
• Sensor Technology: Heated Pentode(R)
• Sensor Life Expectancy: Up to 150 Hrs of normal use
• Refrigerants Detected: All CFC, HFC, and HCFCs
• Sensitivity: less than 0.1oz/yr (3g/yr); as low as 0.05 oz/yr (R-12)
• Excessive Refrigerant Tolerance: Sensor cannot be 'poisoned' by excessive refrigerant
• Warm Up: 20 Seconds
• Battery: Rechargeable NiMH, 6-hour life; 2-hour recharge time
• Operating Environment: 32oF to 125oF (0oC to 52oC); 0 to 95% RH non-condensing
• Probe: 16" Coated
• Dimensions: 10.25"L x 2.5" Dia.
• Weight: 16 oz. (452g)
• Agency Approvals: CE, SAE J1667
• Warranty: 3-year limited

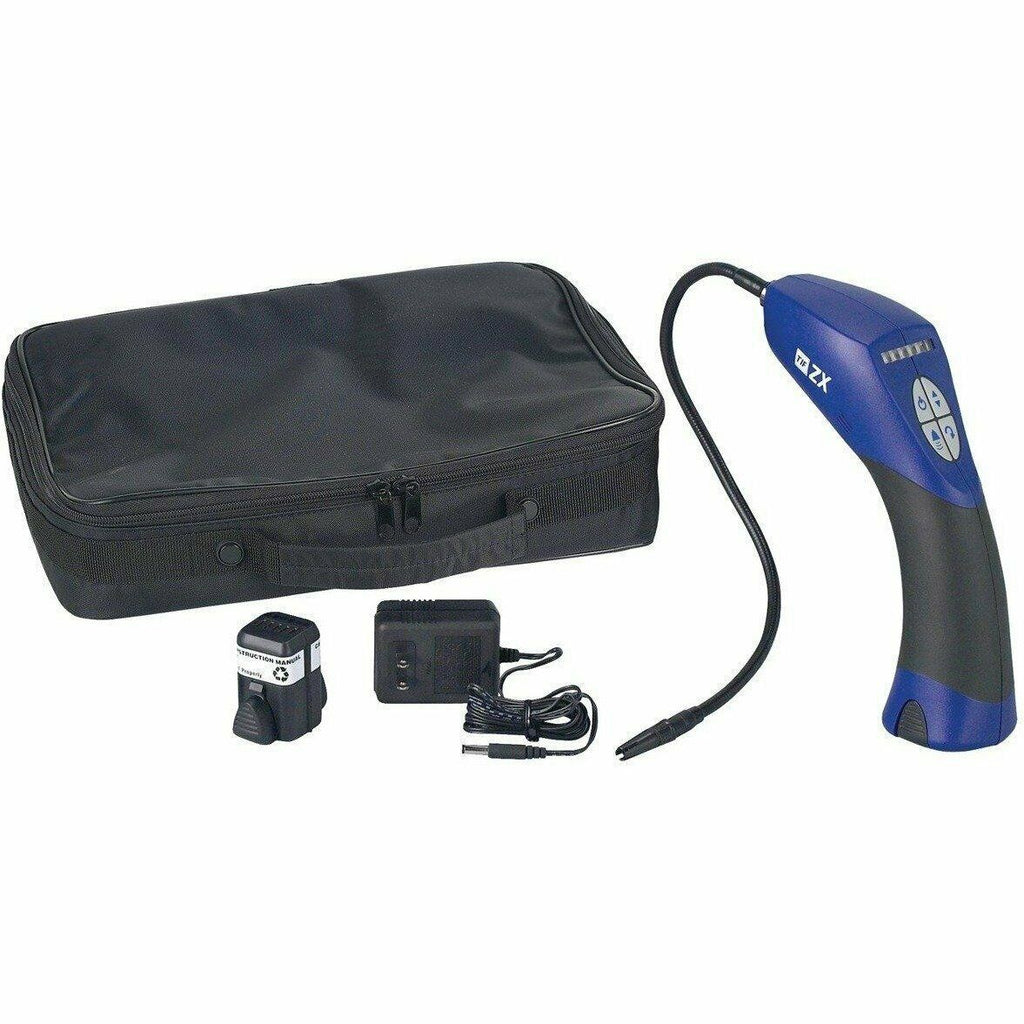

Package Includes

• TIFZX Refrigerant Leak Detector
• Battery Pack, Nickel Metal Hydride (NiMH)
• Battery Charger
• Soft Carrying Case
• Owner's Manual

• 1 Year from the Date of Purchase
• ​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Cases, etc.
