Uni-T

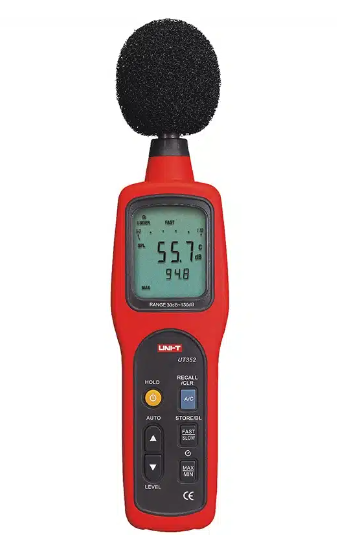

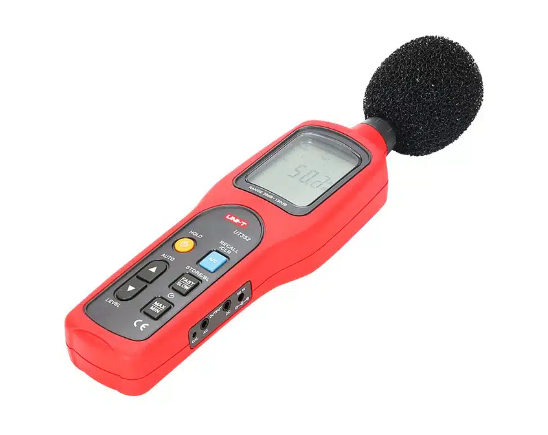

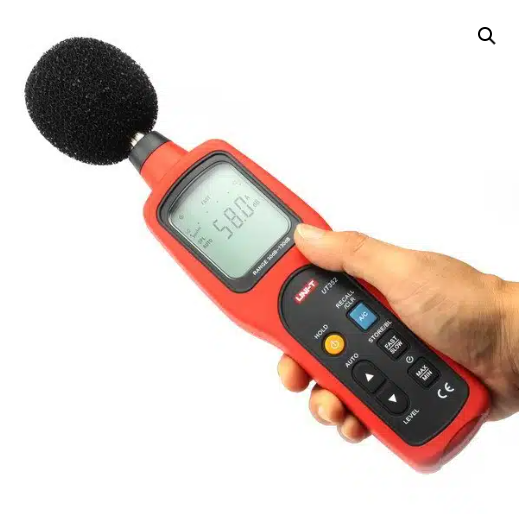

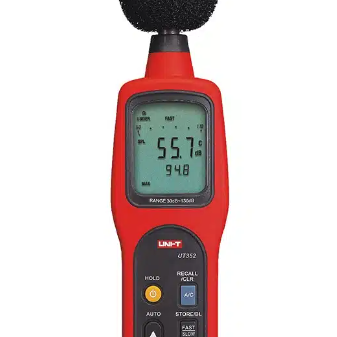

Uni-T UT352 Sound Level Meter
$300.95
$376.95
The UT352 takes sound measurement to the next level.
Uni-T UT352 sound level meters can measure sound noise level and output results in dB. A or C weighted modes can be selected depending on the application. These meters consume very little power and can continuously work up to 20 hours. They are suitable for industrial and environmental sound level measurements.
FEATURES
- MAX/MIN modes
- Auto power off (cancellable)
- 63 sets data storage
- AC/DC analog signal output
- Analog Bar Graph
- Over/under range indication
- Data hold, LCD backlight
- Simulated analog bar
- A (ear)/C (machine) weighing modes
- Manual/auto range selectable
- Fast/slow response rate (fast: 125ms, slow: 1s)
- Powered by batteries or external power source
- 12 Month Warranty.
INCLUDES:

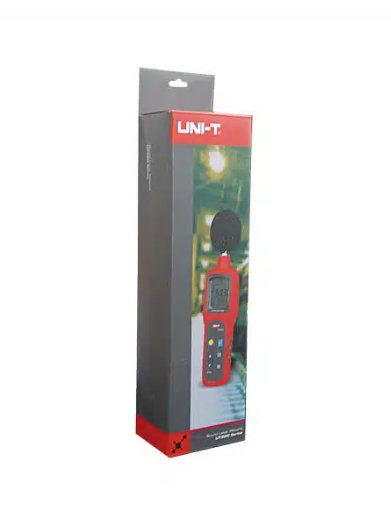

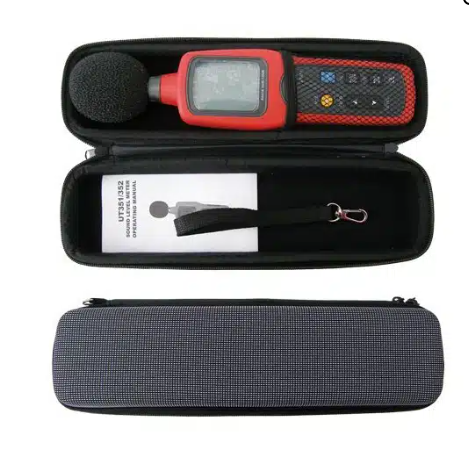

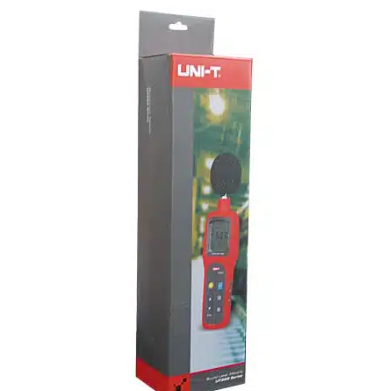

UT352, English Manual, Leather Box, Mic Shield, Batteries and 12-month Warranty.
SPECIFICATIONS:
| Specifications | Range | Best Accuracy |
| Model | UT352 | |
| Range | 30～80dB | ±1.5dB |
| 50～100dB | ±1.5dB | |
| 60～110dB | ±1.5dB | |
| 80～130dB | ±1.5dB | |
| Frequency | 31.5Hz～8000Hz | √ |
| Frequency Weighting | A&C | √ |
| Sample Rate | FAST: 8 Times/s | √ |
| SLOW: 1 Times/s | √ | |
| Features | ||
| Analogue Outputs | AC: 0.707Vrms full scale; Output impedance: around 600Ω | √ |
| DC: 2Vrms full scale; 10mV/dB; Output impedance: around 100Ω | √ | |
| Data Hold | √ | |
| Auto Power Off | √ | |
| Low Battery Indication | ≤4.8V | √ |
| MAX Mode | √ | |
| MIN Mode | √ | |
| Data Logging | 63 | |
| High Alarm | Display “OVER” | √ |
| Lower Alarm | Display “UNDER” | √ |
| LCD Backlight | √ | |
| Analog Bar Graph | 30～130dB | √ |
| General Characteristics | ||
| Power | 1.5V Batteries (LR6) X 4 | |
| LCD Size | 53mm X 41mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 330g | |
| Product Size | 273mm X 70mm X 39mm | |
| Standard Accessories | Batteries, Windscreen, Leather Box | |
| Standard Individual Packing | Box, English Manual | |
