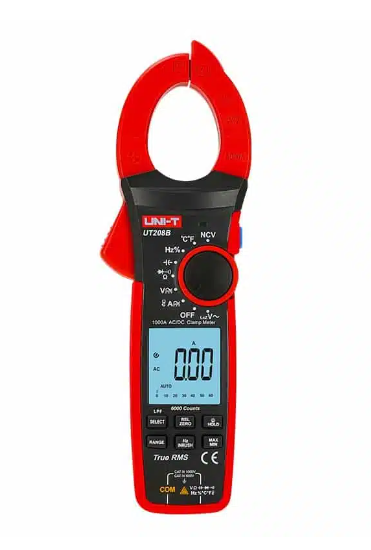

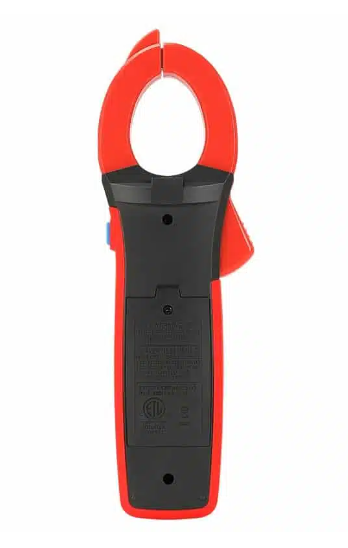

Uni-T UT208B True RMS Digital Clamp Meter
UT208B Clamp Meters are 42mm Jaw 6000-count digital clamp meters with auto-range, large LCD, true RMS, autoscale memory, and NCV functions.
They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current mode for capturing transient current. The UT208B also features high-precision temperature measurement with 0.1 °C resolution and can be equipped with a flexible current probe to extend the AC current measurement range to 3000A.
FEATURES:
- CAT II 600V / CAT III 300V rating
- AC/DC readings
- Continuity test and Frequency
- Auto / Manual Range
- Analog bar graph (31)
- True RMS
- Zeroing function
- Data hold function
- Sleep mode
- Low battery display
- Display backlight
- 42 mm maximum jaw diameter
- Measurement update speed 3 times/second
- Auto power off and low battery indication
- Temperature measurement -40~1000℃
- Inrush current (A)
- Flashlight button.
INCLUDES:
1 x UT208B, Test leads, Batteries, Point contact temperature probe, 1 x English user manual and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT208B |
| AC current (A) | 1000A | ±(2%+5) |
| DC current (A) | 1000A | ±(2%+5) |
| AC current frequency response | 40Hz~400Hz | |
| Inrush current (A) | 1000A | ±(10%+10) |
| AC voltage (V) | 6V | ±(1.2%+3) |
| 60V/600V/1000V | ±(1%+8) | |
| DC voltage (V) | 600mV | ±(0.8%+3) |
| 6V/60V | ±(0.5%+5) | |
| 600V | ±(0.5%+5) | |
| 1000V | ±(0.5%+5) | |
| Low pas filter (LPF ACV) | 600V/1000V | ±(2%+5) |
| AC voltage frequency response | 40Hz~400Hz | |
| LoZ ACV | 600V/1000V | ±(2%+5) |
| Resistance (Ω) | 600Ω | ±(1%+3) |
| 6KΩ/60KΩ/600KΩ | ±(1%+2) | |
| 6MΩ/60MΩ | ±(2%+8) | |
| Capacitance (F) | 60nF | ±(4%+25) |
| 600nF/6μF/60μF/600μF | ±(4%+5) | |
| 6mF/60mF | ±(10%+9) | |
| Temperature (℃) | -40℃~300℃ | ±(1%+20) |
| 300℃~1000℃ | ±(1%+2) | |
| Low voltage frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) |
| Duty cycle (%) | 10%~90% | ±(2.6%+7) |
| Features | ||
| Display count | 6000 | |
| Jaw opening | 42mm | |
| Current frequency | 50Hz~60Hz | |
| High voltage frequency | 40Hz~400Hz | |
| Analog bar | 31 | |
| Auto power off | √ | |
| Continuity test | √ | |
| Auto/Manual range | √ | |
| Low battery indication | √ | |
| Diode test | √ | |
| Relative mode/Data hold | √ | |
| MAX/MIN | √ | |
| Function selection | √ | |
| Flashlight | √ | |
| Wake-up function | √ | |
| Auto power off current: ＜50μA | √ | |
| Flexible current probe (optional) | Extends to 3000A | √ |
| Zero mode | √ | |
| Input impedance (ACV/DCV) | ≥10MΩ | √ |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 3 | |
| Display | 43mm x 45mm | |
| Product colour | Red and grey | |
| Product net weight | 420g | |
| Product size | 272mm x 81mm x 43.5mm | |
| Standard accessories | Test leads, batteries, point contact temperature probe | |
| Standard individual packing | Box, carrying bag, English manual | |
