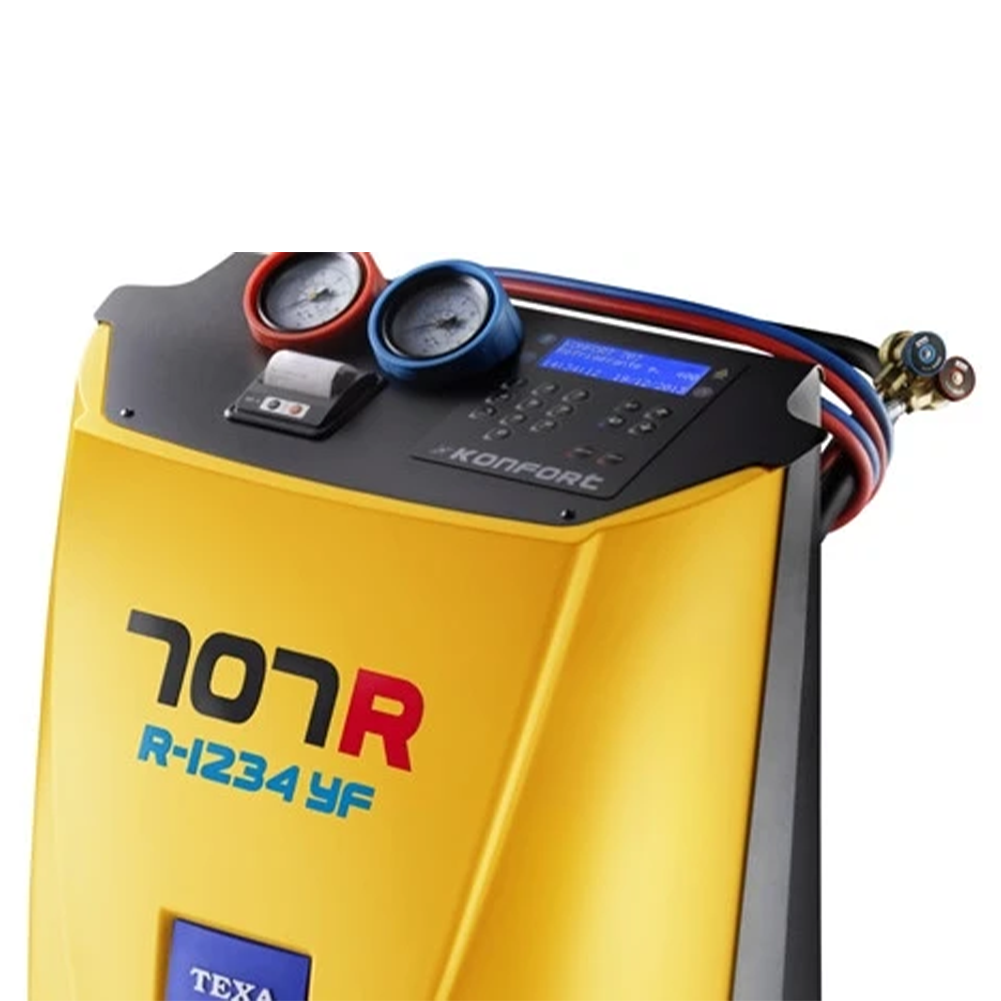

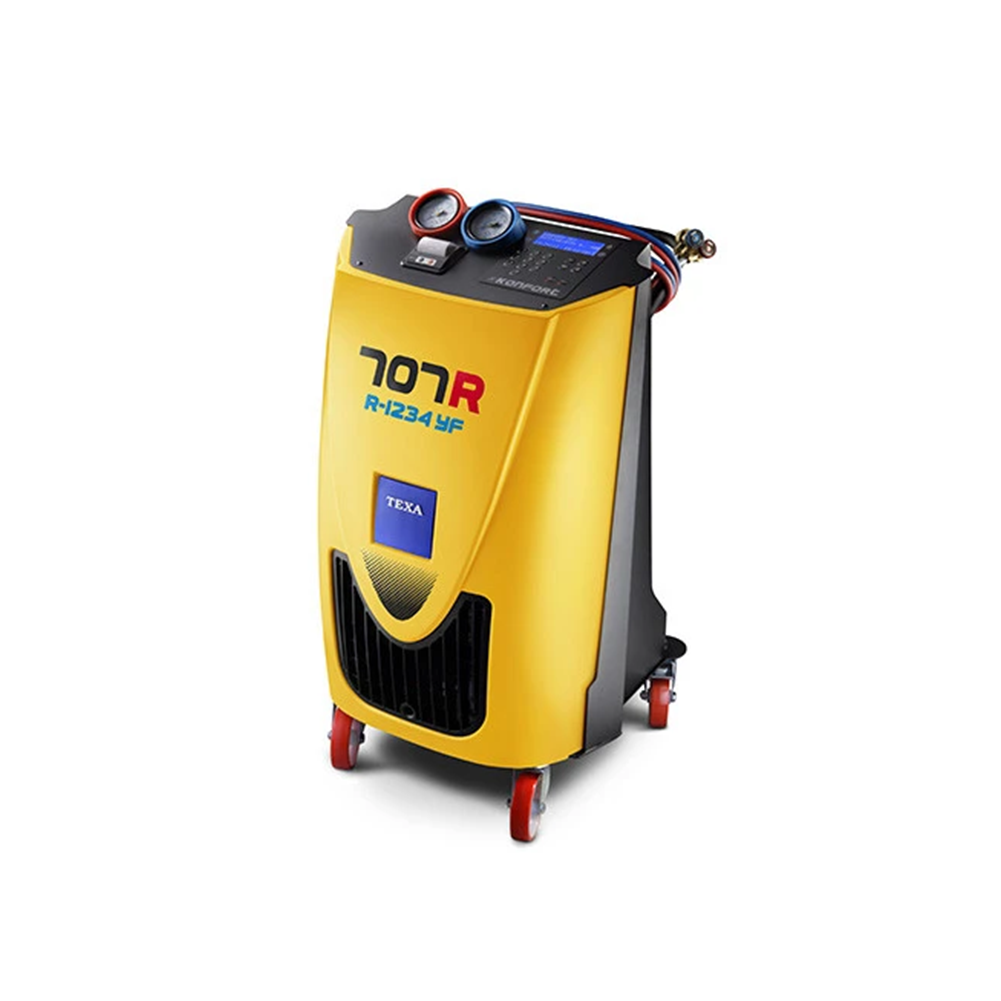

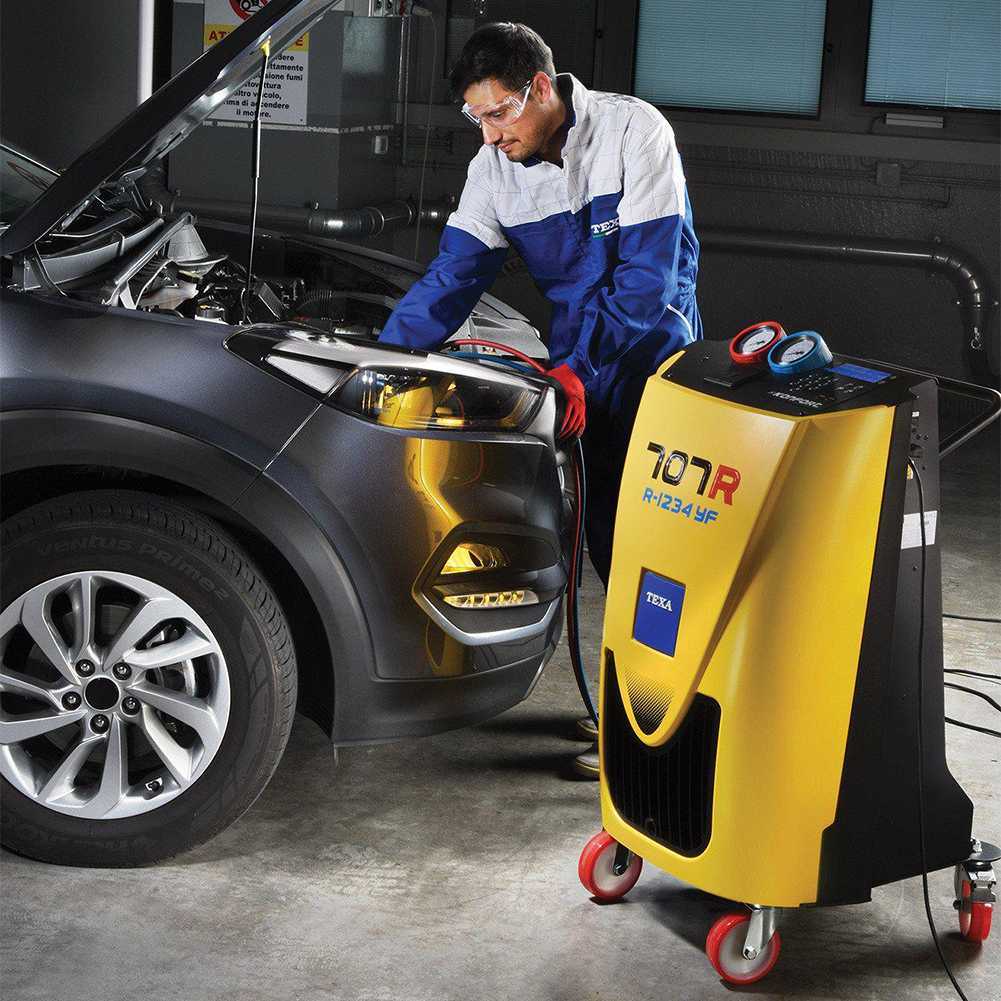

Texa Konfort 707r Recharge Maintenance Station R1234yf W/ Refrigerant Identifier
SIMPLE BUT EFFECTIVE, FOR ALL OPERATIONS INVOLVING R1234yf REFRIGERANT
The KONFORT 707R is TEXA’s latest recharge and maintenance station for vehicle air conditioning systems. It is designed and made for maximum simplicity and effectiveness in servicing systems filled with the new R1234yf refrigerant, mandatory within the European Community since January 2011 and now increasingly common.
This innovative recharge station stands out from the competition for its exceptional characteristics.
It incorporates a Dehydrator Filter that lets you perform up to 300 recharges, a scales locking system to avoid loss of calibration between operations and an intuitive alphanumeric keyboard that is far easier to use than the classic cursor type interface.
Other important features of the KONFORT 707R are its convenient height and four-castor wheels, designed to let you easily perform all tasks. The KONFORT 707R also records its services and can provide details of all past maintenance operations.
Key Features

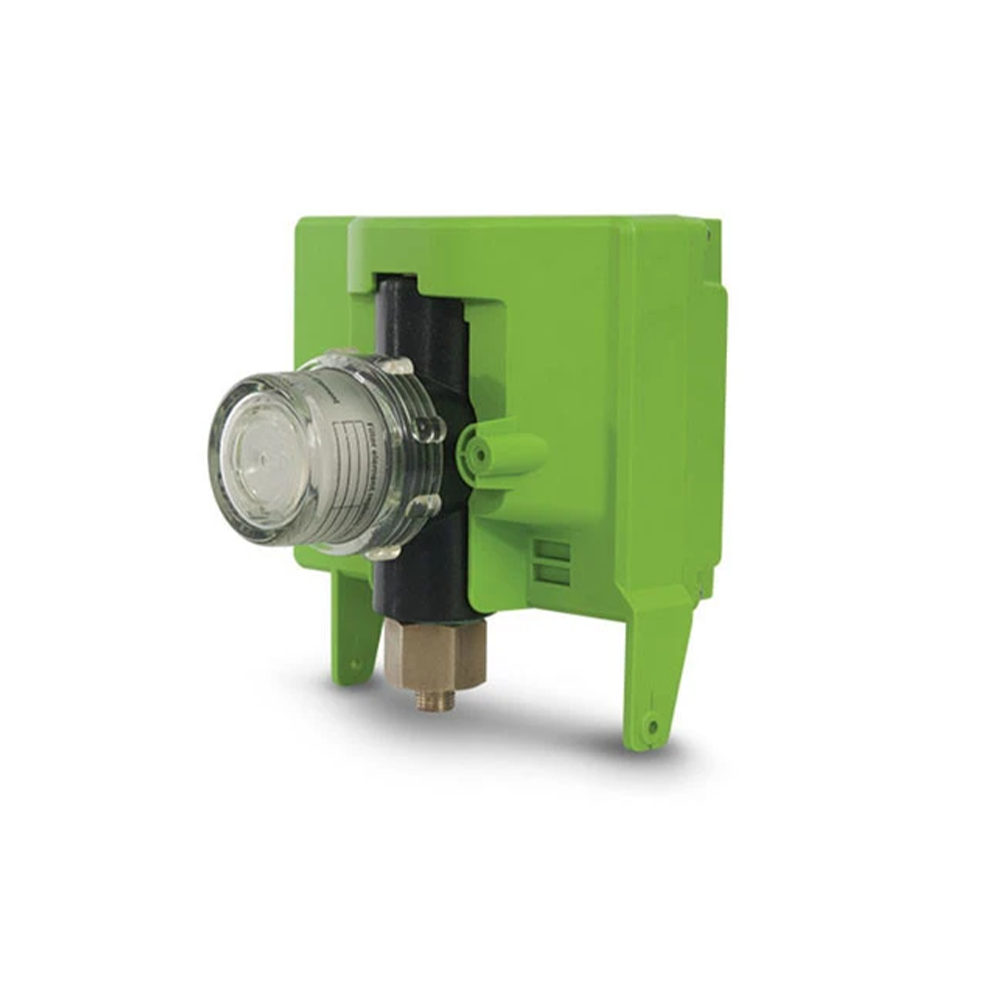

TEXA’s refrigerant identification system uses NDIR (Non-Dispersive Infrared) technology. It has been developed based on a decade of experience producing exhaust gas analysis systems recognised as the best the market can offer regarding accuracy and build quality.
TEXA is the only European company and the second worldwide to develop and produce a refrigerant identification kit, especially for air conditioning service stations.
Special care has been taken to ensure that the surrounding environment cannot influence test results, e.g., by the airborne hydrocarbon vapours and exhaust gases so often present in the garage environment.
Development of the system took over a year. Particular attention was paid to the algorithms identifying refrigerant types R134a and R1234yf. The TEXA system recognizes these two refrigerants and ensures their purity.
Specifications
- Compatible with R1234yf
- High visibility, 4x20 character, blue backlit LCD screen
- DATABASE and service management by SD card
- 10 kg tank
- Single-stage vacuum pump
- Charging accuracy +/- 15gr
- High-efficiency refrigerant recovery (over 95%)
- Scales locking system
- Automatic oil injection (timed function)
- Automatic maintenance service management
- Functioning modes:
- DATABASE
- CUSTOMIZED SERVICE
- MY DATABASE
- Multi-language software
- Automatic compensation for the length of recharging lines
- Automatic maintenance alarm
- OPTIONAL
- Thermal printer, refrigerant identifier kit.
