Mastercool
Mastercool Expander Kit Hydra-swage Tube - Hydraulic -7 Heads 71600-a
$1,240.16
$1,550.00

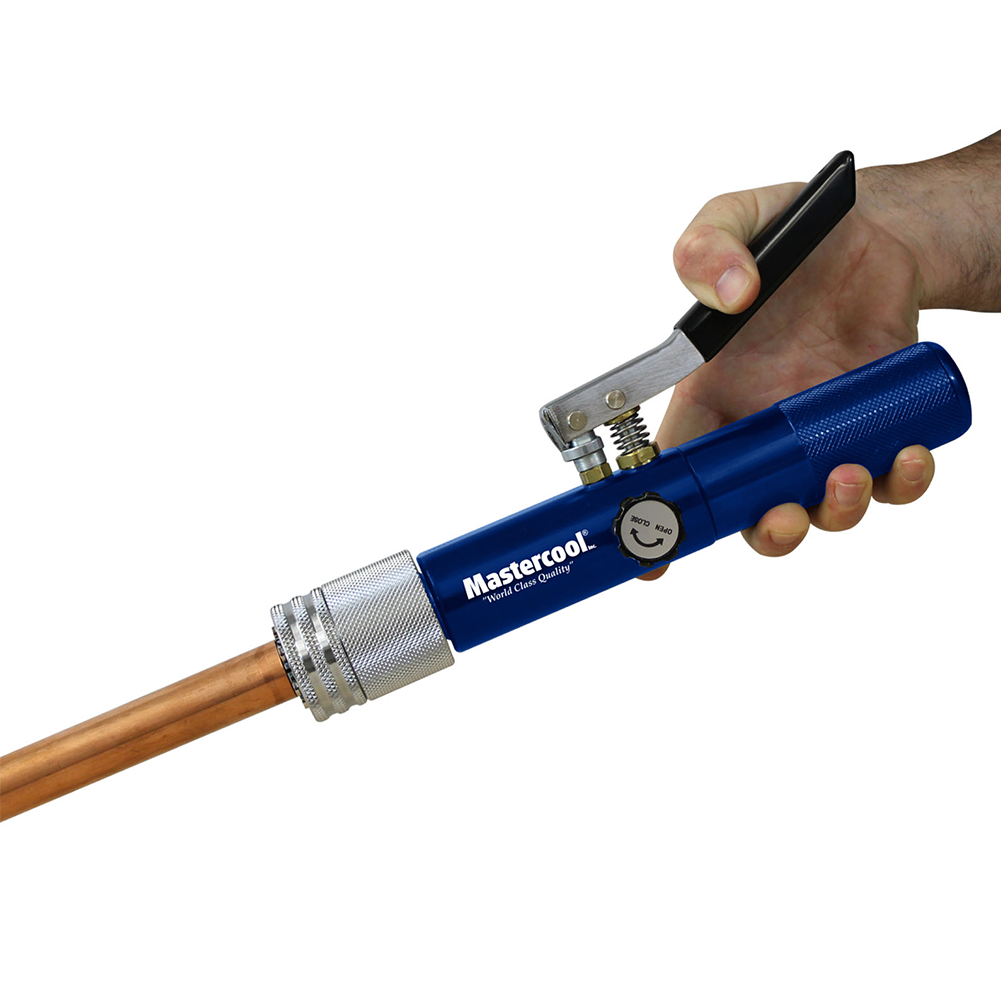

The Mastercool Expander Kit Hydra-Swage Tube - Hydraulic - 7 Heads 71600-A is a hydraulic tool kit designed to expand copper, aluminum, and soft steel tubing used in HVAC and refrigeration systems. The kit comes with seven swage heads that can be easily changed depending on the size of the expanded tubing. The hydraulic pump provides effortless and accurate tubing expansion, ensuring a tight and secure fit between the components.
Fabricates and expands copper, aluminum, and soft steel tubing using hydraulic power.

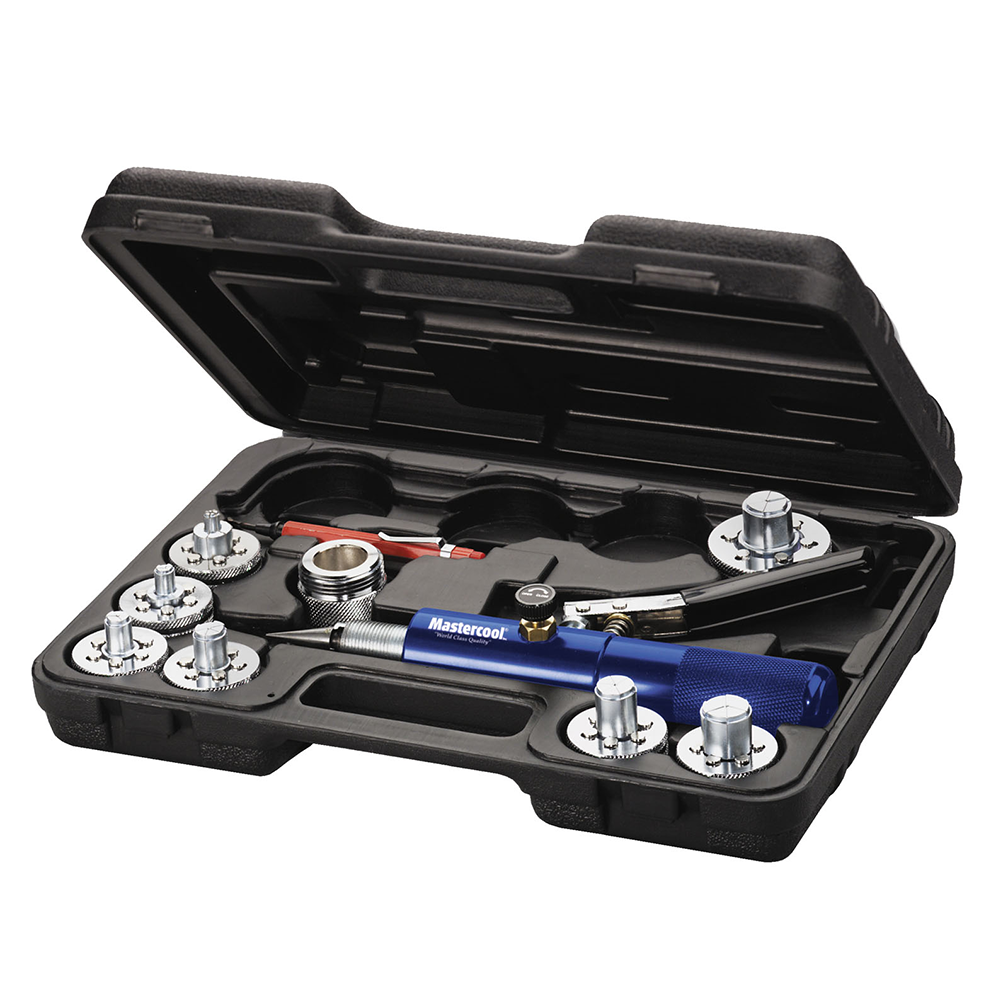

(7-HEAD KIT) consists of expander heads 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, Hydra-Swage 71601, Small Adapter and Inner-Outer Reamer. (Patent No. 6,619,099)
Replacement Parts
- 71601-A: Hydra-Swage
- 71601-D: Adapter for 71601
- 71685: Inner – Outer Reamer
- 71600-PB: Molded Box for 71600, 71600-M & 71650
- 71600-03: Expander Head, 3/8” O.D. Tubing
- 71600-04: Expander Head, 1/2” O.D. Tubing
- 71600-05: Expander Head, 5/8” O.D. Tubing
- 71600-06: Expander Head, 3/4” O.D. Tubing
- 71600-07: Expander Head, 7/8” O.D. Tubing
- 71600-08: Expander Head, 1” O.D. Tubing
- 71600-09: Expander Head, 1 1/8” O.D. Tubing
- 71600-11: Expander Head, 1 3/8” (35 mm) O.D. Tubing
- 71600-13: Expander Head, 1 5/8” O.D. Tubing
- 71600-17: Expander Head, 2 1/8” (54 mm) O.D. Tubing
