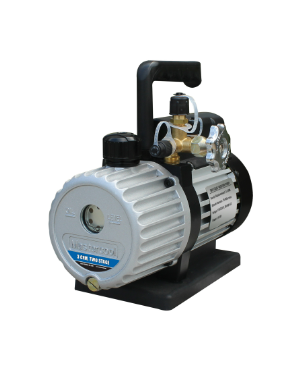

Mastercool 7.5 CFM Two Stage Vac Pump

178 lit/min, 213 lit/min

Product Description:

A good quality vacuum pump is an integral tool for complete A/C service. Mastercool vacuum pumps are durable and time tested. They stand up to the most grueling conditions and will provide years of reliable service. Mastercool offers a complete selection of pumps. Regardless of your service requirements, Mastercool has a model for your applications.

This model is the choice for medium sized and larger systems (5 lb and above capacity). The 1/2 horsepower motor makes cold condition start up quick and easy. This two stage pump features a manifold valve to isolate it from the system and three inlet ports: 1/4” FL, 3/8” FL and 1/2” ACME (for automotive R134a systems).

SPECIFICATIONS:

• No. of Stages: 2
• Free Air Displacement: 178 lit/min, 213 lit/min
• Ultimate Vacuum: 25 Microns
• Pump Motor: 1/2 HP
• Pump Speed: 1425/1725 RPM
• Electrical Specs: 220 V/50 Hz, 220 V/60 Hz
• Shipping Weight: 35.5 lbs (16 kg)
• Dimensions in cm: 41 x 15.5 x 27.5 x 24

SERVICE INFORMATION:

• Oil Capacity: 24 oz / 708 ml
• Replacement Cartridge: 90167-R
• Seal Service Kit: 90062-11-SEAL
