Inficon
Inficon Gas-Mate Combustible Gas Leak Detector
The INFICON raises the bar on combustible gas detectors with GAS-Mate, the ideal tool for locating leaks in forming gas, flammable refrigerant, or combustible heating and appliance applications. GAS-Mate is also intrinsically safe, so you can leak-check with confidence.
GAS-Mate outperforms other models with twice the sensitivity of many competitors – down to 5 ppm methane, the main component of natural gas. GAS-Mate also detects many other combustible gases, such as ammonia, propane, ethanol, and hydrogen sulphide.
No calibration is required for GAS-Mate or its field-replaceable sensor. Turn the unit on, allow it to warm up for a few seconds, and it is ready to pinpoint any gas leaks present quickly.
To prove that GAS-Mate has the performance and durability for your job, it carries an industry-leading, 3-year over-the-counter replacement warranty – three times what most other manufacturers offer.
Safely detect flammable refrigerant and combustible gas leaks! … GAS-Mate outperforms other models with twice the sensitivity of many competitors GAS-Mate outperforms other models with twice the sensitivity of many competitors – down to 5 ppm methane
FEATURES:
- Sensitive to 5 ppm methane
- Also detects natural gas, forming gas, propane, butane, cyclopentane, ethane, ethanol, isobutane, and ammonia.
- Great for flammable refrigerants like R290, R600a, and R441a!
- Detects forming gas (95% nitrogen, 5% hydrogen)
- Auto zeroing for ignoring background gas levels in a leak test area
- Small sensor and probe tip permit leak checking in tighter places
- Certified intrinsically safe by MET Laboratories for use in combustive/explosive environments
- Multiple LEDs and variable intensity audio alarms indicate leak strength
- Adjustable sensitivity helps pinpoint leaks fast.

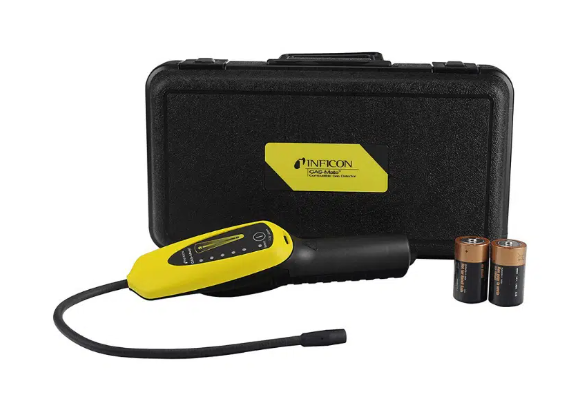

INCLUDES:
- Gas Leak Detector 718-202-G41
- 2 x ‘D’ alkaline batteries
- hard plastic carrying case
- 36-Month Warranty
SPECIFICATIONS:
- Sensitivity to Methane: 5ppm
- Leak Indicators: Variable flashing yellow LED and audible tick rate dependent on gas concentration
- Power Source: 2 x ‘D’ alkaline batteries
- Battery Life: 60 hours
- Probe Type: Chrome-plated flexible metal
- Probe Length: 43cm
- Control Panel: 3 position switch: Off, High & Adjustable sensitivity
- Slide Switch: Sensitivity
- Operating Temperature Range: 0°C to 45°C
- Storage Temperature Range: -10°C to 60°C
- Dimension: 224mm x 51mm x 76mm
- Weight (with batteries): 700 grams
- Certification: CE UL913 Class 1, Division 1, Group A, B, C & D, Met Laboratories Listing #E112145
- Country of Origin: USA
