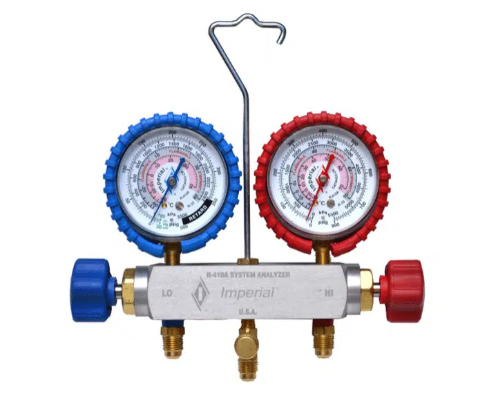

Imperial 516CC 2-Valve / 4-Port Manifold For R410a R32

The Imperial 516CC  service manifold is designed for professional air conditioning and refrigeration technician, demanding quality and reliability. It is part of Imperial's 510 series of highly popular manifolds.

Suitable for use with R410A & R32 refrigerant, the Imperial 516CC service manifold consists of a colour-coded heavy-duty, aircraft-grade anodised aluminium body, with low and high side gauges, clearly marked in different pressure units, including kPa, PSI, and °C for ease of referencing when calculating superheat and subcooling. Each gauge is protected by a colour-coded rubber boot (blue for the low side and red for the high side) and is non-flutter to make reading accurately easy for the user and a longer life thanks to the reduced vibration.

The Imperial 516CC manifold has a needle valve design for full-flow porting to ensure faster charging and evacuation. Ergonomic soft touch and colour-coded valves make it simple for the user to operate, even with oily fingers requiring only fingertip pressure to seat correctly. The dual O-ring design gives the seals trouble-free performance and longer life. The built-in swivel hanger allows the manifold to be hung for hands-free use. In addition to the three hose ports, the 516 includes a fourth port, giving an additional hook-up for using a micron (vacuum) gauge, vacuum pump, adding dye or oil, and purging non-condensable.

FEATURES:

• Dual O-Ring Seal – For high-pressure valve use
• Electroless nickel plate stem to reduce wear and galling
• Designed for use with R410A & R32 refrigerants
• Ergonomic colour-coded handles give a non-slip surface even with oily hands
• Swivel hanger for hands-free use
• Fourth auxiliary port for connecting a micron gauge, adding oil, purging, etc.
• Engineered and manufactured in the USA for quality and reliability
• Includes PolarShield® Hi-Performance Hoses.

INCLUDES:

• 1 x IMP-516CC Manifold
• 3 x 36″ hoses
• Clamshell Packaging
• Limited Lifetime Warranty.

SPECIFICATIONS:

• Body Type: 2-Valve 4 Port Manifold
• 5/16″ fittings
• Refrigerant Scales:  R410A, R32
• Hoses: PolarShield with 5/16 fittings, 800 PSI working pressure, 4,000 PSI burst pressure
• Pressure Scales: PSI / Kpa / C
• Package Dimensions: 18 x 18 x 12 cm
• Package Weight: 2kg.
