Imperial 120 Series Flaring Kits
$328.95

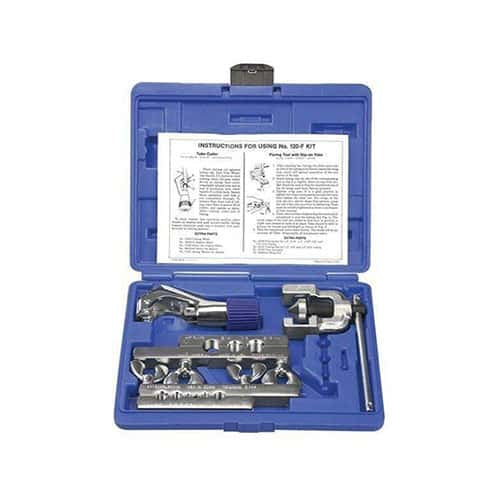

Imperial provides almost everything to perform your Flaring & Swaging needs with flaring kits available in 37° & 45° options.
Description
- Two flare dies that accommodate the following tubing O. D. sizes: 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″

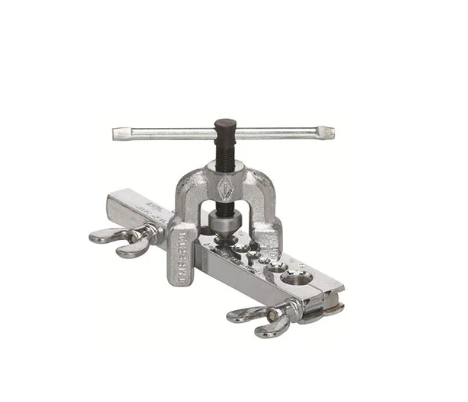

- Flaring tool: 45 degrees. Steel, Cone-type Smooth Swivel-Type with hardened Steel Chrome-Finished Steel Handle
- Tubing cutter with a reamer.
SPECIFICATIONS:
| PART NO. | TUBE CUTTER | FLARING TOOL | RANGE OF FLARING TOOL (in.) | WEIGHT (lbs.) |
| IMP-120F | TC-1000 | 375-FS (45°) | 1/8, 3/16, 1/4, 5/16, 3/8, 57/16, 1/2, 5/8, 3/4 O.D. | 2.75 |
| IMP-122FA | TC-1000 | 437-FB (37°) | 3/16, 1/4, 5/16, 3/8, 1/2, 5/8 O.D. | 2.75 |
| IMP-124FA | TC-1000 | 500-FC (45° Rol-Air™) | 3/16, 1/4, 5/16, 3/8, 1/2, 5/8 O.D. | 2.75 |
