Hilmor

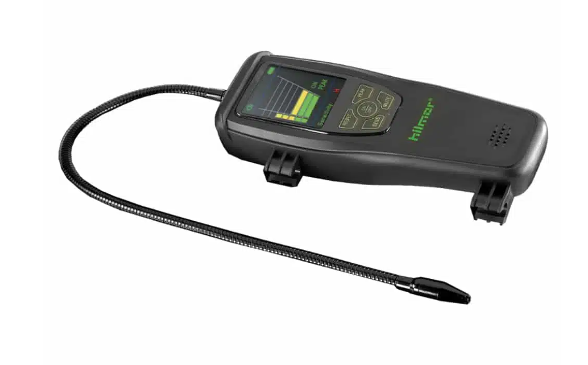

Hilmor LDIR150 Infrared Refrigerant Leak Detector
TheHilmor LDIR150 Infrared Refrigerant Leak Detector features a number of advanced features, including a high/low sensitivity setting, a visual and audible alarm, and a flexible probe for easy access to hard-to-reach areas. The detector also has a long battery life, making it a reliable tool for extended use in the field.
TheHilmor LDIR150 Infrared Refrigerant Leak Detector is a valuable tool for HVAC professionals and refrigeration technicians, providing an efficient and accurate method for detecting refrigerant leaks in air conditioning and refrigeration systems. With its advanced features and durable construction, it's an essential tool for any professional who needs to identify and repair leaks in HVAC and refrigeration systems.
FEATURES:
- Extra Confidence: Built to last with a 10-Year sensor life.
- Easy-to-Read: TFT LCD screen provides clear visual confirmation of the leak location
- Added Convenience: Audible and visual notification for leak detection
- Added Versatility: Works on all halogenated refrigerants.
INCLUDES:
1 x Hilmor LDIR150 Infrared Refrigerant Leak Detector, 10 x Filters, 1 x Charger, 1x Cable, 1x Accessory case.
SPECIFICATIONS:
| Model Number | LDIR150 |
| Product Dimensions | Length: 7.9″, Width: 3.3″, Height: 1-1/2″, Weight: 14.6 oz. |
| Specifications | Sensitivity – (0.14 oz/year) 4 grams/year |
| Sensor Type | Infrared Spectrum Absorbtion |
| Sensor life | 10 years (Typical) |
| Response Time | 3 Seconds |
| Warm-Up Time | 30 Seconds |
| Operating Environment | 32°F (0°C) to 104°F (40°C) at < 75% RH (non-condensing) 32°F (0°C) to 104°F (40°C) at < 75% RH (non-condensing) |
| Display Method | TFT LCD Display |
| Notificatoin Mode | TFT LCD Display & Audio |
| Battery | Built-in rechargable Lithium Battery 3.7V, 3,000mAhBuilt-in rechargable Lithium Battery 3.7V, 3,000mAh |
| Battery Saver | Automatic Shutdown after 10 Minutes of inactivityAutomatic Shutdown after 10 Minutes of inactivity |
| Working Time | 6 Hours |
| Charging Time | 4 hours |
| Certifications | SAE J1627, SAE J2791, SAE J2913, EN14624: 2012 |
| Refrigerants Detected | It will detect all halogenated (including Chlorine or Fluorine) refrigerants. This includes, but is not limited to: CFC: R12, R11, R500, R503 HCFC: R22, R123, R124, R502 HFC: R134A, R404A, R410A, R407C CH: R600A |
