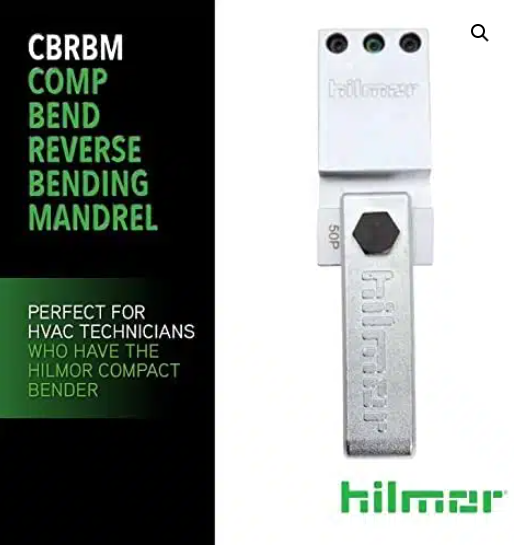

Hilmor’s new Reverse Bending Attachment enables technicians to bend tubes outward, allowing them to do more in cramped spaces. The Reverse Bending Attachment attaches to the Hilmor Compact Bender for precise angle bends of up to 90° on 1/4’’ to 7/8’’ soft tubing.

FEATURES:

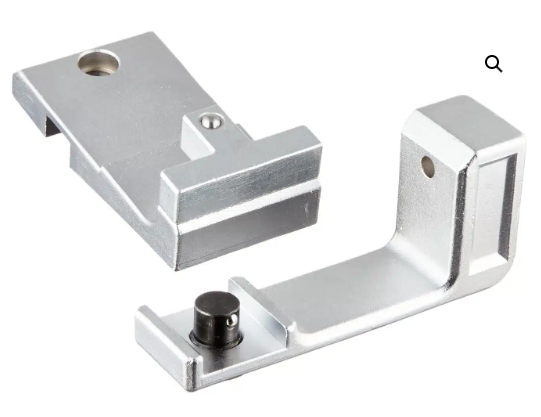

• Bender attachment: Attach this two-piece reverse bender to the Hilmor Compact Bender 1926598 (sold separately)

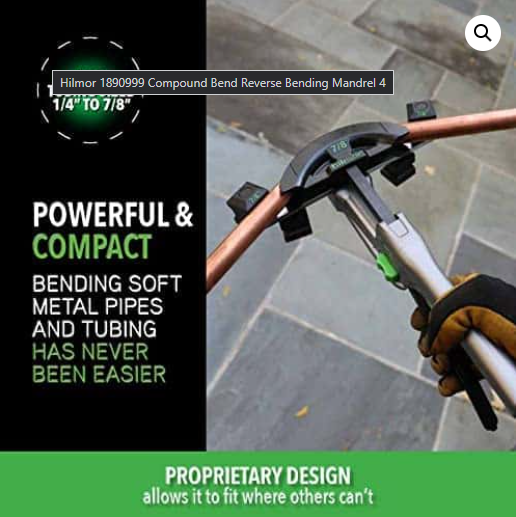

• Powerful and compact: Bending soft metal pipes and tubing has never been easier. The proprietary design allows it to fit where others can’t, while not compromising on the capability or quality of the resulting bend
• Easy to setup: Place universal crossbar and desired colour-coded mandrel on the handle, snap into place, click pumping lever into the ready position, and place tubing between bar and mandrel
• One-handed operation: The ratcheting mechanism and innovative release lever allow for bending with one hand. Pump lever until the desired angle is achieved, up to 90degrees. Simply press release trigger above lever to retract mandrel for easy tube release, ensuring no damage to the metal.

INCLUDES:
1 x Reverse bending mandrel.

SPECIFICATIONS:

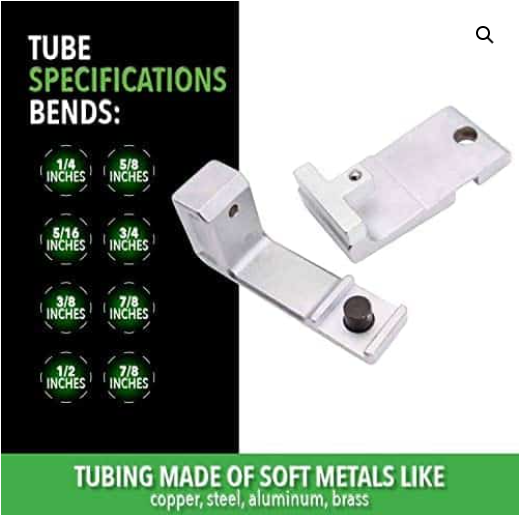

• Tube sizes: 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″
• Tube materials: Soft copper, steel, aluminium, brass.
