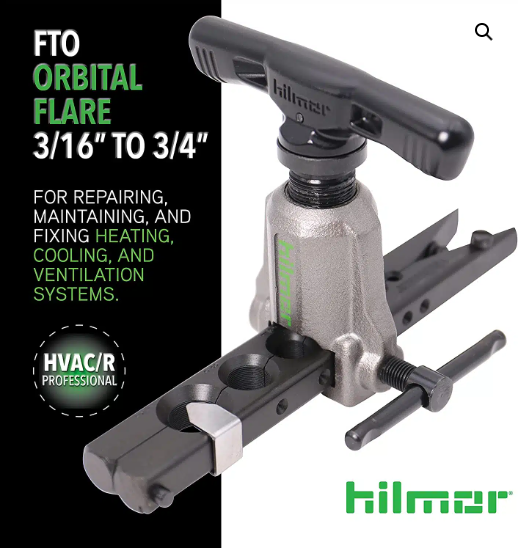

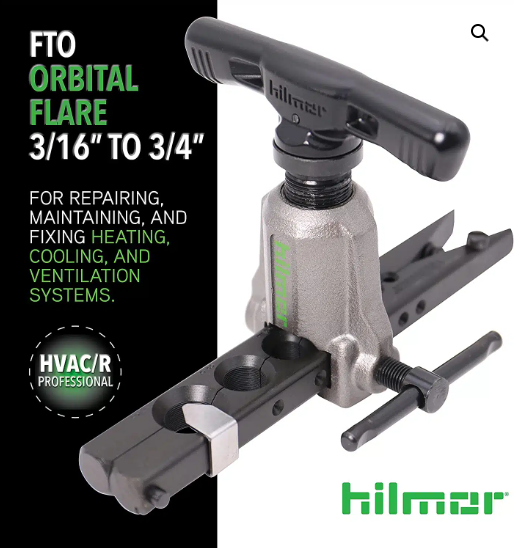

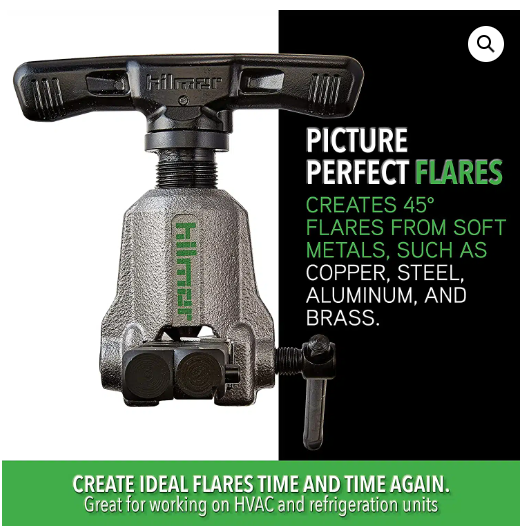

Hilmor 1838952 Orbital Flare 3/16” To 3/4”
$349.95
$437.95

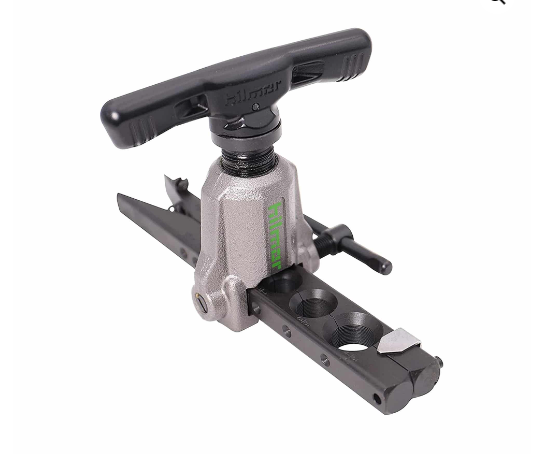

The Hilmor Orbital Flare was designed to produce quality flares – again and again. It has an off-centre mounted cone that spins on an axis to make sure it uniformly shapes the tube. Plus, it’s equipped with the kind of features you need – a spring-loaded block to firmly grip the tube, a tube-stop arrow for precise height and positioning (goodbye, nickel), and ball detents for easy flaring yoke alignment. It even has a clutch mechanism that stops the flaring when the job is done to eliminate cracking the tube.
FEATURES:
- Precise Flares, Every Time: An off-centre mounted cone spins on an axis to effectively produce quality flares
- No Cracked Tubes: A clutch mechanism stops the flaring when the job is done

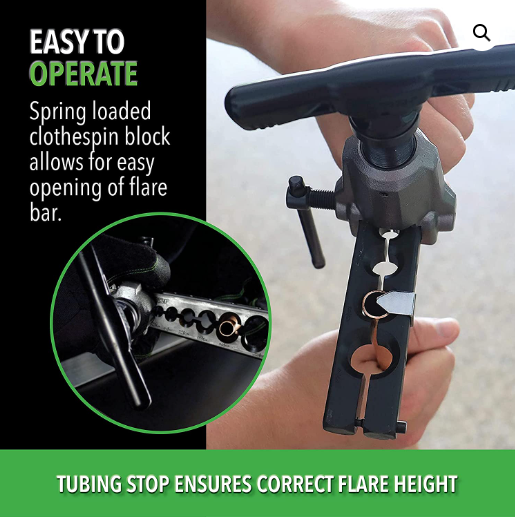

- Simple Setup: A clothespin-inspired, spring-loaded block grips the tube securely

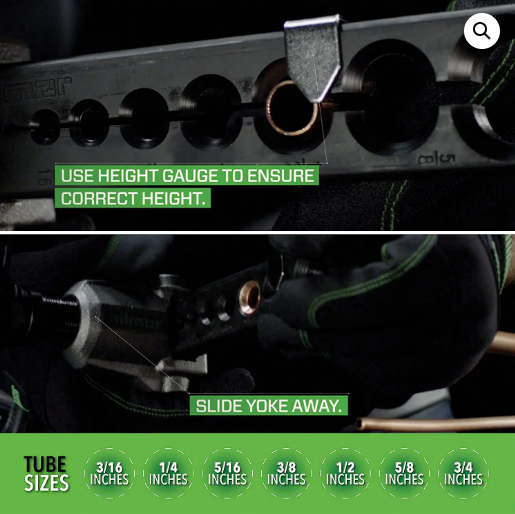

- Easy to Position: A tube-stop arrow slides to set correct height and positioning, while ball detents allow for easy flaring cone alignment.
INCLUDES:
1 x Orbital flare.
SPECIFICATIONS:
| Item Number | 1838952 |
| Product Description | FTO |
| Tube Sizes (O.D.) | 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″ |
| Weight: | 3.75 lbs. |
| Product Dimensions | Length: 8.5″, Width: 4.6″, Height: 5.3″ |
| Tube Materials | Soft – Copper, Steel, Aluminum, Brass |
| Flare Type | 45° |
