Fieldpiece

Fieldpiece Top Fridgie Pack

Name: Fieldpiece Top Fridgie Pack
Brand: Fieldpiece
Price: 1879.99 AUD
Availability: InStock

$1,879.99 ~~$2,349.99~~

This Fieldpiece R32 Premium Kitt for air conditioning and refrigeration includes:

A great pack to get the job done. There is enough here to measure for your system analysis.

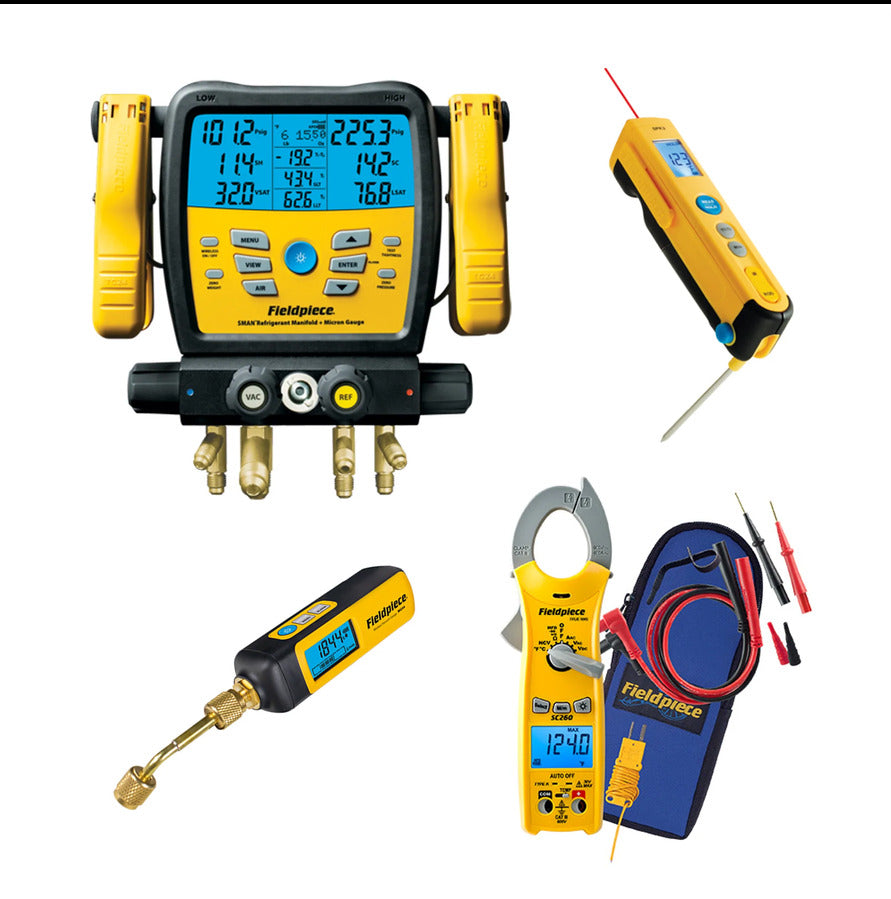

WHAT'S INCLUDED

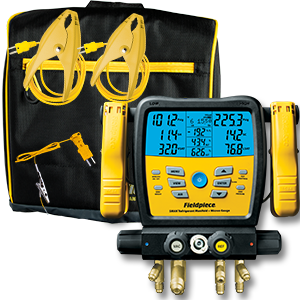

1 x Fieldpiece Wireless 4-Valve Digital Manifold - SM480vINT

SM480vINT
2 x TC24 Wired Type-K Pipe Clamp thermocouple
1 x ATA1 Type-K Bead Thermocouple with clip
1 x ANC11 Padded Drawstring Case

1 x Fieldpiece Wireless Probe Vacuum Gauge with LCD Display - MG44

Micron Vacuum Gauge - MG44
Reversible Coupler Fitting
Operator's Manual
2 x AA Alkaline Batteries

1 x Fieldpiece TRMS Combination Mini Clamp Meter - SC260

SC260 Meter
ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath
ATB1 Wrap Tab Type K Thermocouple
Velcro Strap
9V Battery
ANC4 Padded Case

1 x Fieldpiece Probe and IR Temperature Pocket Style Tool SPK3

fieldpiece_wireless_4_valve_digital_manifold_w_micron_gauge_sm480vint

FEATURES AND CAPABILITIES

Fieldpiece Wireless 4-Valve Digital Manifold - SM480vINT

Data Logging

Stores up to 9 jobs internally
Easy download via USB port
Displays % free storage space before logging begins
Logs up to 7 days (168 continuous hours)

Tightness Test built-in feature

Check for leaks after repairs or installations
View pressure differential over time
Timer tracks duration of test
Temperature compensated with SL temp to avoid false positives

Customisable Menu

Adjust auto power off duration
Adjust backlight duration
Set high and low vacuum alarms
Select each unit of measurement individually

Receives Wireless Measurements
Add Job Link Tools to your arsenal and get live readings directly on the SMAN manifold screen from the Job Link Psychrometers (JL3RH), Job Link Pipe Clamps (JL3PC), and SRS3 Refrigerant Scale.
Place pipe clamps in the perfect location. Monitor and record live refrigerant usage for precise recovery, charging, and documentation. View live air measurements and calculations while making adjustments.

Increase Professionalism with Job Link® System App
Streamline and simplify your call even further with the Job Link System App. See your measurements up to 100 metres away on your mobile device. Document your work and provide professional reports, including refrigerant weight usage, by simply connecting to the Job Link System app. Helps to reduce call-backs and increase profits.

View measurements on SMAN and/or in Job Link App
Monitor and record refrigerant weight
Direct 100 meter wireless range (no transmitter needed)

Fieldpiece Wireless Probe Vacuum Gauge with LCD Display - MG44

mg44_vacuum_gauge_wireless_probe_with_lcd

The NEW MG44 Micron Gauge Impact and Weather Resistant designed for the field

Confidently perform evacuations with a reliable, leak-proof seal.
Reversible angled coupler and new cylindrical design are easier to fit into tight spaces.
There are three ways to use:

View from up to 300 metres away (line of sight) via the Job Link® mobile app
View on the Fieldpiece SMAN™ Refrigerant Manifold SM380INT or SM480INT
View direct from the MG44’s display.

Three ways to view the new larger backlit LCD screen is easier to read and its dot-matrix display shows more info including:

bar graph
rate
rate meter

IP54-rated weather-resistant.
Rugged over-molded construction for extreme impact resistance.
Range 50 to 25,000 microns
Units of measure: microns (µm) of mercury, mmHg, mbar, mTorr, Torr, and Pascals

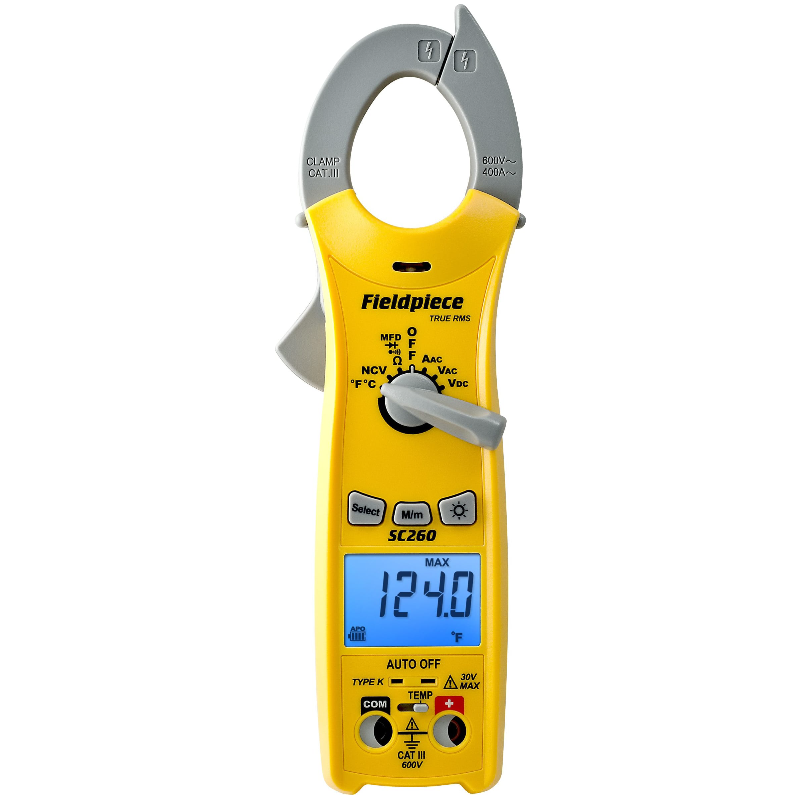

Fieldpiece TRMS Combination Mini Clamp Meter - SC260

The SC260 Compact Clamp Meter is a great meter for testing HVACR electrical measurements. It includes True RMS measurements so you can test variable frequency drives more accurately, along with temperature in both Fahrenheit and Celsius. The SC260 also features a backlight display for reading measurements in poorly lit places and a sturdy swivel magnet for hands-free measurements.
