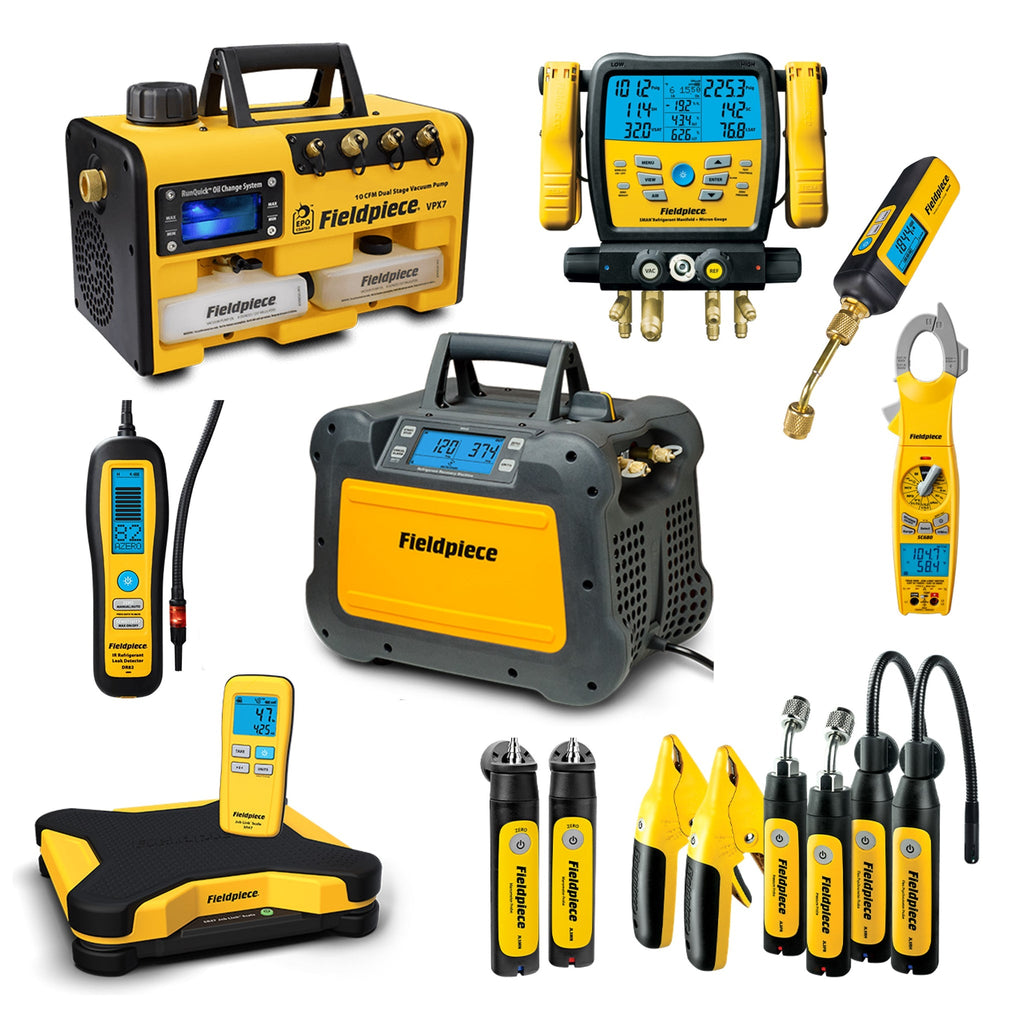

Fieldpiece Advanced HVAC Kit

This HVAC-R exclusive Advanced HVAC Kit for air conditioning and refrigeration includes:

• 1 x Fieldpiece VPX7 283 L/M 10 CFM A2L Certified 2 Stage Vacuum Pump - VPX7INT
• 1 x Fieldpiece Recovery Unit - MR45INT
• 1 x Fieldpiece Wireless 4-Valve Digital Manifold with Micron Gauge - SM480vINT
• 1 x Fieldpiece Infrared Refrigerant Leak Detector - DR82
• 1 x Fieldpiece Job Link Charge & Air Test Bluetooth Probe Kit - JL3KH6
• 1 x Fieldpiece Job Link Wireless Manometer Kit - JL3KM2
• 1 x Fieldpiece Wireless Probe Vacuum Gauge with LCD Display - MG44

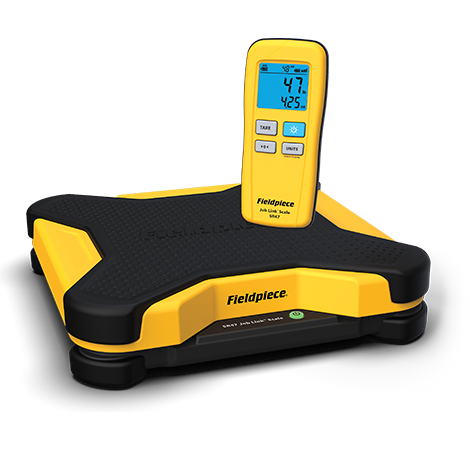

• 1 x Fieldpiece Wireless Electronic Refrigerant Scale 114KG - SR47
• 1 x Fieldpiece True RMS AC/DC Wireless Power Clamp Meter - SC680INT

FEATURES AND CAPABILITIES

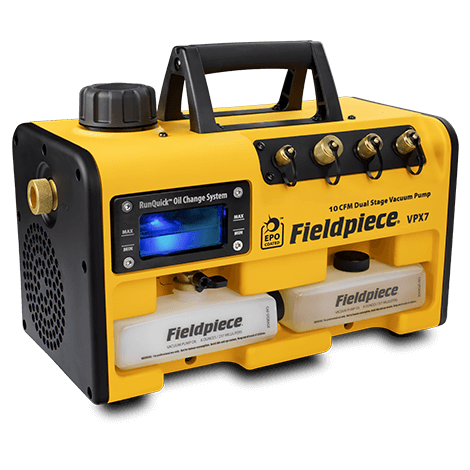

Fieldpiece VPX7 283 L/M 10 CFM A2L Certified 2 Stage Vacuum Pump - VPX7INT

The NEW Fieldpiece VPX7INT high-efficiency Vacuum Pump with RunQuick™ Oil Change System - No Fuss - No Mess

• 10 CFM (283 l/m)flow rate with 15 microns ultimate vacuum
• 3/4 HP DC motor
• RunQuick™ Oil Change System offers on-the-fly oil changes in seconds
• Extra oil bottle storage
• Includes 2 x 237ml Oil filled RunQuick Oil Cartridges
• Backlit oil reservoir to view condition of oil and system
• Water resistant to withstand direct rain
• Patented lightest weight pump
• Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2” for easy hose connections
• Sturdy base stays upright
• Small footprint – 1,346 cubic inches
• Quarter-turn gas ballast with LED indicator
• Convenient, removable cord storage
• Error messages: indicate wrong power source or other errors
• Suitable for A2L class refrigerants
• R32, R1234YF, R1234ZE, R512A, 419B, 439A & other

WHAT'S INCLUDED

• VPX7INT Vacuum Pump

• 2 x 8oz RunQuick Oil Containers (Filled)

• Operator’s Manual

SPECIFICATIONS

Flow Rate	10 CFM (283 l/m)
Oil Capacity	8oz (237mL)
Oil Compatibility	Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication)
Fieldpiece part numbers	OIL8X3, OIL32, OIL128
Oil Backlight	Blue LED
Oil Drain	Ball valve
Port Sizes	(1) 1/4”, (2) 3/8”, (1) 1/2”
Compressor	Rotary vane, two stage
Motor	3/4 HP Brushless DC
RPM	2500
Power Source	240 VAC @ 50 Hz 1 phase
Nominal Current Draw	6.0 AAC
Ultimate Vacuum at Input Ports	15 microns
Operating Environment	-1.1°C to 50°C
Dimensions	201 mm x 296 mm x 406 mm
Weight	11.1 kg

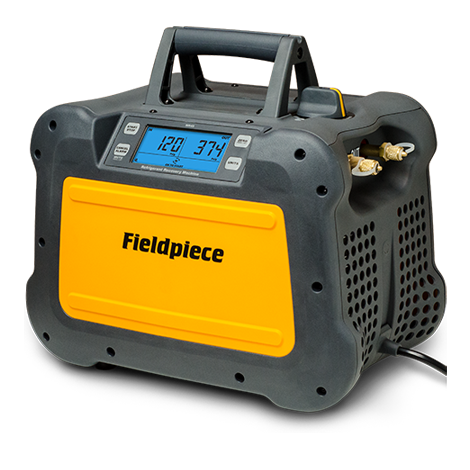

Fieldpiece Recovery Unit - MR45INT

Refrigerant Recycling has never been easier or faster with the MR45INT Recovery Machine



Dual cylinder compressor with long life and low friction with ceramic lined cylinders

Auto Shut Off when -10 Kpa reached

Protected from voltage drop (runs as low as 190 VAC)

Single dial self purge

Twice the RPMs (3,000) and twice the horsepower (1HP - 0.745kW) with DC Motor

Extra large condenser cools faster, especially on hot days

Light Weight at only 10 Kgs

Water & Rain resistant

Easy access ports

Easy hose connections and built-in power cord storage

Large backlit display with status messages

UL Verified to Section 608 of EPA Clean Air Act

UL Verified to AHRI Standard 740

A2L ready including R32

Also can be used for transferring SF6 (sulfur hexafluoride) a non-flammable gas used in electrical components.

WHAT'S INCLUDED

• MR45 Refrigerant Recovery Machine

• 10 Extra Mesh Screens for Input Port

• 3 Extra O-ring for Input Port

• Operator’s Manual

SPECIFICATIONS

Display	2 x 10000 count LCD with status messages
Backlight	Blue color
Measurement rate	3.3 times per second, nominal
Input Port Pressure Sensor Range	-30” Hg to 600 psig
Output Port Pressure Sensor Range	-30” Hg to 600 psig
High Pressure Cutoff	558 psig, nominal
Resolution and Units	1 psig (1” Hg), 0.05 bar (2 cmHg),  0.01 Mpa (2 cmHg), 5 Kpa (2 cmHg)
Pressure Sensor Accuracy	± 0.5 “ Hg (Vacuum)  ± (0.6% of reading +2 psig)
Final Recovery Vacuum	14.9” Hg
Compressor	Twin cylinder reciprocating (oil-less)
DC Motor	1 HP (variable smart speed)
Power Source	220 - 240 VAC @ 50 Hz 1 phase
Max Current Draw	7.0 Amp
Valve	Single dual-route ball valve
Input Port Filtration	9 mm mesh screen, stainless
Dimensions	376 mm x 250 mm x 344 mm
Weight	10 Kgs
Operating Environment	32°F to 122°F (0°C to 50°C)
Storage Environment	-4°F to 140°F (-20°C to 60°C)
Approved Refrigerants	R12, R12345YF, R134A, R22, R32, R401A (MP39), R401B, R401C, R402A, R402B, R404A, R407A, R407B, R407C, R407D, R408A, R409A, R410A, R412A, R500, R502, R507, R509

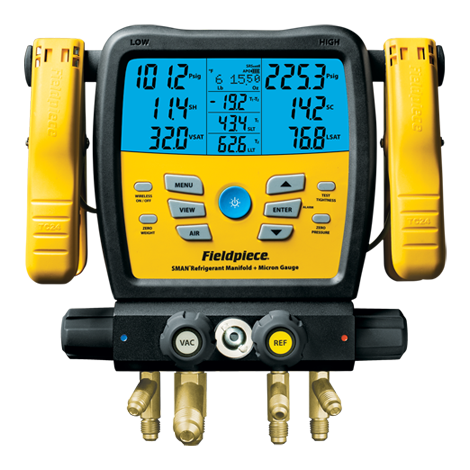

Fieldpiece Wireless 4-Valve Digital Manifold with Micron Gauge - SM480vINT

The newly designed Fieldpiece Manifolds are stronger and more robust than ever before!

Data Logging

• Stores up to 9 jobs internally
• Easy download via USB port
• Displays % free storage space before logging begins
• Logs up to 7 days (168 continuous hours)

Tightness Test built-in feature
• Check for leaks after repairs or installations
• View pressure differential over time
• Timer tracks duration of test
• Temperature compensated with SL temp to avoid false positives

Customisable Menu
• Adjust auto power off duration
• Adjust backlight duration
• Set high and low vacuum alarms
• Select each unit of measurement individually

Receives Wireless Measurements
Add Job Link Tools to your arsenal and get live readings directly on the SMAN manifold screen from the Job Link Psychrometers (JL3RH), Job Link Pipe Clamps (JL3PC), and SRS3 Refrigerant Scale.
Place pipe clamps in the perfect location. Monitor and record live refrigerant usage for precise recovery, charging, and documentation. View live air measurements and calculations while making adjustments.

Increase Professionalism with Job Link® System App
Streamline and simplify your call even further with the Job Link System App. See your measurements up to 100 metres away on your mobile device. Document your work and provide professional reports, including refrigerant weight usage, by simply connecting to the Job Link System app. Helps to reduce call-backs and increase profits.
• View measurements on SMAN and/or in Job Link App
• Monitor and record refrigerant weight
• Direct 100 meter wireless range (no transmitter needed)

WHAT'S INCLUDED

• SM480vINT

• 2 x TC24 Wired Type-K Pipe Clamp thermocouple

• 1 x ATA1 Type-K Bead Thermocouple with clip

• 1 x ANC11 Padded Drawstring Case

SPECIFICATIONS

Display	LCD (5 inches diagonal)
Backlight	Blue (adjustable duration)
Low Battery Indication	Displayed when the battery voltage drops below the operating level
Over Range Display	OL for pressure, – – – – for temperature
Auto Power Off	30 minutes of inactivity (adjustable)
Maximum Manifold Pressure	800 Psig (5500 kPa)
Battery Type	6 x AA alkaline
Battery Life	350 hours typical (without vacuum, backlight, and wireless)
Radio Frequency	2.4 GHz
Wireless Range	305 meters line of sight – distance decreases through obstructions
Data Port	Micro USB (for extracting data logs or updating firmware)
Operating Environment	0°C to 50°C at <75% RH
Storage Environment	-20°C to 60°C at <80% RH (with battery removed)
Temperature Coefficient	0.1 x (specified accuracy) per °C (0°C to 18°C, 28°C to 50°C)
Weight	1.83 kg
Water Resistant	Designed to IP54

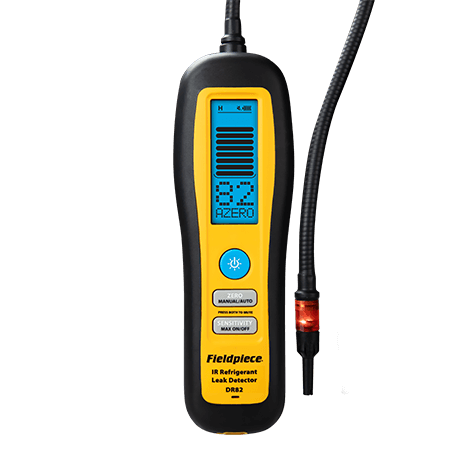

Fieldpiece Infrared Refrigerant Leak Detector - DR82

Infrared Refrigerant Leak Detector for HVACR - Superior Sensitivity in a Rugged Design for HVACR

• 10-year sensor life
• Doesn’t trigger on soap bubbles and oil
• Compact – designed to fit in your hand
• Multiple alarms
• LED lighted tip and loud beep help find leaks in noisy and dark environments
• Sensitivity better than 0.03 oz/yr (1g/yr)
• Ruggedized and IP54-certified
• 10-hour battery charge
• Bright blue, back-lit LCD screen with clear numerical leak size indicator and bar graph
• Non-conductive, sturdy probe that stays where you want it.
• Weighs less than a pound
• Works on A2L Refrigerants

WHAT'S INCLUDED

• Advanced IR Refrigerant Leak Detector (DR82)

• 5 x Replacement Filtered Tips (RFT6)

• Wall Charger with USB-C Cable (RCA3)

• Blow-Molded Case (ABM2)

• Operator’s Manual

SPECIFICATIONS

Sensor Type	Infrared (IR)
Sensor Life	10 years typical
Sensitivity Levels	High, medium, low, turbo (selectable)
Maximum Sensitivity	0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion
Display Type	LCD (backlit for indoor use)
Detection Feedback	Red tip LED, LCD bar graph, LCD digits, beeper
Refrigerants	Detects CFC, HFC, HCFC, HFO and blends and doesn’t trigger on oil or soap bubbles
Response Time	<1 seconds typical
Recovery Time	<5 seconds typical
Body Type	Compact, rugged overmolded
Battery Type	3.7 VDC (nominal) 2600mAh, non-replaceable
Charge Time	6 hours typical with included charger.
Battery Life	10 hours typical, backlight off
Auto Power Off	10 minutes without detection or button press
Operating Environment	32°F to 104°F (0°C to 40°C); < 75% RH (non-condensing)
Storage Temperature	-4°F to 140°F (-20°C to 60°C); < 80% RH
Weight	14 oz (400g)
Water Resistance	Designed to IP54

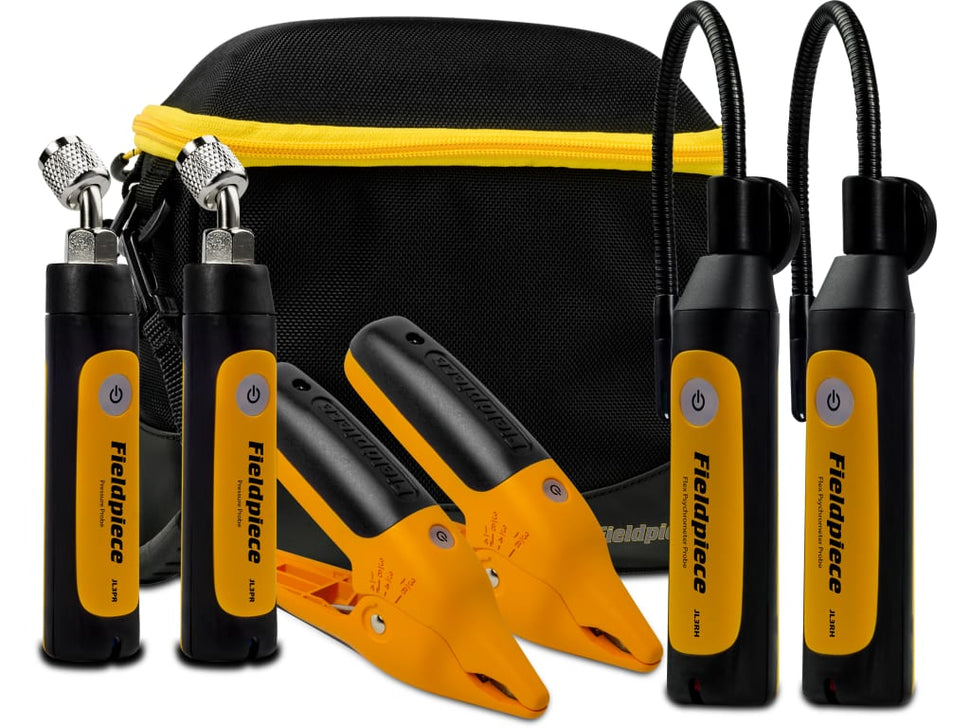

Fieldpiece Job Link Charge & Air Test Bluetooth Probe Kit JL3KH6

Take a full system snapshot quickly and easily with the JL3KH6 Charge and Air Test Kit.

• All measurements can be sent up to 1000’ away directly to your mobile device with the Job Link® System mobile app.
• Each tool is designed for agility and speed.
• The pressure probes fit into tight spaces.
• The pipe clamps use the new Rapid Rail™ sensor design delivering accuracy, speed, and agility, even on the most awkward pipe configurations.
• The psychrometers’ flexible narrow probes and configurable magnet make it easy to measure supply plenums, ducts, and elevated registers. Do more with Job Link probes!

WHAT'S INCLUDED

• 2 x JL3PR Job Link Pressure Probes for Discharge & Suction Pressure
• 2 x JL3PC Job Link Premium Pipe Clamp Probes for liquid line subcooling & suction line Superheat
• 2 x JK3RH Flex Job Link Psychrometer Probes for obtaining Dry Bulb, Wet Bulb, Dew Point Temperatures & Relative Humidity [ RH%]
• Contained in a quick access padded ANC18 Protective Case
• 2 x AAA Batteries Per Probe (8 Total)

SPECIFICATIONS

Wireless Range: +300 metres
Wireless Frequency: 2.4 GHz
Battery: 2 x AAA (included)
Battery Life: 150 hrs typical alkaline
Auto Power Off (APO): 2 hrs (can be disabled)
Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or AndroidTM 5.0

Job Link™ Pressure Probe - JL3PR
Connector Type: 45° Standard 1/4” NPT female flare
Best Accuracy: ±1 psig (±7 kPa)
Measurement Range: 0 to 580 psig (0 to 4000 kPa)
Maximum Overload: 800 psig (5500 kPa)
Water Resistant: Designed to IP55

Job Link™ Premium Pipe Clamp Probe - JL3PC
Pipe Compatibility: Electrically conductive 1/4” to 1 3/8” (6.4mm to 34.9mm) dia.
Accuracy: ±1°F (±0.6°C)
Measurement Range: -50°F to 257°F (-46°C to 125°C)
Stabilization Time: 3 seconds typical
Measurement Feedback: Beeper and LED
Water Resistant: Designed to IP55
Patent: Pending

Job Link™ Flex Psychrometer Probe - JL3RH
Flexible Probe: 0.36” (9mm) diameter, 9.25” (235mm) length
Best Accuracy: ±1°F (±0.6°C) ±2.5 %RH
Measurement Range: -4°F to 140°F (-20°C to 60°C) 0 %RH to 100 %RH

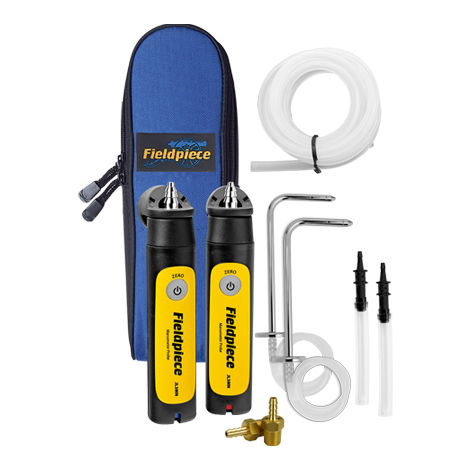

Fieldpiece Job Link Wireless Manometer Kit JL3KM2

The revolutionary new JL3KM2 Job Link® System Manometer probes give HVAC-R pros the freedom to work the way they want to — unrestricted by hoses, so technicians get readings from optimal locations on every system, every time.

• All-in-one static, gas and draft pressure
• Record up to 8 readings at once* in Job Link App
• Accurate and stable measurements
• Reliable pressure regardless of location
• Individual pressure readouts
• Switchable P1 – P2 indicator
• Easy zero to atmosphere
• Long-range wireless
• Job Link® System app compatible

WHAT'S INCLUDED

• 2x JL3MN Manometer Probe
• 2x ASP2 Static Pressure Probe and Hose
• 2x Brass Screw Fitting with Extra Hose
• 2x Slide Gas Adapter
• 4x AAA Batteries
• 1x Padded Case

SPECIFICATIONS

Minimum Device Requirement	BLE 4.0 devices running iOS® 7.0 or Android™ 5.0 (Latest compatibility at www.fieldpiece.com)
Compatible Media	Dry, non-corrosive gas
Pressure Port	Tube connector for flexible tubing (4.5 to 8mm ID)
Units of Measure	inWC, mmWC, mbar, psi, Pa
Accuracy and Ranges:	inWC: ±0.02 on 0.00 to ±2.00 (±1.5% FS on 2.00 to ±60.00); mmWC: ±0.5 on 0.0 to ±51.0 (±1.5% FS on 51.0 to ±1500.0); mbar: ±0.05 on 0.00 to ±5.00 (±1.5% FS on 5.00 to ±150.00); psi: ±0.001 on 0.000 to ±0.072 (±1.5% FS on 0.072 to ±2.165); Pa: ±5 on 0 to 498 (±1.5% FS on 498 to ±14930)
Maximum Overload Pressure	321.08 inWC (11.6 psi; 80.0 kPa)
Battery Type	2 x AAA, NEDA 24A, IEC LR03
Battery Life	150 hours typical alkaline. LED slow-blinks red when battery replacement is needed.
Auto Power Off:	2 hours (APO can be disabled)
Wireless Range	1000 feet (305 meters) line of sight. Obstructions affect distance.
Radio Frequency	2.4 GHz
Operating Environment	-10°F to 122°F (-23°C to 50°C) at <75% RH
Storage Temperature	-10°F to 140°F (-23°C to 60°C) at <80% RH (with batteries removed)
Temperature Coefficient	0.1 x (specified accuracy) per 1.8°F (-10°F to 64°F, 82°F to 122°F), per 1°C (-23°C to 18°C, 28°C to 50°C)
Weight	0.30 lbs (137 g)

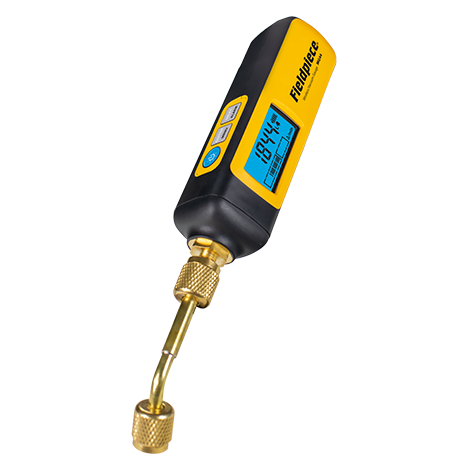

Fieldpiece Wireless Probe Vacuum Gauge with LCD Display - MG44

The NEW MG44 Micron Gauge Impact and Weather Resistant designed for the field

• Confidently perform evacuations with a reliable, leak-proof seal.
• Reversible angled coupler and new cylindrical design are easier to fit into tight spaces.
• There are three ways to use:
• View from up to 300 metres away (line of sight) via the Job Link® mobile app

• View on the Fieldpiece SMAN™ Refrigerant Manifold SM380INT or SM480INT

• View direct from the MG44’s display
• Three ways to view the new larger backlit LCD screen is easier to read and its dot-matrix display shows more info including:
• bar graph

• rate

• rate meter
• IP54-rated weather-resistant.
• Rugged over-molded construction for extreme impact resistance.
• Range 50 to 25,000 microns
• Units of measure: microns (µm) of mercury, mmHg, mbar, mTorr, Torr, and Pascals

WHAT'S INCLUDED

• Micron Vacuum Gauge - MG44

• Reversible Coupler Fitting

• Operator's Manual

• 2 x AA Alkaline Batteries

SPECIFICATIONS

Minimum Device Requirement	BLE 4.0 devices running: iOS® 7.0 or Android™ 5.0 (Latest compatibility at www.fieldpiece.com)
Connector type	1/4” SAE male fitting
Accuracy	±(5% of reading + 5 microns) at 77°F (25°C), 50 to 1000 microns
Range and Units	50 to 25000 microns of mercury (English), 6 to 3333 Pascals (Metric), 0.06 to 33.33 mBar (Metric), 50 to 25000 mTorr (Metric), 0.05 to 25 Torr (Metric, equivalent to mmHg)
Best Resolution	1 micron of mercury (below 2000 microns), 1 Pascal (below 250 Pascals), 0.001 mBar (below 2.5 mBar), 1 mTorr (below 2000 mTorr), 0.001 Torr (below 2.5 Torr, equivalent to mmHg)
Battery Type	2 x AA Alkaline, NEDA 15A, JIS UM3, IEC LR6
Battery Life	40 hours typical alkaline
Auto Power Off	15 minutes default (APO adjustable)
Wireless Range	1000 feet (305 meters) line of sight. Obstructions affect distance.
Radio Frequency	2.4 GHz
Water Resistence	IP55
Operating Environment	14°F to 122°F (-10°C to 50°C) at <75% RH
Storage Temperature	-4°F to 140°F (-20°C to 60°C) at <80% RH (with batteries removed)
Weight	0.66 lbs (300 g)



Fieldpiece Wireless Electronic Refrigerant Scale 114KG - SR47

The New Heavyweight Champion

• 13″ platform to fit larger tanks and integrated bumpers for increased durability
• Strong enough to hold a maximum load of 252 lbs
• Wireless remote control with LED backlight – can be stored inside the scale, and makes viewing data easy
• Industry-leading accuracy: ±0.03%rdg + 0.25 oz
• Lightweight. Total weight of scale and remote is ~7 lbs
• Water resistance can handle any job site
• Connects to the Job Link® System App with 1000′ wireless range and Digital Manifolds SM480V & SM380V
• Platform battery lasts 200+ hours – it can literally work all week if needed
• Easy-to-use raised power button now located at base of scale
• A2L compatible

Built for HVAC-R - Packed with ideal measurements perfect for mini-splits!

Whether you’re working on small circuitry in mini-splits or on large commercial units, the new SC680 is packed with everything you need to install, service or troubleshoot any HVAC-R system.

• Measures Power (kW) for system efficiency
• Verify 3-phase rotation with just two leads.
• Filter out noise to get true voltage and frequency with low pass filter
• Take more accurate VAC and AAC readings with True RMS

• Has True RMS and Low Pass Filter (LPF) to obtain accurate VFD readings
• Test Diodes and Resistance up to 50MΩ
• Measures start/run capacitors
• Magnet for mounting meter during use
• Molex tips reach into power connectors
• Safety rated CAT IV-600V/CAT III-1000V

WHAT'S INCLUDED

• SC680INT Bluetooth Clamp Meter
• ADLS2 Deluxe Test Lead Set with Gold Plated Tips with Removable Sheath
• ASA2 Short Leads with Alligator Clips
• 2 x ATB1 Type K Thermocouples
• 2 x Velcro Straps
• 9V Alkaline Battery (not installed)
• ANC7 Padded Case
• Operator's Manual

SPECIFICATIONS

Measure	up to 600 Amps AC & DC
Display	10000 count dual display
Backlight	5 minute duration with auto-off, blue color
Overrange	“OL” or “-OL” is displayed
Measurement rate	3.3 times per second, nominal Zero: Automatic
Operating environment	32°F to 122°F (0°C to 50°C) at <70%RH
Storage temperature	-4°F to 140°F (-20°C to 60°C), 0 to 80%RH (with battery removed)
Accuracy	Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH
Temperature coefficient	0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F), 28°C to 50° C (82°F to 122°F)]
APO (Auto Power Off)	Approx. 30 minutes
Power	Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
Battery life	100 hours typical alkaline (No wireless, no backlight)
Low battery indication	Battery icon blinks and "batt" is displayed when the battery voltage drops below the operating level
Dimensions	247mm(H) x 79mm(W) x 48mm(D)
Weight	Approx. 345g including battery
Altitude	Up to 6562 ft (2000m)
Overload protection	1000VDC or 750VAC rms unless otherwise stated
Test leads	Use UL listed test leads that comply to UL61010-031 rated CATIV 600V, CATIII 1000V or above. Included test leads are gold-plated and have removable safety caps.

Please operate the instrument following all instructions of the operator's manual to avoid impairing the safety of the product.
