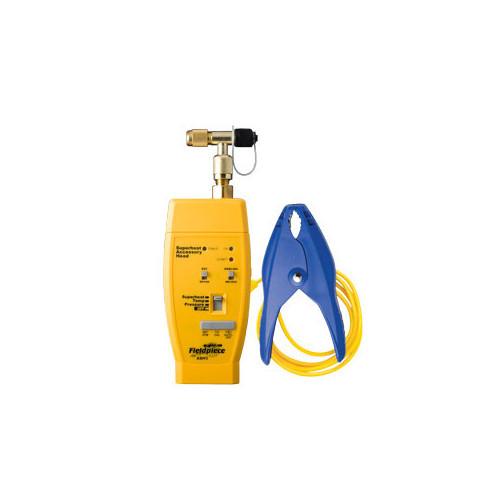

The ASH3 calculates actual superheat in real time using built in P/T charts. It can also be used to  measure liquid line or high side line temperature and pressure for other diagnostic. Use it to get actual superheat on R-22 and R-410A fixed orifice systems and on TXV / TEV regulated systems.  Use the “T” fitting to charge to actual superheat by putting the ASH in-line between your refrigerant bottle and the system.

Features

• Measures suction or liquid line pressure and temp
• Calculates superheat for R22 and R410A
• Easily calibrates to current atmospheric pressure
• Includes the ATC1 pipe clamp thermocouple. Jaw Opening to 35mm

Specifications

• SKU ASH3-Clearance
• BrandFieldpiece
• Shipping Weight1.0000kg
• Shipping Width0.150m
• Shipping Height0.200m
• Shipping Length0.150m
• Shipping Cubic 0.004500000m3
• Unit Of Measure ea
• Assembled Length 0.150m
• Assembled Height 0.200m
• Assembled Width 0.150m

Can be used with the HG2 System Analyser for Temperature or Superheat with this ASH3 Accessory Head - Make it Wireless with the EH4W kit.

Works with HS26, HS33, HS35, HS36, EHDL1, EH4W, LT17AW
