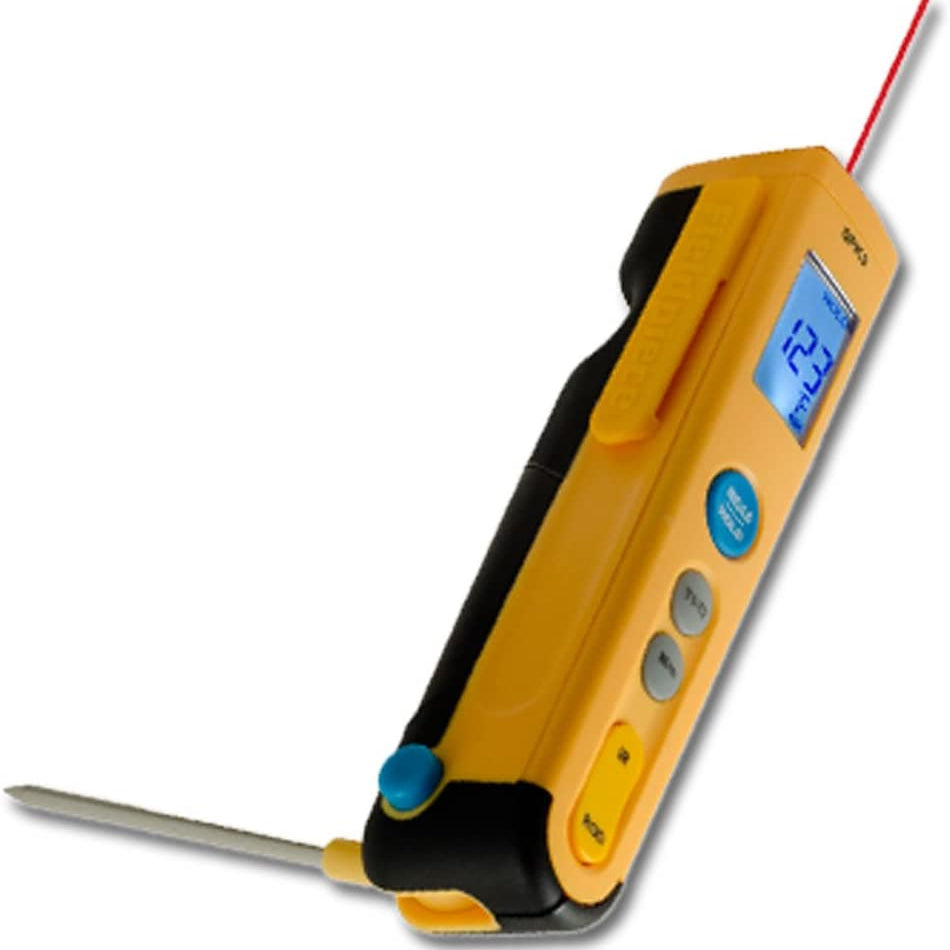

Fieldpiece Probe And IR Temperature Pocket Style Tool - SPK3

The SPK3 is a great tool to quickly take in-duct, ambient, and register temperatures.  It's a handy tool to assess a system and it fits conveniently in your pocket.  The ROD has a sharp, narrow tip to easiy insert into duct work, and the hanging hooks allows you to take hands-free measurements.  The bright back lite display flips between the IR and ROD measurements so readings are always easy to view.  Plus this handy tool quickly calculates T1 – T2 across both the IR and ROD modes, or a combination of the two.

 Key Features:

• Convenient 2-Way Temperatures
• Folding ROD thermometer with 8:1 IR

• Great to quickly assess a system

• Folding ROD for in duct measurements

• 8:1 IR for register and ambient temps

• Hands free in-duct measurements

• Quickly calculates T1 - T2 across both ROD and IR


Specifications

• Probe length: 94mm (~3.75”) long
• Operating environment: 32°F to 104°F (<90% RH)
• Storage environment: 14°F to 140°F (<70% RH)
• Battery: 2 x AAA (installed)
• Battery life (alkaline): 40 hrs (IR), 750 hrs (ROD)
• Auto-off: 3 min, 15 min (T1-T2 mode)
• IR range: -20°F to 932°F (-30°C to 500°C)
• Best resolution: 0.5°F/0.2°C
• Accuracy: (@73°F, <80%RH, calibrated @ 30cm)
  ±4°F(±2°C),(-20°F to 32°F);
  ±3°F(±1.5°C),(32°F to 50°F);
  ±2°F(±1°C),(50°F to 104°F);
  ±3°F(±1.5°C) or 1.5% of rdg,
• Field of view (D:S): 8:1
• Response time: 0.5 seconds
• Wavelength: 8µm to 14µm
• Emissivity: E=0.95
• Rod range: 40°F to 257°F (-40°C to 125°C)
• Best resolution: 0.1°F/0.1°C
• Accuracy: (@73°F, <80%RH)
  ±1°F(±0.5°C), (32°F to 122°F);
  ±2°F(±1.0°C), (<32°F, >122°F)
• Response time: 20 seconds

Warranty

12 months manufacturer's warranty

Instructions & Manuals

Fieldpiece Probe And IR Temperature Pocket Style Tool - SPK3 Manual
