Fieldpiece Job Link Wireless Probe Kit – JL3KH6 & JL3KM2
FREE SHIPPING: Fieldpiece Job Link JL3 Complete Probe Kit by Cool Tools HVAC-R
This kit includes:
- 1 x Job Link Charge & Air Test Bluetooth Probe Kit JL3KH6
- 1 x Job Link Wireless Manometer Kit JL3KM2
The Job Link System JL3 Probes use a more advanced Bluetooth technology and communicate directly to the Job Link System app, without the need for the JL2 transmitter. This Beacon Bluetooth Technology gives +300 metre range! Just what you need to get inside or outside measurements with your gear.
While some tools need the transmitter and others do not, all Job Link System tools can be used at the same time with all readings seamlessly displayed in the app. When using Job Link you can receive multiple measurements from multiple locations in real-time, assisting in reducing call backs by getting everything just right & system tuned.
FEATURES AND CAPABILITIES
Job Link Charge & Air Test Bluetooth Probe Kit JL3KH6
Take a full system snapshot quickly and easily with the JL3KH6 Charge and Air Test Kit.
WHAT'S INCLUDED
- 2 x Pressure Probes for Discharge & Suction Pressure
- 2 x Pipe clamps for liquid line subcooling & suction line Superheat
- 2 x Psychrometers for obtaing Dry Bulb, Wet Bulb , Dew Point Temperatures & Relative Humidity [ RH%]
- Contained in a quick access padded case.
All measurements can be sent up to 1000’ away directly to your mobile device with the Job Link® System mobile app.
Each tool is designed for agility and speed.
The pressure probes fit into tight spaces.
The pipe clamps use the new Rapid Rail™ sensor design delivering accuracy, speed, and agility, even on the most awkward pipe configurations.
The psychrometers’ flexible narrow probes and configurable magnet make it easy to measure supply plenums, ducts, and elevated registers. Do more with Job Link probes!
SPECIFICATIONS
Wireless Range: +300 metres
Wireless Frequency: 2.4 GHz
Battery: 2 x AAA (included)
Battery Life: 150 hrs typical alkaline
Auto Power Off (APO): 2 hrs (can be disabled)
Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or AndroidTM 5.0
Job Link™ Pressure Probe - JL3PR
Connector Type: 45° Standard 1/4” NPT female flare
Best Accuracy: ±1 psig (±7 kPa)
Measurement Range: 0 to 580 psig (0 to 4000 kPa)
Maximum Overload: 800 psig (5500 kPa)
Water Resistant: Designed to IP55
Job Link™ Premium Pipe Clamp Probe - JL3PC
Pipe Compatibility: Electrically conductive 1/4” to 1 3/8” (6.4mm to 34.9mm) dia.
Accuracy: ±1°F (±0.6°C)
Measurement Range: -50°F to 257°F (-46°C to 125°C)
Stabilization Time: 3 seconds typical
Measurement Feedback: Beeper and LED
Water Resistant: Designed to IP55
Patent: Pending
Job Link™ Flex Psychrometer Probe - JL3RH
Flexible Probe: 0.36” (9mm) diameter, 9.25” (235mm) length
Best Accuracy: ±1°F (±0.6°C) ±2.5 %RH
Measurement Range: -4°F to 140°F (-20°C to 60°C) 0 %RH to 100 %RH

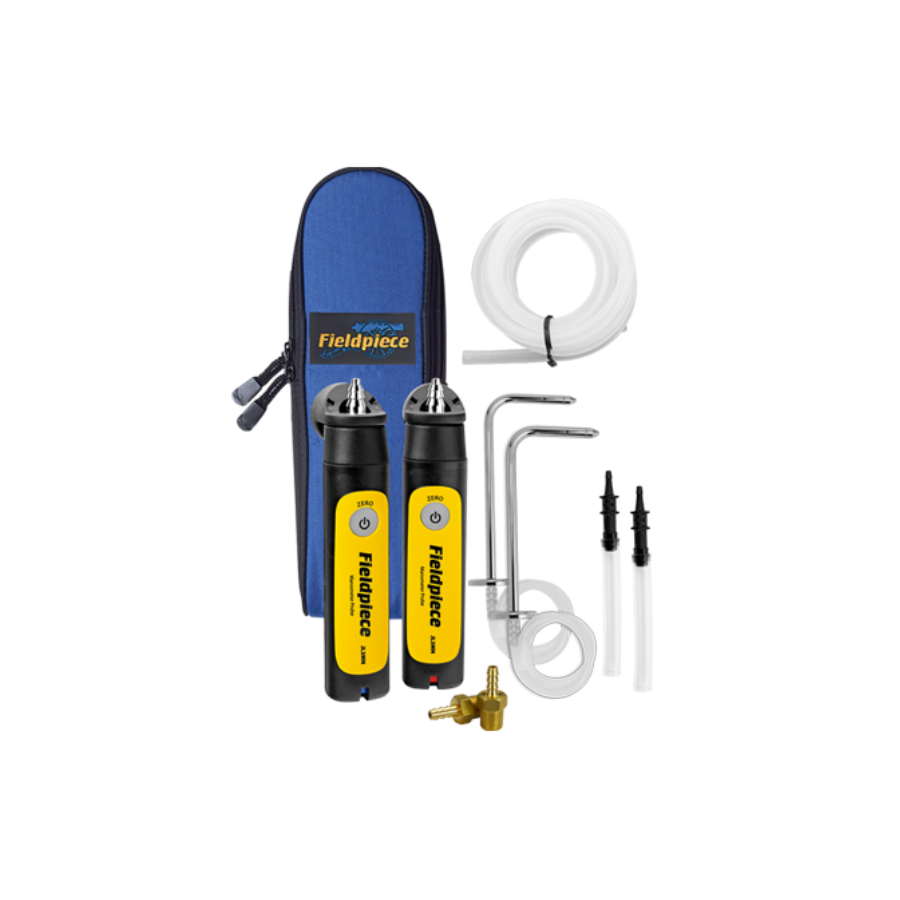

Job Link Wireless Manometer Kit
The revolutionary new JL3KM2 Job Link® System Manometer probes give HVAC-R pros the freedom to work the way they want to — unrestricted by hoses, so technicians get readings from optimal locations on every system, every time.
- All-in-one static, gas and draft pressure
- Record up to 8 readings at once* in Job Link App
- Accurate and stable measurements
- Reliable pressure regardless of location
- Individual pressure readouts
- Switchable P1 – P2 indicator
- Easy zero to atmosphere
- Long-range wireless
- Job Link® System app compatible
WHAT'S INCLUDED
- 2x JL3MN Manometer Probe
- 2x ASP2 Static Pressure Probe and Hose
- 2x Brass Screw Fitting with Extra Hose
- 2x Slide Gas Adapter
- 4x AAA Batteries
- 1x Padded Case
SPECIFICATIONS
| Minimum Device Requirement | BLE 4.0 devices running iOS® 7.0 or Android™ 5.0 (Latest compatibility at www.fieldpiece.com) |
| Compatible Media | Dry, non-corrosive gas |
| Pressure Port | Tube connector for flexible tubing (4.5 to 8mm ID) |
| Units of Measure | inWC, mmWC, mbar, psi, Pa |
| Accuracy and Ranges: | inWC: ±0.02 on 0.00 to ±2.00 (±1.5% FS on 2.00 to ±60.00); mmWC: ±0.5 on 0.0 to ±51.0 (±1.5% FS on 51.0 to ±1500.0); mbar: ±0.05 on 0.00 to ±5.00 (±1.5% FS on 5.00 to ±150.00); psi: ±0.001 on 0.000 to ±0.072 (±1.5% FS on 0.072 to ±2.165); Pa: ±5 on 0 to 498 (±1.5% FS on 498 to ±14930) |
| Maximum Overload Pressure | 321.08 inWC (11.6 psi; 80.0 kPa) |
| Battery Type | 2 x AAA, NEDA 24A, IEC LR03 |
| Battery Life | 150 hours typical alkaline. LED slow-blinks red when battery replacement is needed. |
| Auto Power Off: | 2 hours (APO can be disabled) |
| Wireless Range | 1000 feet (305 meters) line of sight. Obstructions affect distance. |
| Radio Frequency | 2.4 GHz |
| Operating Environment | -10°F to 122°F (-23°C to 50°C) at <75% RH |
| Storage Temperature | -10°F to 140°F (-23°C to 60°C) at <80% RH (with batteries removed) |
| Temperature Coefficient | 0.1 x (specified accuracy) per 1.8°F (-10°F to 64°F, 82°F to 122°F), per 1°C (-23°C to 18°C, 28°C to 50°C) |
| Weight | 0.30 lbs (137 g) |
