Uni-T UT219M Professional Clamp Meter Motor Test Loz
$281.95
$352.95
UT219M is a True RMS Industrial Clamp Meter with CAT IV 600V rating.
It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.
The waterproof rating is up to IP54; therefore, it can be used in environments with splashing water or dust.
FEATURES:
- CAT III 1000V / CAT IV 600V rating
- Display count 6000
- Auto/Manual range
- Jaw opening 33mm diameter
- True RMS
- 3-phase motor sequence test 600V
- 3V Diode test
- 3 times/s Measurement sampling rate
- LCD Display
- Auto power off/MAX/MIN
- Low battery indication
- Data hold (H)
- Relative mode (REL)
- ZERO mode
- Function selection
- Auto backlight + Flashlight
- 2m drop proof
- IP54 IP rating
- Input impedance ≥10MΩ
- LoZ input for ghost voltage measurement
- Temperature and μA measurements.

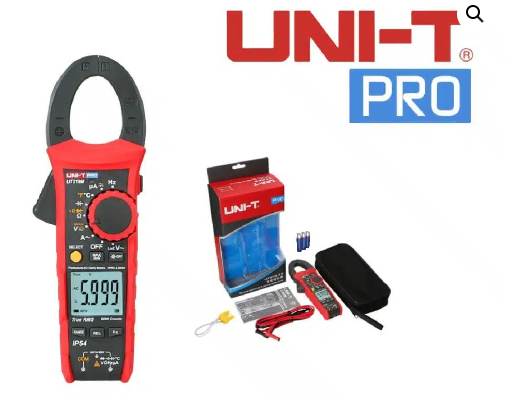

INCLUDES:
UT219M, Test Leads (1 m), Temperature Probe (80 cm), Pouch, English manual, 3 x AAA Batteries, and 12-Month Warranty.
SPECIFICATIONS:
| Specifications | ||
| Model | UT219M | |
| AC current (A) | 60A/600A | ±(1.8%+6) |
| AC voltage (V) | 6V/60V/600V | ±(1.0%+6) |
| LoZ ACV | 600V | ±(2.5%+6) |
| DC voltage (V) | 6V/60V/600V | ±(0.6%+3) |
| DC current (μA) | 2000μA | ±(0.9%+6) |
| AC current (μA) | 2000μA | ±(1.5%+6) |
| Resistance (Ω) | 60Ω | ±(1.5%+3) |
| 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(1.0%+3) | |
| Capacitance | 6nF | ±(4.0%+7) |
| 60nF/600nF/6μF/60μF/600μF/6mF/60mF | ±(4.0%+7) | |
| Frequency | 60Hz ~ 40MHz | ±(0.1%+6) |
| Temperature (℃) | -40~1000℃ | ±(2.0%+5℃) |
| Temperature (℉) | -40~1832℉ | ±(2.0%+9℉) |
| Features | ||
| Display count | 6000 | |
| Auto/Manual range | √ | |
| Jaw size | 33mm | |
| True RMS | √ | |
| AC current frequency response | 40Hz~ 400Hz | |
| AC voltage frequency response | 40Hz~ 400Hz | |
| 3-phase motor test | 600.0V | √ |
| Diode test | 3V | √ |
| Measurement sampling rate | times/s | 3 |
| LCD display (HTN) | interface | Single |
| Auto power off | √ | |
| Low battery indication | √ | |
| Data hold (H) | √ | |
| Relative mode (REL) | √ | |
| MAX/MIN | √ | |
| Function selection (SELECT) | √ | |
| Auto backlight | √ | |
| 2m drop test | √ | |
| Safety rating | IP54 | |
| Input impedance | ≥10MΩ | √ |
| General Characteristics | ||
| Power supply | AAA 1.5V alkaline battery × 3 | |
| LCD size | 35mm × 31mm | |
| Device colour | Red and grey | |
| Device weight | 310g | |
| Device size | 235mm × 82mm × 47mm | |
| Standard accessories | Test leads, batteries, K-type temperature probe, carrying bag | |
| Standard individual packing | Box, manual | |
