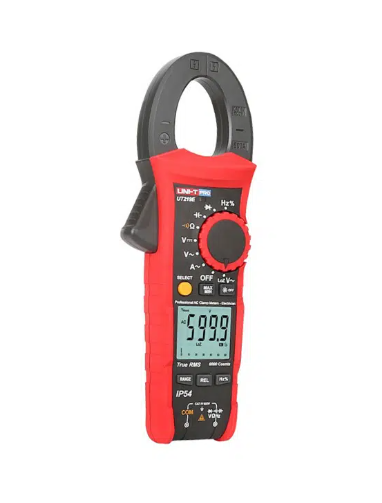

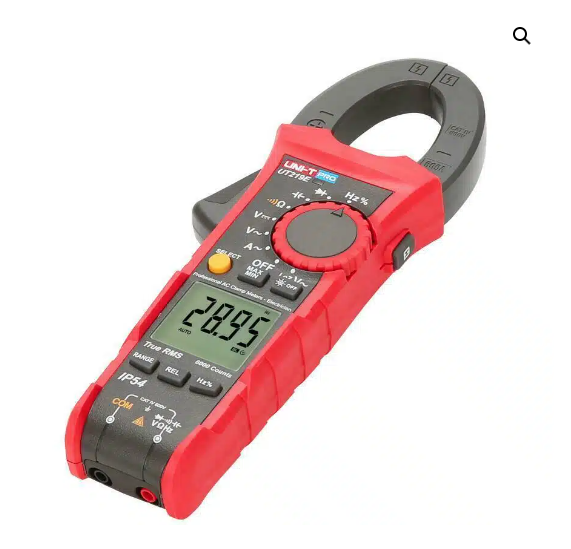

Uni-T UT219E Professional Clamp Meter
$209.99
$282.94
UT219 Series Digital Multimeters: Durable and Versatile for Professional Use
Designed for industrial environments, the UT219 series digital multimeters come with an IP54 rating and can withstand a 2-meter drop test, ensuring reliable performance in harsh conditions. These multimeters are ideal for professional electricians, HVAC/R, and motor service technicians. The series includes the UT219E, UT219M, and UT219DS models.
Key Features of the UT219 Series
- High Safety Ratings: CAT III 1000V / CAT IV 600V
- Clear Display: Large 6000-digit LCD screen
- True RMS Measurement: Accurate readings for all AC signals
- LoZ Voltage Test: Eliminates ghost voltage interference
- Versatile Testing Modes: Auto/Manual range, MAX/MIN/REL, and more
- User-Friendly Functions: Data hold, function selection (SELECT), auto backlight, and auto power off
- Durability: Drop-proof up to 2 meters and IP54 protection rating
- Additional Features: Low battery indication, analog bar, and dual display interface (UT219DS)
Included Accessories
- 1 x UT219E Digital Multimeter
- Test Leads
- Batteries
- Carrying Bag
- PC Software CD
- 12-Month Warranty
Specifications Overview
| Specifications | Range | UT219E | UT219M | UT219DS |
|---|---|---|---|---|
| AC Current (A) | 600A | ±(1.8%+6) | ±(1.8%+6) | ±(1.8%+6) |
| DC Current (A) | 600A | - | - | ±(1.8%+6) |
| AC Voltage (V) | 600V | ±(1%+6) | ±(1%+6) | ±(1%+6) |
| DC Voltage (V) | 600V | ±(0.6%+3) | ±(0.6%+3) | ±(0.6%+3) |
| LoZ ACV | 600V | ±(2.5%+6) | ±(2.5%+6) | ±(2.5%+6) |
| Resistance (Ω) | 60MΩ | ±(1%+3) | ±(1%+3) | ±(1%+3) |
| Capacitance (F) | 60mF | ±(4%+7) | ±(4%+7) | ±(4%+7) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+6) | - | - |
| 600Hz~40MHz | - | ±(0.1%+5) | ±(0.1%+6) | |
| Duty Cycle | 0.1%~99.9% | ±(2.6%+7) | - | ±(2.6%+7) |
| Temperature | -40~1000℃ | - | ±(2%+5℃) | ±(2%+5℃) |
| -40~1832℉ | - | ±(2%+9℉) | ±(2%+9℉) |
Key Functionalities
- Display Count: 6000
- Jaw Opening: 33mm
- True RMS: Yes
-
Frequency Response: AC current 40Hz
400Hz, AC voltage 40Hz400Hz (UT219DS up to 1kHz) - 3-Phase Motor Sequence Test: 600V (UT219M, UT219DS)
- Low Pass Filter: 1kHz, 3db attenuation (UT219DS)
- V+A Displays: Voltage and current simultaneously (UT219DS)
- Diode Test: 3V
- Sampling Rates: Measurement 3 times/s (5 times/s for UT219DS), Analog bar 10 times/s (20 times/s for UT219DS)
- Auto Power Off/MAX/MIN: Yes
- Low Battery Indication: Yes
- Data Hold/Relative Mode: Yes
- ZERO Mode: Yes
- Function Selection (SELECT): Yes
- Auto Backlight/2m Drop Test: Yes
- IP Rating: IP54
- Input Impedance: ≥10MΩ
General Characteristics
- Power Supply: 1.5V battery (R03) x 3
- Display Size: 35mm x 31mm
- Product Color: Red and grey
- Net Weight: 310g
- Product Size: 234.6mm x 82mm x 47mm
- Standard Accessories: Test leads, batteries, carrying bag, PC software CD, point contact temperature probe (UT219M/UT219DS)
- Standard Individual Packing: Box, blister, English manual
The UT219 series digital multimeters provide reliable, accurate, and durable measurement solutions for professionals working in challenging environments.
