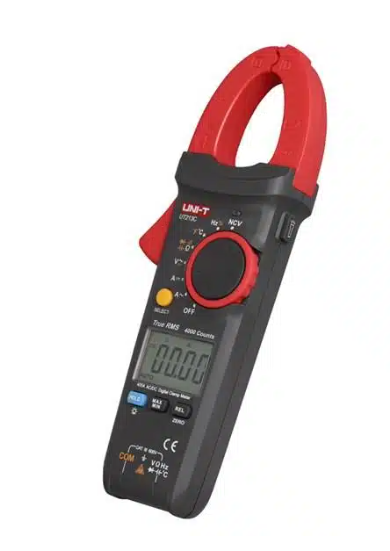

Uni-T UT213C 400A True RMS Digital Clamp Meter with Auto Range
$157.95
$197.95
UNI-T UT213C 400A True RMS Digital Clamp Meter NCV Diode
True RMS clamp meter designed for measuring AC and DC voltage, AC and DC current, resistance, capacitance, frequency and temperature, and performing NCV tests.
These meters are designed for electricians and HVAC/R technicians. The built-in flashlight also makes these meters useful tools when working in dark environments.
FEATURES:
- CAT III 600V rating
- Display Count 4000
- Auto Range
- 30mm Jaw Capacity
- True RMS
- Diode 3.0V
- NCV
- Data Hold
- Relative Mode
- MAX/MIN
- LCD Backlight
- Flashlight
- Auto Power Off
- Continuity Buzzer
- Low Battery Indicator
- Input Protection
- Input Impedance for DCV ≥10MΩ.
INCLUDES:
1 x UT213C, Batteries, Test Lead, Point Contact Temperature Probe, Carrying Bag, and 12-Month Warranty.
SPECIFICATIONS:
| Specifications | Range | UT213C |
| AC current (A) | 400A | ±(2.5%+5) |
| DC current (A) | 400A | ±(2%+3) |
| AC voltage (V) | 600V | ±(1.2%+5) |
| DC voltage (V) | 600V | ±(0.8%+3) |
| Resistance (Ω) | 40MΩ | ±(1%+2) |
| Capacitance (F) | 40mF | ±(4%+5) |
| Frequency | 10Hz~1MHz | ±(0.1%+4) |
| Temperature | -40℃~1000℃ | ±(1%+3) |
| -40℉~1832℉ | ±(1%+6) | |
| Features | ||
| Display count | 4000 | |
| Auto range | √ | |
| Jaw opening | 30mm | |
| True RMS | √ | |
| Diode | Around 3.0V | |
| NCV | √ | |
| Data hold | √ | |
| Relative mode | √ | |
| MAX/MIN | √ | |
| LCD backlight | √ | |
| Flashlight | √ | |
| Auto power off | √ | |
| Continuity buzzer | √ | |
| Low battery indication | √ | |
| Input protection | √ | |
| Input impedance for DCV | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 3 | |
| Display | 38mm x 24mm | |
| Product net weight | Red and grey | |
| Product colour | 231.7g | |
| Product size | 220mm x 75mm x 40mm | |
| Standard accessories | Batteries, test leads, point contact temperature probe | |
| Standard individual packing | Box, carrying bag, English manual | |
