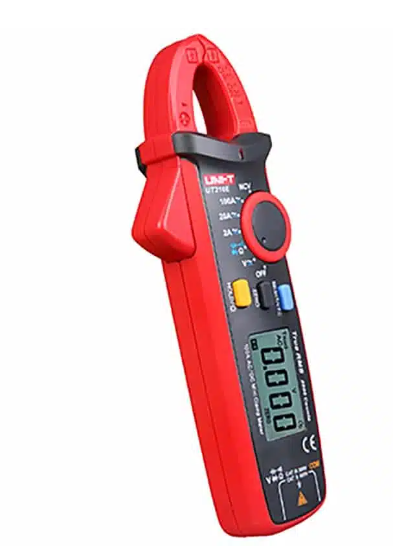

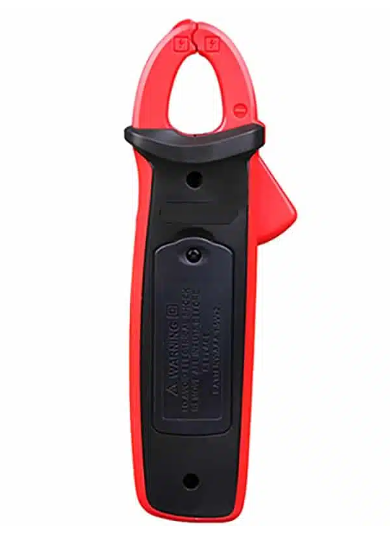

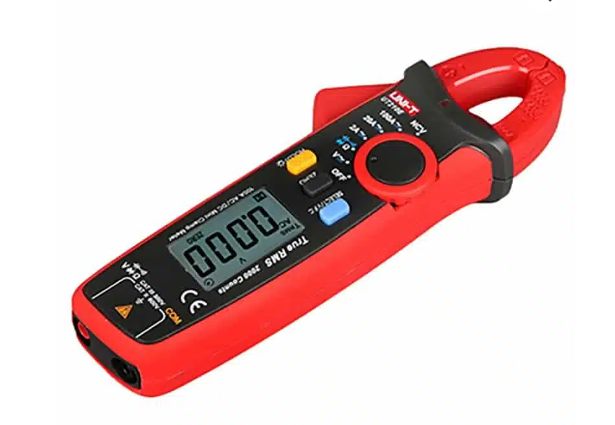

Uni-T UT210E Mini Clamp Meter
$129.99
$172.95
The Uni-Trend UT210E is an affordable function-packed mini clamp meter. Complete with a protective case, test probes and batteries, it is ready-to-go and can measure voltages and resistances/diodes by direct probing, as well as current up to 100A by clamp. It also includes a non-contact voltage detector.
UT210 series mini clamp meters are designed to work well in limited space environments. These are essential tools for mechanical and electrical equipment maintenance, home appliance installation and electrician duties.
FEATURES:
- CAT II 600V / CAT III 300V rating
- VFC, low pass filter
- NCV 3. Ergonomic and lightweight
- Auto range, 2~3 times/s sampling rate
- True RMS 6. ZERO mode
- LCD backlight, data hold
- Auto power off, low battery indication.
INCLUDES:
1 x UT210E, box, English manual, carrying bag, batteries, test leads, and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT210A | UT210D | UT210E |
| AC current (A) | 200A | ±(2.5%+20) | ±(2.5%+8) | |
| 100A | ±(2.5%+5) | |||
| DC current (A) | 200A | ±(2%+3) | ||
| 100A | ±(2%+3) | |||
| AC voltage (V) | 600V | ±(1%+3) | ±(1%+3) | |
| DC voltage (V) | 600V | ±(0.7%+3) | ±(0.7%+3) | |
| Resistance (Ω) | 20MΩ | ±(1%+2) | ±(1%+2) | |
| Frequency (Hz) | 60kHz | ±(0.1%+4) | ||
| Capacitance (F) | 20mF | ±(4%+5) | ±(4%+5) | |
| Temperature | -40~1000℃ | ±(1%+3) | ||
| -40~1832℉ | ±(1.5%+5) | |||
| Features | ||||
| Display count | 2000 | 2000 | 2000 | |
| Continuity buzzer | √ | √ | √ | |
| Auto range | √ | √ | ||
| Jaw opening | 16mm | 17mm | 17mm | |
| Diode test | Around 3.0V | √ | √ | |
| General Characteristics | ||||
| Power | AAA (R03) x 2 | |||
| Display | 39.3mm x 26.5mm | |||
| Product colour | Red and grey | |||
| Product net weight | UT210A: 150g (batteries included); UT210D/E: 170g | |||
| Product size | UT210A: 158mm x 60mm x 33.5mm; UT210D/E: 175mm x 60mm x 33.5mm | |||
| Standard accessories | Batteries, test leads (UT210D/UT210E), point contact temperature probe (/UT210D) | |||
| Standard individual packing | Box, English manual, carrying bag (UT210D/UT210E) | |||
