Would you like to discover and resolve any issues with your HVAC system immediately?
The best HVAC digital multimeter, on the other hand, is an absolute must-have in the tool bag of HVAC technicians. These devices' primary design is to diagnose various systems quickly.
An HVAC multimeter might be your ace in the hole, whether you're repairing your home HVAC system or working as a professional specialist. It provides precise and reliable measurements of both electrical and mechanical components. These useful gadgets help in diagnosing heater and air conditioner problems.
HVAC DIGITAL AND ANALOG MULTIMETER
Digital multimeters are measuring tools that can measure voltage, current, and resistance, among other things. It shows measured data on a digital display, making them accessible to even inexperienced users.
Some digital multimeters automatically choose the measurement range for you, so you don't have to. As a result, these instruments are rather simple to operate, even for beginners. Analog testers, of course, have their advantages, such as the simplicity with which they can read changes in the measured value during measurement. Also, it has intuitive ease by examining a needle in places where a digital reading could be difficult to see.
Because both digital multimeters and analog testers have benefits, you can determine which instrument is ideal for your application by defining what you want to measure.
HIGH-PRECISION DIGITAL MULTIMETER
Although digital multimeters frequently have great precision, the precision of measurement findings is not significantly different from that of analog testers. However, "high precision" refers to the instruments' ability to handle greater resolutions due to their digital displays' ability to display more digits. Because analog testers use a needle to indicate values, there is a chance that the individual operating the instrument will make a mistake when interpreting the value. Reading errors are the term for such blunders.
Because they use a digital display, digital multimeters can be less prone to reading errors. Many customers prefer the easy-to-read digital display because human mistakes can happen no matter how careful you are.
Digital multimeters, unlike analog testers, can read measured values directly without interpreting fine-grained graduations, and the instruments are easy to read in dim light. In this approach, digital multimeters outperform analog multimeters in terms of readability. Some digital multimeters can transfer data to a computer, which reduces the chances of human error even more.
TYPES OF DIGITAL MULTIMETERS
Handheld Type
Handheld variants have a tiny form that can be handled while in use. They can be utilized in various applications, from laboratory to on-site operations, due to their portability. Just because they're small doesn't mean they're ineffective. Handheld variants come in various shapes and sizes, including small, card-shaped, and pen-shaped. There are high-end models available, allowing you to select the instrument that is best suited to your needs.
Benchtop Type
The benchtop models are intended to be used on a horizontal surface. They're commonly seen in workbenches, systems, and production lines, and most of them have a lot of display digits. High added value in capabilities supplied by the instrument alone or in conjunction with a computer, such as data transfer, averaging, and complex calculations, is becoming more popular.
HOW DOES A DIGITAL MULTIMETER WORK
Working Principle
The input signal, such as ac or dc voltage, temperature, resistance, current, or any other parameter, converts to dc voltage within the range of the ADC in a standard digital multimeter. The analog to digital converter subsequently converts the pre-scaled dc voltage to its digital equivalents, then displayed on the display device. A digital controller block is sometimes constructed using a microcontroller or a microprocessor to handle the flow of information within the instrument. This block will manage all internal processes and information transfer to external devices like printers or computers. In a handheld multimeter, you may implement some or all of these blocks in a VLSI circuit. Then, the A/D converter and display driver may be in the same IC.
HOW TO USE A DIGITAL MULTIMETER
- The first step is to turn on the instrument by pressing the power button. Digital multimeters can be powered by battery or AC power, so if the device isn't working, change the battery or check the power supply.
- Using the rotary knob or switches on the instrument, select the parameter you want to measure and the range. Some multimeter types may automatically switch to the proper coverage, removing the need to choose one. If you need to change the range manually, start with the highest setting and make measurements as you move down the scale. Some digital multimeters offer a mode that detects AC and DC voltages automatically.
- Start taking measurements by connecting the leads or clips to the digital multimeter's terminals. If you're evaluating current, resistance, voltage, or another parameter, pay attention to the jack for the red lead. By making a zero adjustment first, you can get more precise measurements. If you want to monitor low resistance values, grounding resistance, insulation resistance, or impedance, you'll need a piece of more specialist equipment.
HOW TO TEST A MOTOR CAPACITOR WITH A DIGITAL MULTIMETER
Capacitance is measured with a multimeter by charging a capacitor with a specified current, measuring the voltage, and computing the capacitance.
- Check to see if the capacitor is completely discharged.
- Adjust the meter to the Ohmic range (minimum 1000 Ohm = 1k).
- Link the probes of the multimeter to the capacitor terminals (Negative to Negative and Positive to Positive).
- For a little moment, the digital multimeter will display some figures. Take note of the reading.
- Every Step 2 effort will produce the same result as Steps 4 and 5. It denotes that the capacitor seems to be in good working order. After that, it will immediately return to the OL (Open Line) or infinity ".
- The capacitor is dead if there's no change.
HOW TO TEST START CAPACITOR WITH DIGITAL MULTIMETER
Suppose you're using an analog meter, and the capacitor is good. Please set it to the highest ohm () level, which should be at least 1 k. (1,000 ohms). When you link it, the meter goes to the capacitor terminals at this setting, the meter creates a tiny current. Hold the leads in place for a few seconds after connecting them. In that case, the meter needle will begin at a low reading and gradually ascend to infinity as charge builds up in the capacitor. The needle will not move if the capacitor is bad.
Suppose you're using a digital multimeter, and the capacitor is good. In that case, the number on the digital display will steadily increase until the capacitor discharges, at which point it will reset to 0 and climb again. If the capacitor is defective, the resistance value will be very low – possibly 0 – and will not vary. It indicates that the capacitor's insulating material has worn out.
It's a good idea to repeat the test to double-check the results.
WHAT TO CONSIDER IN CHOOSING A DIGITAL MULTIMETER
You can use the finest HVAC multimeter for various tasks, and there are several points to bear in mind while buying one. This section will go through those features in detail, from accuracy to convenience of use, to pick the model that best suits your needs.
Accuracy
HVAC workers require functional and precise tools, but it isn't the end of their multimeter is off by a volt or two. Most components work or don't in a typical HVAC repair situation. For an electrical professional, pinpoint accuracy is more critical when diagnosing why a control board isn't working properly.
Various types of readings should be available from an HVAC multimeter. HVAC specialists must determine whether a motor, pump, control board or compressor is in good operating order. In those situations, the finest HVAC multimeter should be able to read voltage, amperage, resistance, and temperature in some cases.
Temperature Probe
It's helpful for an HVAC technician to know what the machine is and isn't performing when they first address an issue. Then, after making the necessary repairs or adjustments, they must confirm that the system is functioning properly. They'll need a temperature probe for that.
Temperature probes on HVAC multimeters capture readings from inside ducting, heating water systems, refrigerant lines, and other measuring sites. These measures can be critical in a commercial context to ensure that the system operates properly. Temperature probes are nevertheless useful in a domestic situation, even if they are less critical.
Many top HVAC multimeters also have thermocouple sensors and cuffs for wrapping around refrigerant lines. It allows professionals to check how well a system is functioning or whether refrigerant needs replacement.
Extra Features
Some of the top HVAC multimeters may come with a few extra functions. For example, some versions have an automatic cutoff feature that turns off the meter after a set time to save battery life. Models with low-battery indications are also available. LED displays with backlights that are simple to read in low-light situations are among the possibilities.
Wireless data transfer is available on some meters. This feature allows an HVAC professional to use Bluetooth or a wireless app to check how changes to the system influence the system from up to 100 feet away. It's especially useful in business situations with huge units.
Usage
There are just too many excellent multimeters on the market to waste money or time on one that is overly difficult. The best HVAC multimeters are straightforward and provide clear digital readings and measurements. When wearing gloves, changing among voltage, amperage, resistance, and other readings must be simple.
Automatic voltage range detection, which detects AC or DC voltage without the user's input, will be available on the most user-friendly gadgets. Additionally, some multimeters have clamps that open and close over an electrical wire, allowing for one-handed readings and a convenient way to suspend the meter while working with two leads in each hand.

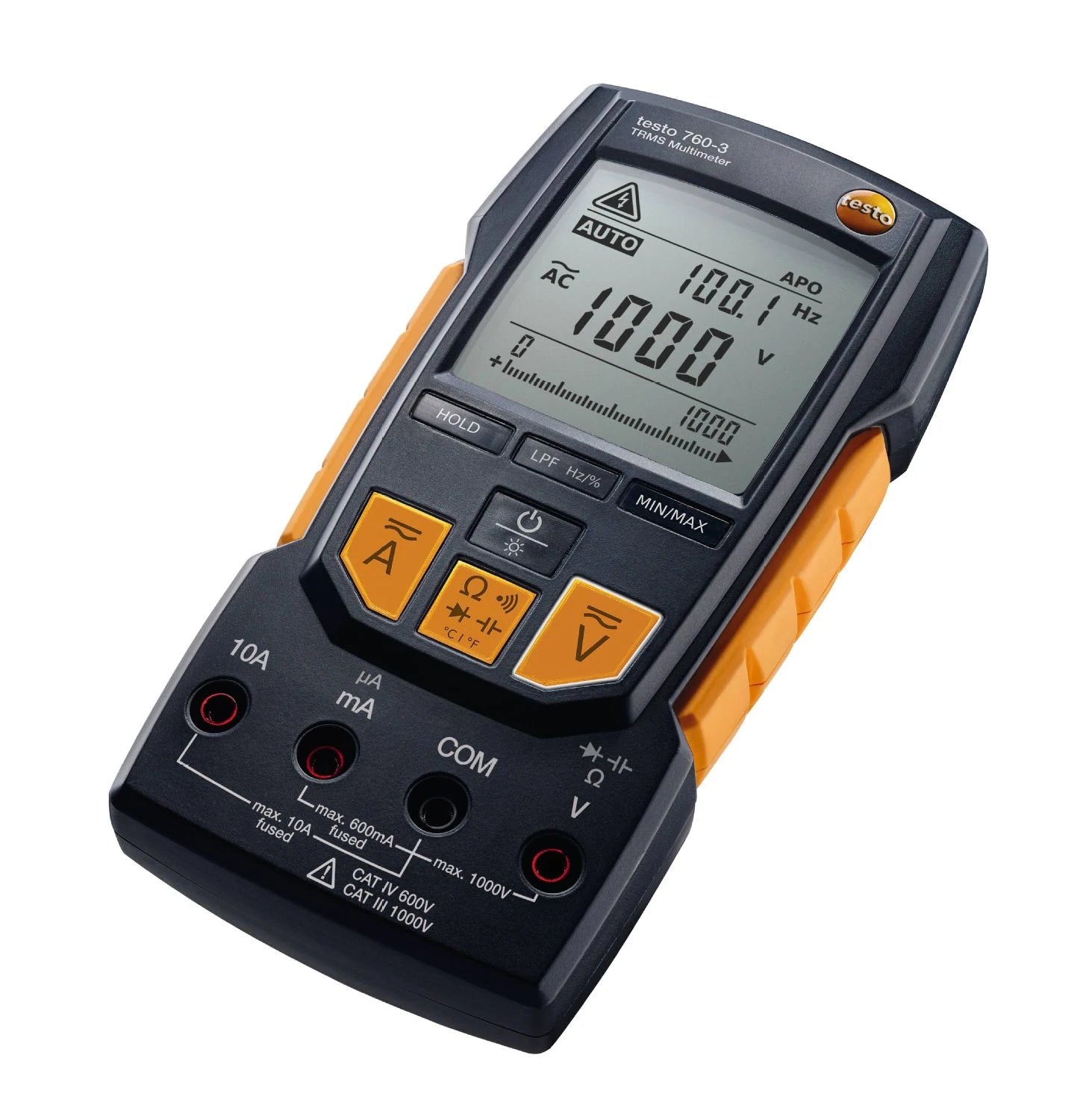

HVAC Digital Multimeter from HVAC Shop
When your air conditioner quits working, don't lose your cool. With a high-quality digital multimeter from HVAC Shop, you can determine what's wrong. To check the state of electronic devices, measuring instruments are required. Since such information is not visible, digital multimeters are advised when checking the status of an electronic item.
Invest in quality digital multimeters and other HVAC equipment from HVAC Shop. Our products will keep you and your clients happy with your service.
