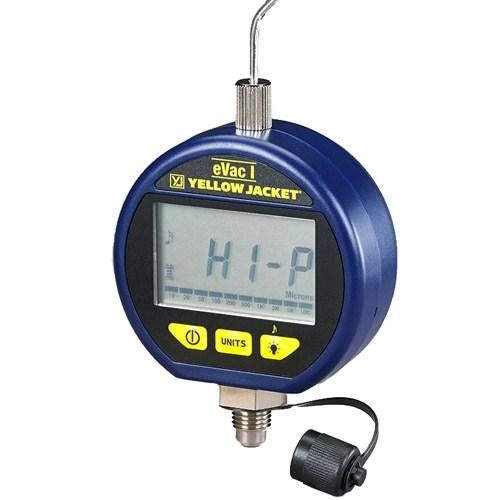

With the EVac I, you can accurately measure vacuum pressure in Microns, Pascals, Millibar, Millitorr, and mmHg with a resolution of 1 micron. Ideal for the HVAC/R professional, the EVac I is small, lightweight, rugged, and easy to use.
Want to learn more about this product? Here are our in-depth guide to know more about the Yellow Jacket Evac I Digital Vacuum Gauge 69047
Key Features
- Large, high-visibility back-lit LCD
- Measures Vacuum in Microns, Pascals, Millibar, Millitorr, and mmHg
- 0 to 25,000 Micron Range with 1 Micron Resolution
- “Analog” Vacuum Level Bar Graph • Automatic Oil Sensor
- Built-in memory retains all previous settings
- Rugged, Compact Design – About the Size of a Manifold Gauge
- Long Battery Life • Calibration Self Test -- Can be field calibrated with no special equipment
- Ideal for HVAC/R Service and Industrial Use
Specifications
- Range: 0 – 25,000 Microns (3333 Pa, 33.330 mBar, 25,000 mTorr, 25.000 mmHg)
- Vacuum Accuracy: 5% of Reading +/- 5 Microns
- Vacuum Resolution: 1 Micron (1 Pa, 0.001 mBar, one mTorr, 0.001 mmHg)
- Warm-up Time: Instant Response Time: Instant Power:
- 9V Alkaline Battery (9V Lithium recommended for low-temperature operation) Battery Life: Up to 300 Hours
- Operating Temperature: 10°F – 122°F (-12°C – 50°C)
- Weight: 6 oz. (170g) including Battery and Swivel Hook Dimensions: 3.5” x 3” x 1.25” (9cm x 7.5cm x 3cm)
