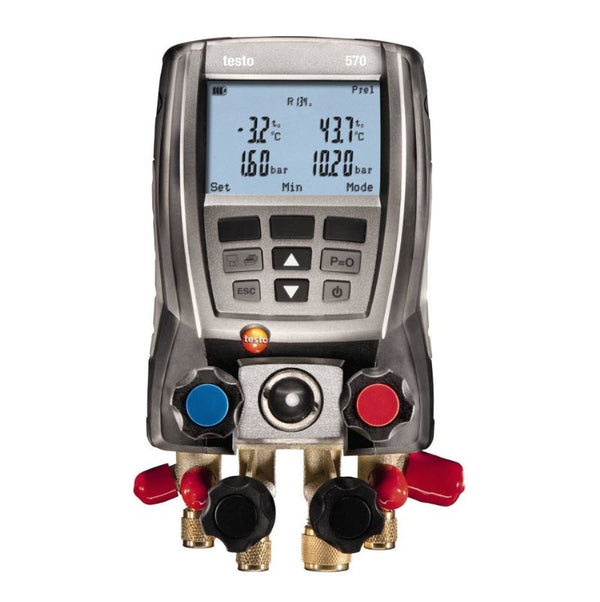

The Testo 570-1 can replace a huge range of measuring tools you would normally need to carry out your work on refrigeration systems and heating pumps in one great unit.
The digital manifold gauge can measure, analyse and log pressure, temperature, and vacuum measurements and save all data from the second the meter is switched on to the final fault analysis of a system. All data is stored safely, and ready to be sent to your customer.
Key Features
- For refrigeration systems and heat pumps to function smoothly and efficiently, the pressure, temperatures, and any system superheating or subcooling need to be monitored.
- The testo 570-1 digital manifold can record or calculate all these values and enable temperature-compensated tightness testing. This is why our 4-way manifold supplies you with the key information you need for the optimum commissioning and maintenance of refrigeration systems or error diagnosis.
- Complex manual comparisons and calculations (e.g., of superheating and subcooling), which would be necessary when using analog manifolds, are not needed.
- Several manual steps and calculations are no longer required, thanks to digital technology.
- Record readings over up to 999 hours: the results are safely stored in the instrument, even for long-term measurements on refrigeration systems or heat pumps
- Real-time recording and graphic presentation of measurement data: as an option, you can purchase the “EasyKool” software, which can be used to present the measurement data clearly. This is particularly useful for identifying sources of error in the event of a fault and taking countermeasures if needed.
- Protocol access and printout: the testo fast printer, available as an option, enables the on-site printout of measurement data. You can also view the measurement protocols in the “EasyKool” software (optional)
- Suitable for all common refrigerants: 40 current refrigerants are stored in the manifold and can be updated if necessary using the optional “EasyKool” software
- Pressure measurement with automatic temperature calculation: high and low pressure is measured via two temperature-compensated pressure sensors, which automatically calculate the temperatures in addition
- Three connections for external temperature probes: connect up to three temperature probes (optional) to calculate superheating and subcooling in parallel and record the ambient temperature (e.g., in cold storage rooms)
- Integrated vacuum measurement: when evacuating refrigeration systems, you can use the 4-way manifold to carry out vacuum measurements. The integrated vacuum sensor enables precise vacuum measurements.
- Automatic heat pump mode: saves you from having to change refrigerant hoses
- Other features, such as temperature-compensated tightness testing and automatic ambient pressure compensation, are included in the digital manifold.
- You also get a clamp temperature probe with the testo 570-1 digital manifold. Simply clamped to the pipe, this reliably measures the surface temperature. Our probes range also includes attachable probes for measuring temperature, current, or oil pressure.
Robust And Convenient
- The testo 570-1 digital manifold is suitable for practical use, largely thanks to its robust 4-way valve block with four connections, four hose parkers, and inspection glass. Maintenance and servicing tasks on refrigeration systems and heat pumps are made easier due to the manageability of the instrument.
- With its solid housing, the digital manifold is protected against impacts. A suspension hook on the back secures the instrument during the measurement. In addition, the manifold has a large, illuminated display so that you will have no problem reading off the readings, even in a dark environment.
- Testo 570-1 digital 4-way manifold set includes a clamp temperature probe, calibration protocol, and batteries.
Package Includes
In this Testo 557s Smart Vacuum Kit, you will receive the following:
- Testo 557s Smart digital 4-way manifold
- 1 x Testo 552i wireless Bluetooth vacuum probe
- 2 x Testo 115i wireless Bluetooth clamp temperature probe
- Protective Case
- Batteries
- Testo Smart App (free download)
- Certificate of conformity and user's manual
Specifications
TECHNICAL DATA
- Storage Temperature -20 to + 60°C
- Operating temperature -10 to +50 °C
- Battery type: 2 AAA micro batteries
- Battery life: 40 hr (less with the use of Bluetooth & Backlit)
- Dimension: 265 x 48 x 19 mm
Instrument Sensor
- Measuring range:-50 to +150 °C
- Accuracy: ±0.5 °C
- Resolution: 0.1 °C / °F / °R
Low-Pressure Probe Measurement
- Measuring range: -14.7 to 725 psi
- Accuracy: ±0.5 % fs
- Resolution: 0.1 psi (0.01 bar)
- Overload: 870 psi
High-Pressure Probe Measurement
- Measuring range -14.7 to 725 psi
- Accuracy ±0.5 % fs
- Resolution 0.1 psi (0.01 bar)
- Overload 870 psi
