The Mini-Split Bib® Kit XL is the larger version of our popular Mini-Split Bib® Kit. This reusable product is designed to fit larger, commercial ductless mini-split air handlers up to 60″ in width. Mini-split installs are the faster-growing category in residential marketplaces, and the installation and maintenance of larger commercial units are catching up fast.
The patented Mini-Split Bib® Kit XL makes it simple to clean large units in place and saves a ton of time. It attaches quickly to mini-split systems 45″ to 60″ wide using special brackets and uses the custom-designed 6mil plastic bib section to create a barrier against the wall and other surroundings. You can easily clean the coils, fan blades, and more with pressurized cleaning systems, like pump sprayers or our CoilJet Portable Coil Cleaning System.
The system is simple to use. Simply slide the brackets in behind the corners of the mini-split air handler. Attach the bib and protective wall plates and tighten them. Then place the bottom of the bib funnel into the included 5-gallon bucket. All coil cleaner, water, and debris are safely funneled into the 5-gallon bucket. No mess and no fuss. And when you are done, dry it and store it in the included bucket for your next use!
FEATURES:
- Fits mini-split systems 45″ to 60″ wide
- Reusable – lower cost of ownership
- Allows quick and easy cleaning of coils, fans blades, blower wheels, and more
- 8 Ft hose funnels all coil cleaner and water safely into included 5-gallon bucket for easy transport and disposal
- Strong six mil plastic bib with sonically welded seams
- Keeps walls and surrounding safe from water and cleaner spray.
APPLICATIONS:
- Commercial mini-split air handlers.

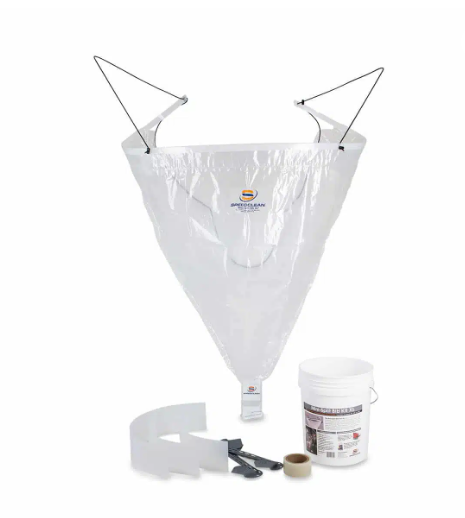

INCLUDES:
- 1 x Adhesive wrap, Brackets, and support rib
- Deflector plates (small and large)
- 1 x High-grade four mil plastic bib with 8ft drain
- 1 x High-grade 5-gallon bucket.
SPECIFICATIONS:
- Dimensions: 58″x16″
- Weight: 2.5 lbs
- Drain length: 8 feet
- Patent: U.S. Patent 6,863,116; 9,259,769.
