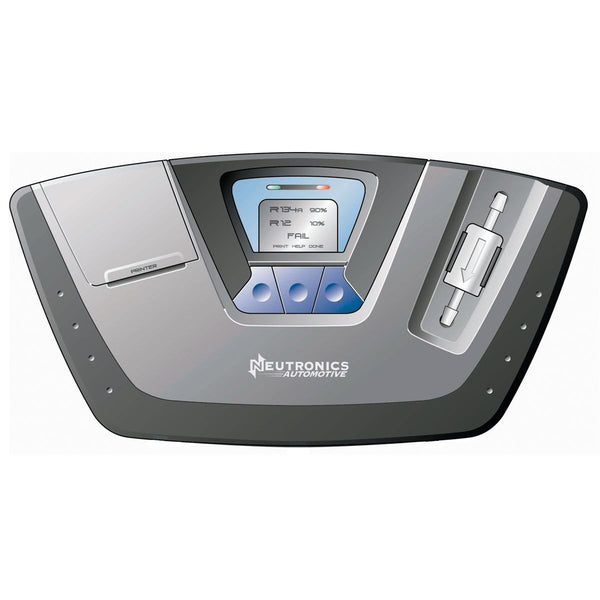

The Neutronics Ultima ID™ RI-2004DX Refrigerant Analyser uses leading-edge infrared technology to provide the fastest refrigerant analysis on the market.
It features Neutronics’ exclusive ‘Blend ID’ software to accurately analyse EPA S.N.A.P. approved refrigerants R12 and R134a and identifies the presence of contaminates R22, HC, and Air.
It even identifies dangerous illegal replacements and blends, including propane and butane.
Key Features
- Optional built-in printer for easy customer billing
- Built-in rechargeable battery pack
- Large graphic display for easy reading/operation
- Rugged portable case
- R1234yf and R134a sample hoses
- R1234yf and R134a adapter fitting for cylinders
- AC Power Supply
Specifications
- Weight: 3.5 kg
- Power requirements: 12-15VDC, Optional battery pack (Internal)
- Output: Digital display and LEDs, Optional printer module (Internal)
- Refrigerant : R12, R134a, R22, HC and Air
- Display: 128 x 64 Pixel Graphing
- Resolution: 0.1%
- Operating humidity: 0-95% RH non-condensing
- Operating temperature: 40°F to 130°F
- Warranty: 1 yr.
- Approvals:SAE J1771, CE, UL
Instructions & Manuals
Neutronics Ultima ID Series Refrigerant Analyser Ri-2004DX Manual
Warranty
12 Months Manufacturer's warranty
