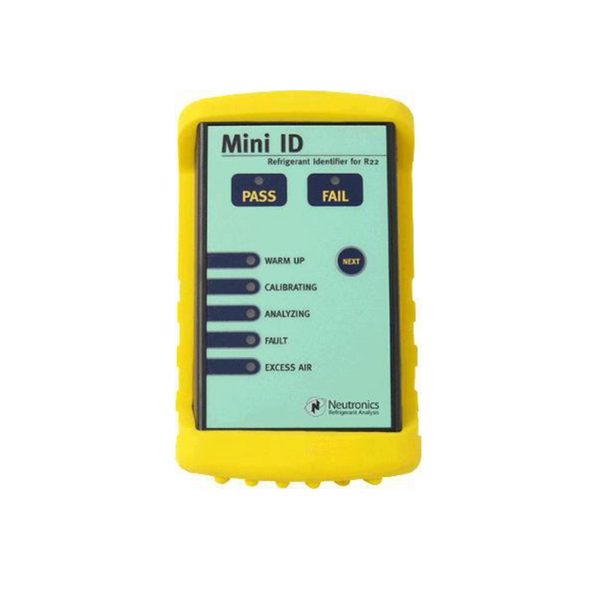

Neutronics Refrigerant Identifier R22 Mini ID is an affordable, compact, hand-held R22 identifier designed to protect your equipment and avoid contamination of your R22 supply.
This tool can be used on HVACR systems or virgin cylinders to ‘PASS’ or ‘FAIL’ R22 before recovery or use.
Key Features
- Easy to use with ‘PASS’ or ‘FAIL’ LED indication
- Compact and lightweight design
- Simple one-button operation
- Step-by-step LED indications of the gas sampling process
- 1/4” Flare Sampling Hose
- Rugged construction and housing
- Hand-held and extremely portable
Specifications
- Weight: 2.0 lb.
- Refrigerant Detected: R22 (Chlorodifluoromethane)
- Accuracy: PASS/FAIL — 95% Pure R22
- Power Requirements: 9 Volt Battery (Optional 110/ 220 VAC)
- Approvals: UL, CE
- User Interface: Membrane type with visual indicators and function key
- Calibration Method: Electric internal pump
- Storage Temperature: 14° to 120° F
- Operating Temperature: 50° to 120° C
- Construction Material: Molded ABS housing/molded rubber sleeve
Instructions & Manuals
Neutronics Refrigerant Identifier R22 Mini ID Manual
Warranty
12 Months Manufacturer's warranty
