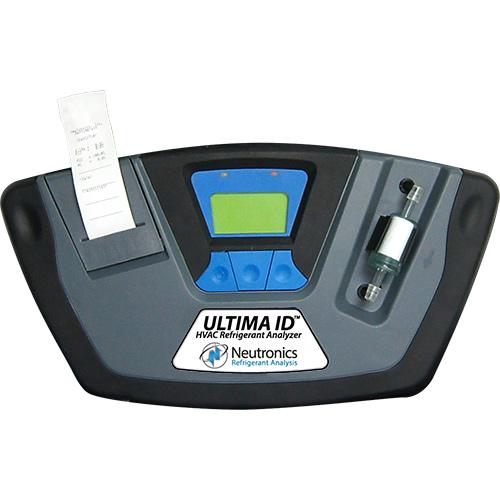

Neutronics Ultima ID RI-2004HV series utilizes non-dispersive infrared (NDIR) technology to determine R12, R134a, R22, hydrocarbons, and air weight concentrations.
Neutronics’ exclusive “Blend-ID” analytical software can also quickly and accurately indicate the presence of R410a blend refrigerant.
Key Features
- Optional built-in printer for easy customer billing
- Optional built-in rechargeable battery pack
- Large graphing display for easy reading/operation
- ¼” Flare Sample hose
- Rugged portable case
Specifications
- Weight: 8.0 lb.
- Power requirements: 110/220 VAC via included adapter 12-15V DC optional battery pack (Internal)
- Output: Digital display and LEDs, Optional printer module (internal) Model No. RI-2004HVP
- Refrigerant : R12, R134a, R22, HC and Probable R410a.
- Display: 128 x 64 Pixel Graphing
- Resolution: 0.1%
- Operating humidity: 0-95% RH non-condensing
- Operating temperature: 40°F to 130°F
Instructions & Manuals
Neutronics Refrigerant Analyser Ultima ID Series RI-2004HV Manual
Warranty
12 Months Manufacturer's warranty
