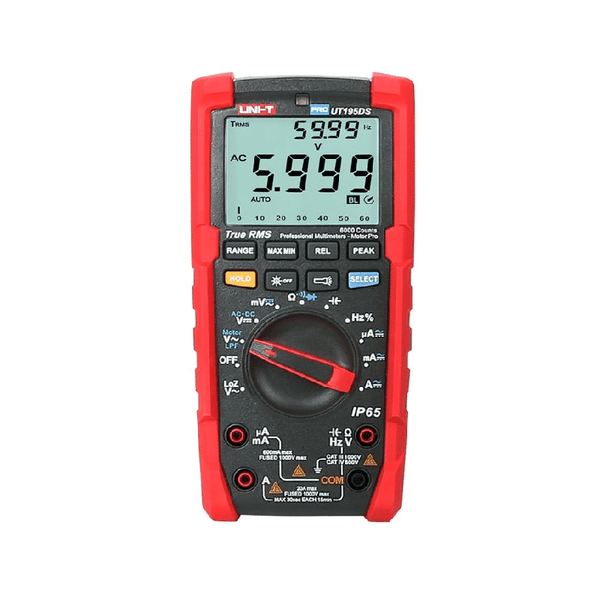

The UT195DS industrial multimeters troubleshooting capability, resolution, and precision are improved to find issues related to motor drives, factory equipment maintenance, and electrical distribution. It is exquisitely designed and easy to operate. The UT195DS model comes with LOZ and a dual display.
Compared with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drives, factory equipment maintenance, electrical distribution, repair, etc. It is exquisitely designed and easy to operate.
FEATURES:
- CAT III 1000V / CAT IV 600V
- IP65 rating, 2m drop-proof
- Large 6000-count LCD screen
- sampling rate
- True RMS
- ACV 750V 5kHz bandwidth
- (AC+DC) or (AV+FREQ) and more, dual-mode
- Flashlight
- Auto LCD backlight controlled by a light sensor (can be turned off)
- LoZ voltage test for ghost voltage measurement
- Motor phase sequence measurement with two probes
- 20A current measurement (max 30 seconds)
- 31 analog bar
- Low pass filter, 1kHz, 3dB attenuation.
INCLUDES:
- 1 x UT195DS, Test probes, Battery, Carrying bag, English manual, and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT195E | UT195M | UT195DS |
| DC voltage (V) | 1000V | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
| AC voltage (V) | 1000V | ±(1.0%+3) | ±(1.0%+3) | ±(1.0%+3) |
| AC+DC | 600V | ±(1.5%+4) | ||
| LoZ ACV | 600V | ±(2%+3) | ±(2%+3) | ±(2%+3) |
| DC current (A) | 20A | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
| AC current (A) | 20A | ±(1%+3) | ±(1%+3) | ±(1%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) |
| Capacitance | 60mF | ±(3%+5) | ±(3%+5) | ±(3%+5) |
| Frequency | 60Hz~10MHz | ±(0.1%+4) | ||
| 60Hz~40MHz | ±(0.1%+4) | ±(0.1%+4) | ||
| Duty cycle | 0.1%~99.9% | ±(2%+5) | N/A | ±(2%+5) |
| Temperature (°C) | -40°C~1000°C | ±(1.5%+4) | ||
| Temperature (°F) | -40°F~1832°F | ±(2%+5) | ||
| Features | ||||
| Display count | 6000 | 6000 | 6000 | |
| Display interface (LCD) | Single | Single | Dual | |
| Measurement sampling rate | times/s | 3 | 3 | 5 |
| Analog bar sampling rate | times/s | 10 | 20 | |
| Analog bar | 31 sections | √ | √ | |
| True RMS | √ | √ | √ | |
| AC voltage frequency response | 45~400Hz | 45~1kHz | 45~5kHz | |
| AC current frequency response | 45~400Hz | 45~1kHz | 45~5kHz | |
| 3-phase motor sequence test | 600V | √ | √ | |
| Low pass filter | 1kHz 3dB attenuation | √ | ||
| Diode/Continuity test | 3.5V | 3V | 3V | |
| Peak hold | 250μs | √ | ||
| Auto/Manual range | √ | |||
| Continuity buzzer | √ | |||
| Low battery indication | √ | |||
| Data hold/Auto power off | √ | |||
| MAX/MIN | √ | |||
| Function selection | √ | |||
| Flashlight/Auto backlight | √ | |||
| General Characteristics | ||||
| Power | 9V battery | |||
| LCD size | 66mm x 51mm | |||
| Product colour | Red and grey | |||
| Product net weight | 437g | |||
| Product size | 195mm x 95 mm x 58mm | |||
| Standard accessories | Test probes, battery, carrying bag, point contact temperature probe (UT195M) | |||
| Standard individual packing | Box, English manual | |||
