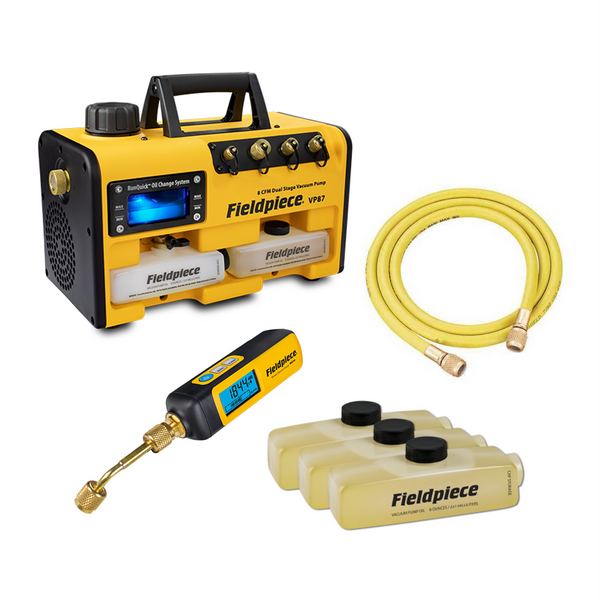

This Fieldpiece HVAC-R exclusive Vacuum Pack for air conditioning and refrigeration includes:
- 1 x Fieldpiece VP87 227 L/M 8 CFM A2L Certified 2 Stage Vacuum Pump - VP87INT
- 1 x Fieldpiece Wireless Probe Vacuum Gauge with LCD Display - MG44
- 1 x Fieldpiece High Grade Vacuum Pump Oil - OIL8x3
- 1 x Imperial Standard Charging Hose Yellow 240cm 1/4 SAE - 808-MRY
Fieldpiece VP87 227 L/M 8 CFM A2L Certified 2 Stage Vacuum Pump - VP87INT
The NEW Fieldpiece VP87INT High-Efficiency Vacuum Pump
- 8 CFM (227 l/m) flow rate with 15 microns ultimate vacuum
- 3/4 HP DC motor for power-to-weight and low voltage operation
- RunQuick™ Oil Change System offers on-the-fly oil changes in seconds
- Extra oil bottle storage
- Includes 2 x 237ml Oil filled RunQuick Oil Cartridges
- Backlit oil reservoir to view condition of oil and system
- Water-resistant to withstand direct rain
- Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2” for easy hose connections
- Sturdy base stays upright
- Small footprint – 1,346 cubic inches
- Quarter-turn gas ballast with LED indicator
- Convenient, removable cord storage
- Error messages: Indicate wrong power source or other errors
- Suitable for A2L class refrigerants
- R32, R1234YF, R1234ZE, R512A, 419B, 439A and other
Fieldpiece Wireless Probe Vacuum Gauge with LCD Display - MG44
The NEW MG44 Micron Gauge Impact and Weather Resistant designed for the field
- Confidently perform evacuations with a reliable, leak-proof seal.
- Reversible angled coupler and new cylindrical design are easier to fit into tight spaces.
- There are three ways to use:
- View from up to 300 metres away (line of sight) via the Job Link® mobile app
- View on the Fieldpiece SMAN™ Refrigerant Manifold SM380INT or SM480INT
- View direct from the MG44’s display.
- Three ways to view the new larger backlit LCD screen is easier to read and its dot-matrix display shows more info including:
- bar graph
- rate
- rate meter
- IP54-rated weather-resistant.
- Rugged over-molded construction for extreme impact resistance.
- Range 50 to 25,000 microns
- Units of measure: microns (µm) of mercury, mmHg, mbar, mTorr, Torr, and Pascals
Fieldpiece High Grade Vacuum Pump Oil - OIL8x3
Oil to suit the VPX7, VP87 and VP67.
Need oil you can count on? Our vacuum pump oil, OIL8X3, is just what you need. Conveniently available in three eight-ounce containers, our specially-designed vacuum pump oil is specifically devised to function with the latest generation of vacuum pumps – VPX7, VP87 and VP67. Pull vacuums quickly, confidently and cleanly.
- Three 250 ml containers of vacuum pump oil
- Low vapor pressure ideal for pulling vacuums
- Wide temperature range helps oil perform in any conditions
- Highly refined for consistent performance
- Ensures proper sealing and lubrication
- Designed to work with our RunQuick® Oil Change System
Imperial Standard Charging Hose Yellow 240cm 1/4 SAE - 808-MRY
All Imperial® PolarShield® charging hoses are UL recognized a nd meet UL-1963, SAE-J2196 & EPA requirements for strength, pressure and refrigerant permeation.
Rugged, Multi-Refrigerant Nylon Barrier Construction - PolarShield hoses are compatible with all CFC, HFC & HCFC refrigerants (R22, R32, R410A, R404A, R407C, R134a).
High-Pressure - PolarShield hoses feature 800 PSI working pressure and 4,000 PSI burst pressure with a 5-to-1 safety factor.
- 1 x Yellow 8’ (96") with 1/4" SAE Fittings
WARRANTY
1 Year from Date of Purchase (excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)
