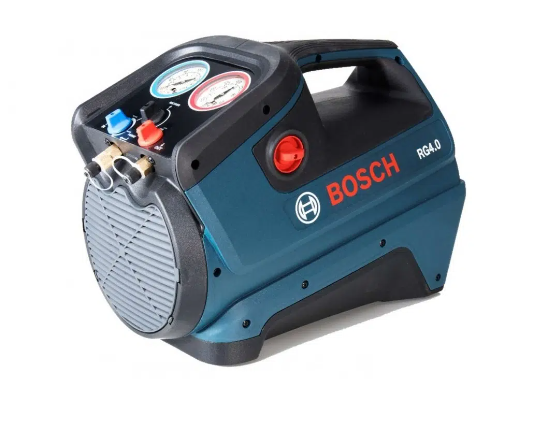

Tool for professional applications.
FEATURES:
- Tool for professional applications
- Robust and impact resistant
- Stable and reliable operation
- Single cylinder compressor stable, reliable and oilless
- Handle over-moulded with rubber (TPE) for a reliable grip
- Bottom mount assembly and layout for enhanced serviceability
- Protective cover keeps dirt away from gauges and controls
- Electrical and refrigerant line connections on opposite ends
- Specially designed mounts and feet to provide stability, noise and vibration isolation
- High displacement electrical fan draws fresh air first through the condensor for improved recovery rates in extreme conditions
- Low-pressure switch for smooth operation. Cuts off when ideal vacuum level is reached thereby preventing unnecessary operation and reducing wear
- Automatic reset HP cut-out protects the equipment and operator
- Suitable for nearly all commonly used refrigerants incl. A2L + A3.
INCLUDES:
1 x Recovery unit and 12-month warranty.
SPECIFICATIONS:
Model | RG 4.0 | |
| Rated voltage | RG 4.0A 230 VAC +/- 10 % | |
| Rated frequency | 50 /60 Hz | |
| Power | 1/2HP / 360 Watt | |
| Rated current | RG 4.0A 5 A | |
| Liquid capacity, maximum by push pull | 410,5 kg/hr | |
| Liquid capacity, maximum capacity rates | 122,1 kg/hr | |
| Gas capacity maximum | 10,7 kg/hr | |
| Compressor | Single cylinder, oil-less | |
| Weight | 14.6 Kg | |
| Circuit breaker | RG 4.0A 8 A | |
| Maximum working pressure | 38.5 bar | |
| Dimensions (L x B x H) | 450 x 250 x 350 mm | |
| Safety device | Safety pressure switch with automatic reset 550 PSI (38.5 bar) | |
| Operating ambient temperature range | 0 – 50 °C | |
| Suitable refrigerants | AHRI cat. / Kat. / cat. III, IV, V + A2L, A3 |
