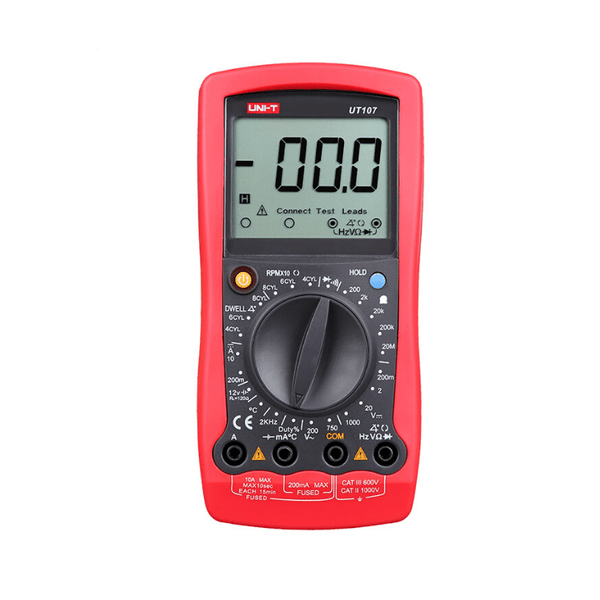

The UNI-T digital automotive multimeter provides sophisticated measurement technology at a very good price/performance ratio. The automotive Multimeter UT107 helps diagnose problems with an automobile's electronic components. This part briefly introduces how the Meter UT107 is used to diagnose any trouble with a fuse, switch, solenoid, relay, starting and charging systems, ignition system, fuel system, and engine sensor.
FEATURES:
- CAT III 600V / CAT II 1000V rating
- 2000 Display Count
- Temperature Measurement
- Load-Free Battery Testing
- Battery Power Consumption Test when the Engine Is off
- Switch Testing
- Solenoid or Relay Testing
- Trigger Voltage Battery Load Testing
- Voltage Drop Testing
- Continuity Testing
- Dwell/Tach Testing
INCLUDES:
- 1 x UT107, Battery, test leads, holster, point contact temperature probe and a 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT107 |
| DC voltage (V) | 200mV/2V/20V/1000V | ±(0.5%+2) |
| AC voltage (V) | 200V/750V | ±(0.8%+5) |
| DC current (A) | 200mA/10A | ±(0.8%+5) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/20MΩ | ±(0.8%+5) |
| Frequency (Hz) | 2kHz | ±(2%+5) |
| Temperature (°C) | -40°C~1000°C | ±(2%+8) |
| Features | ||
| Display count | 2000 | |
| Manual range | √ | |
| Battery test | 12V | ±(3%+5) |
| Duty cycle | 1%~90% | ±(4%+5) |
| Input impedance for DCV | Around 10MΩ | √ |
| Dwell/Tach | 4CYL/6CYL/8CYL | ±(3%+5) |
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| Display | 60mm x 54mm | |
| Product color | Red and grey | |
| Product net weight | 351g (including holster) | |
| Product size | 179mm x 88mm x 39mm | |
| Standard accessories | Battery, test leads, holster, point contact temperature probe | |
| Standard individual packing | Box, English manual | |
