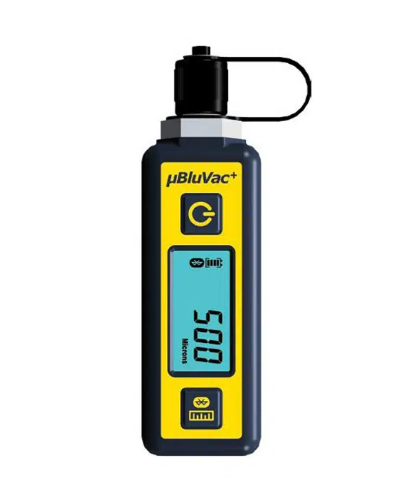

The low-cost AccuTools BluVac+ Micro Wireless Digital Micron Gauge represents a breakthrough in economical vacuum measurement. Small and light enough to fit in a shirt pocket, the BluVac+ Micro has Bluetooth Smart wireless capability and is a full-featured basic micron gauge that utilizes our famous patented BluVac+ technology to provide the highest accuracy and dependability at the lowest possible cost.
The BluVac+ Micro accurately and quickly measures vacuum in Microns, Pascals, Millibar, mmHg, and Torr with a resolution down to 1 micron. Sporting a large back-lit display, the BluVac+ Micro operates for up to 100 hours on two AAA batteries and at temperatures below freezing.
The BluVac+ Micro can be operated stand-alone or in conjunction with an iOS or Android compatible app.
Possessing the same accuracy and reliability of the BluVac+ Pro gauge, the BluVac+ Micro is ideal for budget-conscious technicians without sacrificing performance.
Innovative Oil Sensor and Self-Diagnostics ensure accuracy. The BluVac+ series of Micron Gauges are the only field-calibratable vacuum gauges that require no special equipment for calibration.
FEATURES:
- Bluetooth smart? wireless capability
- 0 to 25,000 micron range with 1 micron resolution
- Measures vacuum in Microns, Pascals, Millibar, mmHg, and Torr
- Large, high-visibility back-lit LCD display
- Long battery life ? up to 100 Hours on Two ?AAA? alkaline batteries
- Wide operating temperature range ? operates below freezing
- Automatic oil sensor
- Rugged, compact design ? fits in a shirt pocket
- Calibration Self Test ? can Be Field Calibrated with no special equipment.
- Sensor withstands overpressure up to 500 PSI
- Ideal for HVAC/R Service, Industrial, and scientific use.
APP FEATURES:
- View vacuum on digital gauge or graph
- Leak check feature
- Record evacuation process
- Export as graphical PDF
- Export as comma-delimited CSV.
INCLUDES:
1 x BluVac+ Micro Wireless Digital Micron Gauge, Female-to-Female ?? Flare Coupler, Storage/Carrying Pouch, Batteries (Two ?AAA? Alkaline), Instruction Manual.
SPECIFICATIONS:
| Range | 0 ? 25,000 Microns (3330 Pa, 33.3 mBar, 25 mmHg, 25 Torr) |
| Vacuum Accuracy | ?5% of Reading ? 5 Microns |
| Vacuum Resolution | 1 Micron at less than 1000 Microns 10 Microns between 1,000 and 10,000 Microns 100 Microns between 10,000 and 25,000 Microns |
| Maximum Overpressure | 1000 PSI |
| Warm-up Time | Instant |
| Response Time | Instant |
| Power | Two ?AAA? Alkaline Batteries |
| Battery Life | Up to 100 Hours |
| Operating Temperature | 10?F ? 122?F (-12?C ? 50?C) |
| Weight | 2.7 oz. (77g) Including Batteries |
| Dimensions | 4.3? x 1.3? x 1? (11cm x 3.3cm x 2.5cm) |
| Vacuum Port Fitting | ?? Male Flare Anodized Aluminum for Weight & Durability Captured Dust Cap Included |
| U.S. Patent Nos. | 8,504,313 and 8,768,633 |
