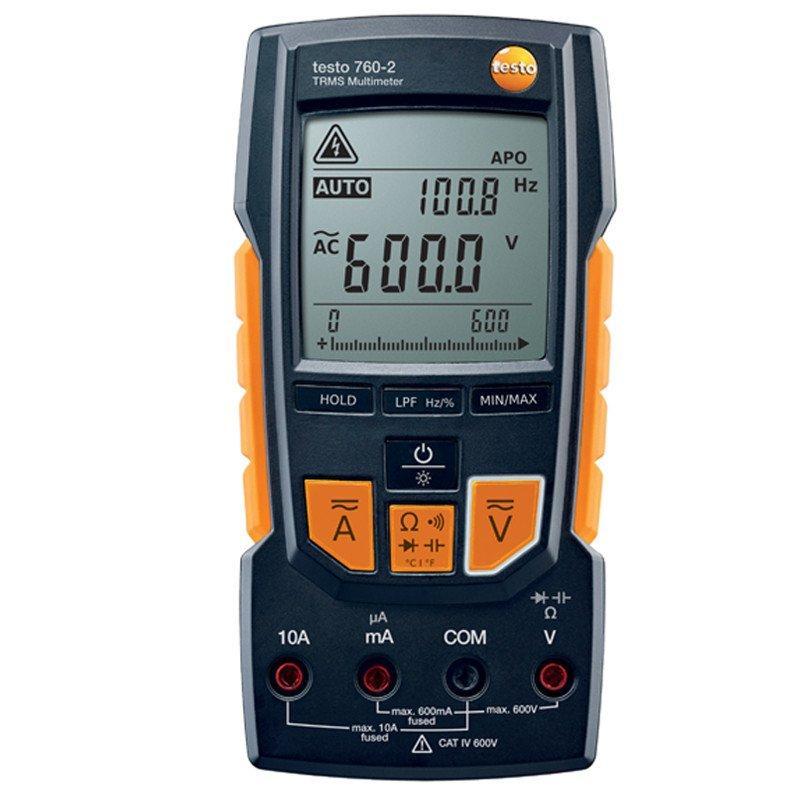

Testo 760-2 Digital Multimeter - 0590 7602
The testo 760-2 digital multimeter is the allrounder for all important electrical measuring tasks. Thanks to the automatic detection of measurement parameters, it offers the greatest possible reliability for every application. Using this digital multimeter, you can also measure current in the µA range and determine the true root mean square.
The testo 760-2 digital handheld multimeter means you can measure electrical parameters more easily and reliably than ever. In contrast to other multimeters, the testo 760-2 automatically detects the appropriate measurement parameter via the socket assignment – and therefore rules out any dangerous incorrect settings.
It is not operated conventionally by a dial but with illuminated function keys. This means you can easily control the measuring instrument with just one hand. The large, illuminated display shows the readings clearly.
The testo 760-2 digital multimeter has the most important functions for measuring current, voltage, and resistance. The measurement of current strength is also possible in the µA range thanks to the larger measuring range. And the integrated low-pass filter achieves more accurate measurement results on frequency converter-controlled motors.
Temperatures can also be measured with this multimeter in addition to electrical parameters.
BONUS: Includes a set of test leads and batteries.
Key Features:
- True root mean square measurement - TRMS
- Current measurement in the µA range
- Integrated temperature adapter
- Low-pass filter for accurate measurement results on frequency converter-controlled motors
Specifications
TECHNICAL DATA |
TESTO 760-1 |
TESTO 760-2 |
TESTO 760-3 |
| True RMS | - | YES | YES |
| Basic accuracy | YES | 0.1 % | 0.1 % |
| AC/DC voltage measuring range | 0.1 mV to 600 V | 0.1 mV to 600 V | 0.1 mV to 1,000 V |
| AC/DC current measuring range | 1 mA to 10 A | 0.1 μA to 10 A | 0.1 μA to 10 A |
| Resistance measuring range | 0.1 to 40 MΩ | 0.1 to 60 MΩ | 0.1 to 60 MΩ |
| Frequency measuring range | 0.001 Hz to 500 kHz |
0.001 Hz to 10 MHz |
0.001 Hz to 30 MHz |
| Capacitance measuring range | 0.001 nF to 200 μF |
0.001 nF to 30,000 μF |
0.001 nF to 60,000 μF |
| Temperature measuring range | - | -20 to +500°C | -20 to +500°C |
| Continuity testing | YES | YES | YES |
| Diode test | YES | YES | YES |
| Display (counts) | 4,000 | 6,000 | 6,000 |
| Overvoltage category | CAT4/300 V CAT3/600 V |
CAT4/600 V CAT3/1,000 V |
CAT4/600 V CAT3/1,000 V |
| Protection class | IP 64 | IP 64 | IP 64 |
| Operating temperature | -10 to +50°C | -10 to +50°C | -10 to +50°C |
| Storage temperature | -15 to +60°C | -15 to +60°C | -15 to +60°C |
| Dimensions (L x W x H) | 167 x 84 x 45 mm | 167 x 84 x 45 mm | 167 x 84 x 45 mm |
| Weight | 268 g | 268 g | 268 g |
| Warranty | 2 years | 2 years | 2 years |
| Authorizations | TÜV, CSA, CE | TÜV, CSA, CE | TÜV, CSA, CE |
| Standards | EN 61010-1, IEC 61326 |
EN 61010-1, IEC 61326 |
EN 61010-1, IEC 61326 |
Instructions & Manuals
Testo 760-2 Digital Multimeter - 0590 7602 Manuals
2 Years
Testo 760-2 Digital Multimeter - 0590 7602
OVERALL A GOOD QUALITY MULTI METER FOR A REASONABLE PRICE .
