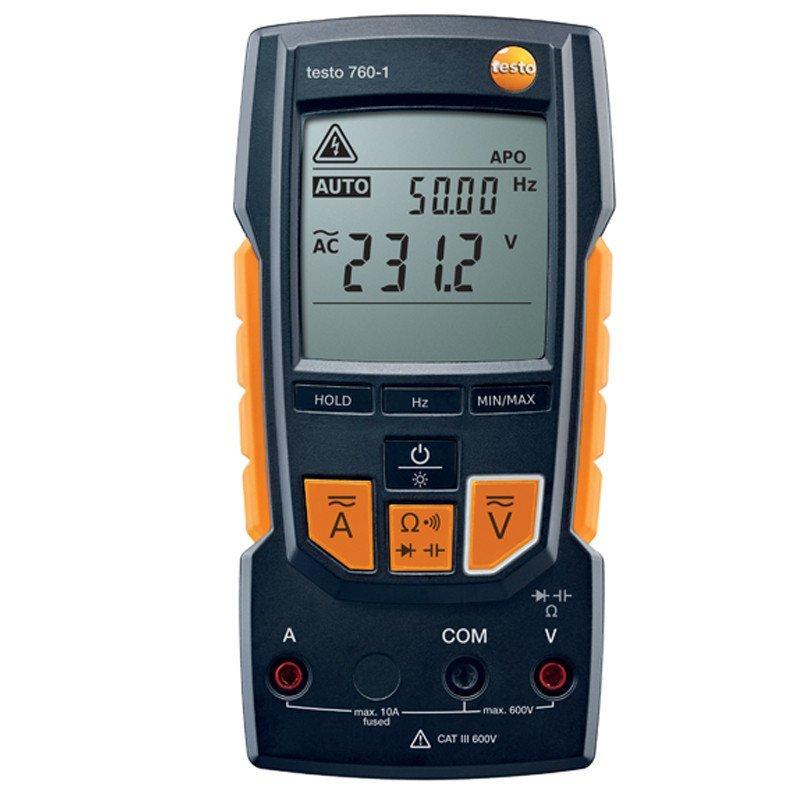

Testo 760-1 Digital Multimeter - 0590 7601
No dial, no mistakes. The testo 760-1 digital multimeter gives you an easier and more reliable measurement of all important electrical parameters than ever before. Assignment of the measuring sockets enables the automatic detection of measurement parameters. You don't need to make any adjustments – and you can't make any mistakes.
You depend on reliable measuring instruments when measuring electrical parameters such as current, voltage, or resistance. The testo 760-1 hands you a digital multimeter that sets new standards in terms of reliability.
Compared to standard multimeters on the market, with the testo 760-1, there is no need first to select the measuring sockets and then the measurement function. The instrument detects the appropriate measurement parameter via the socket assignment all on its own – and so rules out any dangerous incorrect settings.
The operation of the multimeter is easier and more modern than ever. The traditional dial is replaced by function keys, enabling you to control the instrument with just one hand. And thanks to the large, illuminated display, you can see your readings. The testo 760-1 has the most important functions for your daily measuring tasks and is the ideal entry-level instrument in the digital multimeter class.
BONUS: Includes a free set of test leads and batteries.
Key Features:
- Easy, reliable operation through automatic measurement parameter detection
- Prevents incorrect settings
- Suitable for almost all electrical measuring tasks
- Clear, illuminated display
Specifications
TECHNICAL DATA |
TESTO 760-1 |
TESTO 760-2 |
TESTO 760-3 |
| True RMS | - | YES | YES |
| Basic accuracy | YES | 0.1 % | 0.1 % |
| AC/DC voltage measuring range | 0.1 mV to 600 V | 0.1 mV to 600 V | 0.1 mV to 1,000 V |
| AC/DC current measuring range | 1 mA to 10 A | 0.1 μA to 10 A | 0.1 μA to 10 A |
| Resistance measuring range | 0.1 to 40 MΩ | 0.1 to 60 MΩ | 0.1 to 60 MΩ |
| Frequency measuring range | 0.001 Hz to 500 kHz |
0.001 Hz to 10 MHz |
0.001 Hz to 30 MHz |
| Capacitance measuring range | 0.001 nF to 200 μF |
0.001 nF to 30,000 μF |
0.001 nF to 60,000 μF |
| Temperature measuring range | - | -20 to +500°C | -20 to +500°C |
| Continuity testing | YES | YES | YES |
| Diode test | YES | YES | YES |
| Display (counts) | 4,000 | 6,000 | 6,000 |
| Overvoltage category | CAT4/300 V CAT3/600 V |
CAT4/600 V CAT3/1,000 V |
CAT4/600 V CAT3/1,000 V |
| Protection class | IP 64 | IP 64 | IP 64 |
| Operating temperature | -10 to +50°C | -10 to +50°C | -10 to +50°C |
| Storage temperature | -15 to +60°C | -15 to +60°C | -15 to +60°C |
| Dimensions (L x W x H) | 167 x 84 x 45 mm | 167 x 84 x 45 mm | 167 x 84 x 45 mm |
| Weight | 268 g | 268 g | 268 g |
| Warranty | 2 years | 2 years | 2 years |
| Authorizations | TÜV, CSA, CE | TÜV, CSA, CE | TÜV, CSA, CE |
| Standards | EN 61010-1, IEC 61326 |
EN 61010-1, IEC 61326 |
EN 61010-1, IEC 61326 |
