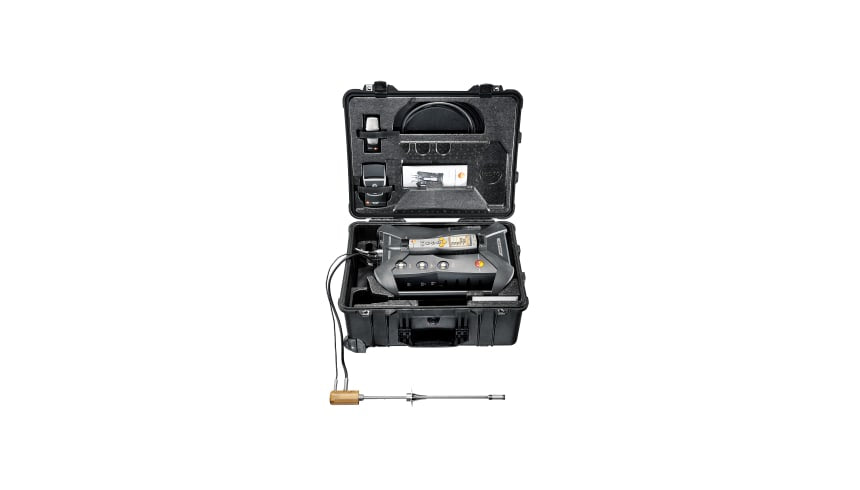

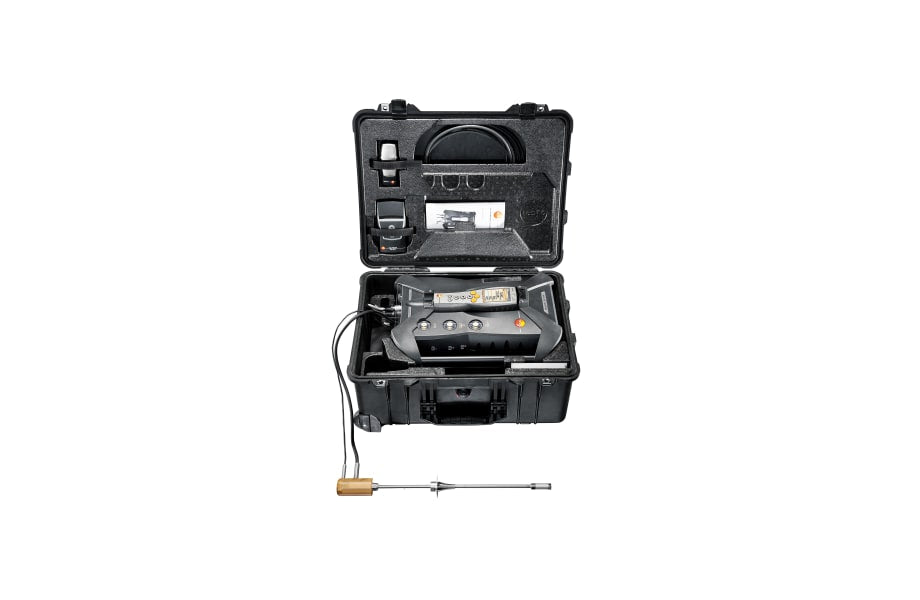

Testo 350 MARITIME Portable Emission Analyzer

The Testo 350 MARITIME is a specialist portable emission analyser built for diesel ship engines, providing accurate readings for critical exhaust gases like O₂, CO, and NOₓ. This isn't just another analyser; it's engineered to meet the stringent demands of maritime conditions and regulatory compliance.

Having worked on a few marine systems, I know how brutal the environment can be, so having gear that's actually built for the salt and vibration makes a real difference to its lifespan and reliability. It's designed to streamline on-board verification surveys and NOx compliance checks, saving time and hassle compared to older, more complex methods.

Best For

• Marine engineers and crew conducting emission surveys on diesel ship engines.
• Compliance officers verifying MARPOL Annex VI and NOₓ Technical Code requirements.
• Maintenance teams needing quick, accurate exhaust gas analysis.

Compatibility

The Testo 350 MARITIME is specifically engineered and type-approved for emission measurement on marine diesel engines. It measures gaseous exhaust gas concentrations of NO, NO₂, SO₂, CO, CO₂-(IR), and O₂. This analyser is optimised for marine fuels and meets the requirements for on-board verification surveys in accordance with the NOₓ Technical Code 2008 and MARPOL Annex VI compliance checks.

If you're running a different model or need other sensors (e.g., total hydrocarbons), this specific maritime-approved configuration may not be suitable. For broader applications, consider the standard Testo 350 emission analyser which offers more sensor customisation.

Features

• Regulatory Approved: World's first portable analyser approved for MARPOL Annex VI and the NOₓ Technical Code.
• Multi-Gas Measurement: Accurately reads O₂, CO, NOₓ (NO, NO₂), SO₂, and CO₂-(IR) concentrations.
• Fuel Sulphur Content: Determines fuel sulphur content via SO₂/CO₂ ratio, as per MEPC 184 (59).
• Robust Marine Design: Housed in a durable protective case with trolley function, built for harsh marine environments.
• Certified Quality: Comes with DNV, NK, MED (Module B & D) certificates, ensuring reliable performance at sea.
• Integrated Data Management: Features Bluetooth®, USB, and IR interfaces for easy data transfer and documentation.

Technical Specifications

What's in the Box

• Testo 350 MARITIME V2 Analyser Unit (equipped with NO, NO₂, SO₂, CO, CO₂-(IR), O₂ sensors)
• Integrated gas conditioning, measuring range extension (for SO₂), fresh air valve
• Differential pressure sensor, K NiCr-Ni and S Pt10Rh-Pt temperature probe inputs
• Testo data bus connection, rechargeable battery, integrated combustion air probe (NTC)
• Trigger input, measurement data memory, and USB interface
• Testo 350 MARITIME V2 Control Unit

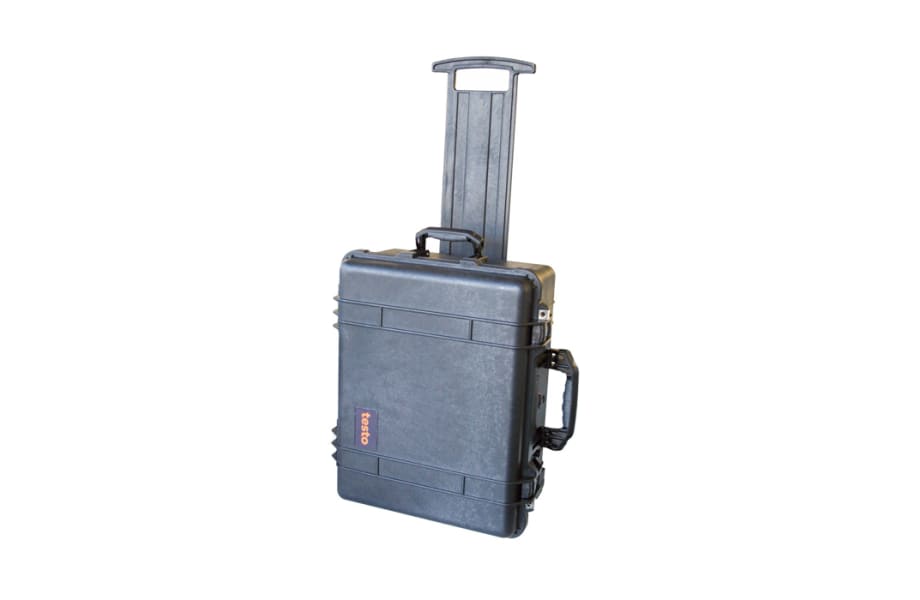

• Robust protective case with trolley function
• Flue gas probe for industrial engines (335 mm immersion depth, Tmax. +1,000°C, special hose for NO₂-/SO₂ measurements, 4 m length)
• Connection cable between analyser and Control Unit (5 m length)
• Testo fast printer with wireless infrared interface, 1 roll thermal paper, 4 mignon batteries
• Testo 610 humidity/temperature measuring instrument

Using It on the Job

1. Pre-Check: Ensure the analyser unit and control unit are charged and all probes/hoses are securely connected and free from damage.
2. Probe Insertion: Carefully insert the flue gas probe into the exhaust stack, ensuring proper immersion depth for accurate sampling (up to 335 mm immersion).
3. Start Measurement: Power on the control unit and follow the on-screen prompts to initiate the measurement sequence for O₂, CO, NOₓ, SO₂, and CO₂.
4. Monitor Readings: Observe real-time readings, ensuring they stabilise. The analyser handles gas conditioning and range extension for reliable data capture.
5. Document Results: Use the integrated data memory, USB, Bluetooth®, or the included fast printer to record and document all emission data for compliance and reporting.
6. Post-Measurement: Carefully remove the probe, allow it to cool, and clean all components as per the instruction manual for longevity.

Limitations & Safety Notes

• This device is specifically type-approved for marine requirements; it cannot be configured with other sensors for different testing scenarios (e.g., total hydrocarbons).
• Always ensure engine safety protocols are followed when working with exhaust systems, including proper ventilation and avoiding contact with hot surfaces.
• Refer to the instruction manual for detailed operational limits, maintenance procedures, and specific safety guidance.
• The lead time for this product can be up to 6 weeks as it's manufactured to order, and all sales are final.

Tradie Pro Tip

Before heading out to a job on the water, always double-check your calibration gas cylinders and make sure the analyser's battery is fully charged. There's nothing worse than getting halfway through a survey offshore and realising you're running on empty or can't verify accuracy.

Pair With

For comprehensive engine diagnostics, consider pairing this analyser with a robust engine vibration meter and a high-temperature infrared thermometer to monitor other critical parameters. Check out our range of Testo measuring instruments for related gear.
