Testo 316-3 Refrigerant Leak Detector - 0563 3163
$657.95
$822.95
Advanced Refrigerant Leak Detector for Swift Identification of Refrigerant Gas Leak
The Testo 316-3 Refrigerant Leak Detector is a portable device designed to detect leaks in refrigeration systems. It uses a heated diode sensor to detect refrigerant gases, including R22, R134a, R404A, R410A, R507, and others.
The Testo 316-3 has a sensitivity range of 0.15 oz/yr (4 g/a) to 0.02 oz/yr (0.6 g/a), detecting even small leaks. It also features an audible and visual alarm that alerts the user to the presence of a leak detection.
The Testo 316-3 has a sensitivity range of 0.15 oz/yr (4 g/a) to 0.02 oz/yr (0.6 g/a), detecting even small leaks. It also features an audible and visual alarm that alerts the user to the presence of a leak detection.
- A patented heated diode sensor provides excellent sensitivity
- High/low sensitivity adjustment and automatic zeroing
- Easy one-button operation
Specifications
TECHNICAL DATA |
|
| Storage Temperature | 0 to +50 °C |
| Operating Temperature | -20 to +50 °C |
| Battery Life | 6 hours continuous |
| Length of Probe ( Goose Neck) | 370 mm |
TECHNICAL DATA |
|
| Meas. parameter | g/a |
| Detectable | NH3, R134a, R22, R404a, H2 and all common refrigerants such as CFC, HCFC, HFC NH3 (separate sensor head) |
|
Lower reaction threshold |
3 g/a |
Technical Data
| General technical data | |
|---|---|
|
Operating humidity |
20 to 80 %rH |
|
Weight |
18 oz. (incl. batteries) / 500 g (incl. batteries) |
|
Dimensions |
10.6 x 2.4 x 2.4 in. / 270 x 60 x 61 mm |
|
Operating temperature |
-0.4° to 122.0 {٪S2} / -18 to +50 °C |
|
Product colour |
Black |
|
Detectable |
R22; R134a; R404A; R410A; R507; R438A; all CFCs, HFCs, and HCFCs |
|
Life-time sensor |
Approx. 80 to 100 h (corresponds to approx. 1 year) |
|
Sensitivity |
4 g/a (0.15 oz/a) |
|
Standards |
EN 14624:2012; SAE J1627 |
|
EU-/EG-guidelines |
2004/108/EG |
|

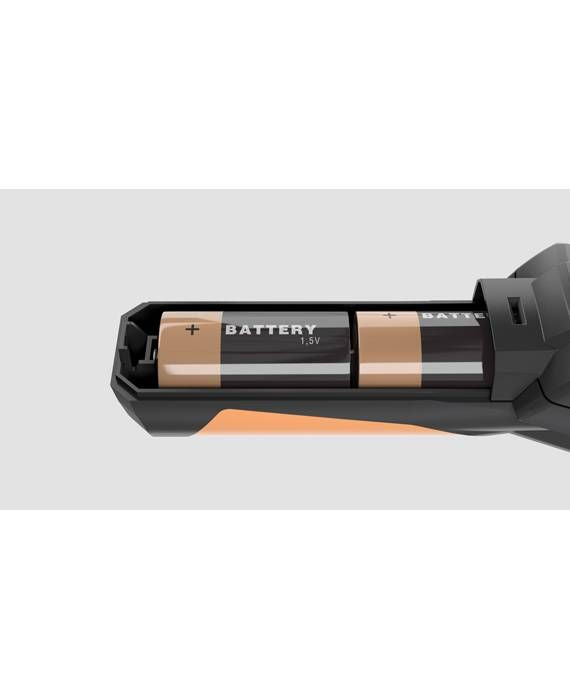

Battery type |
2 x D |
|
Battery life |
16h permanent operation |
|
Storage temperature |
32.0° to 122.0 {٪S2} / 0 to +50 °C |
Kit includes
- testo 316-3

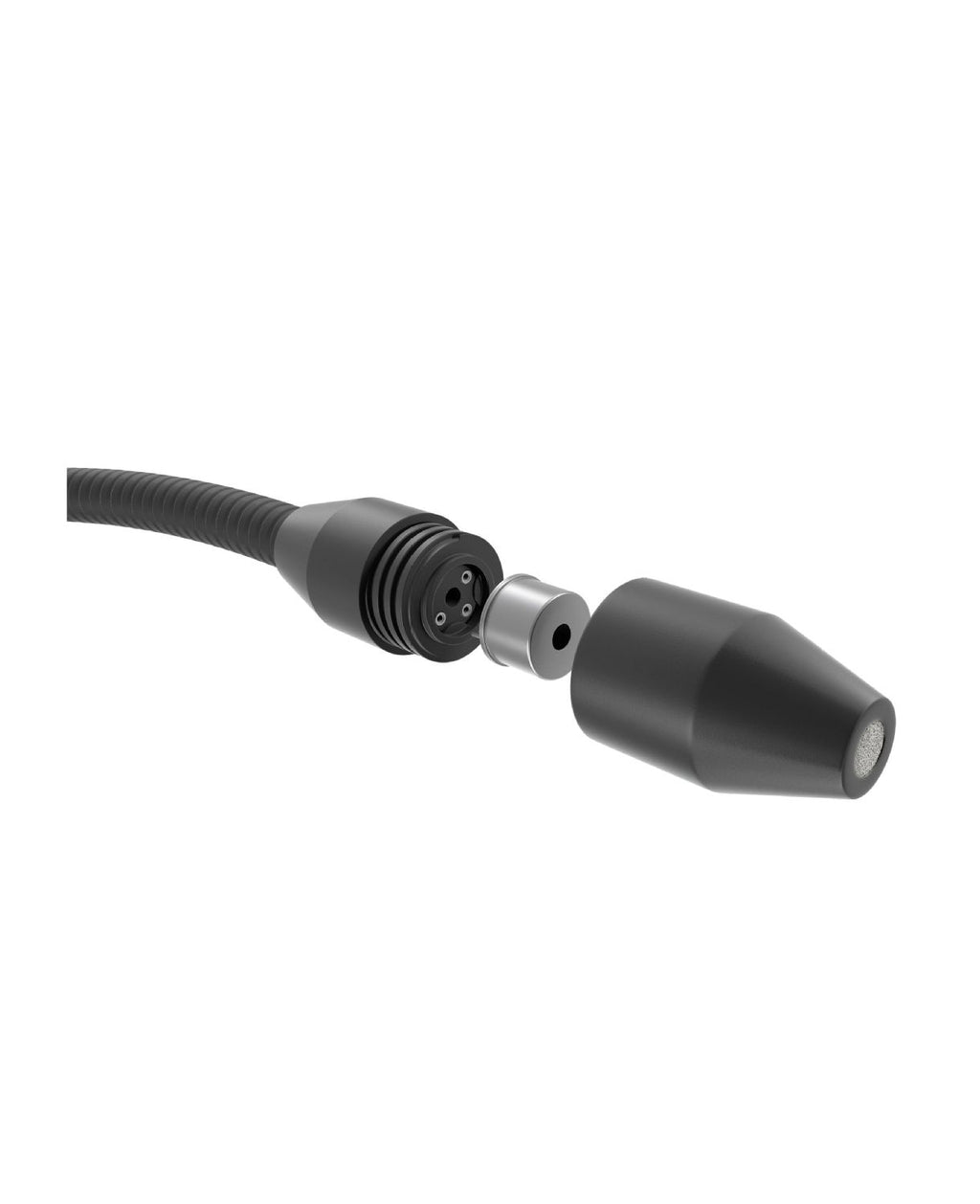

- Sensor head
- Transport caseF
- Calibration certificate
- Batteries, and filter
Warranty
- 2 Years warranty
Manual
Testo 316-3 Refrigerant Leak Detector - 0563 3163 User Manual
