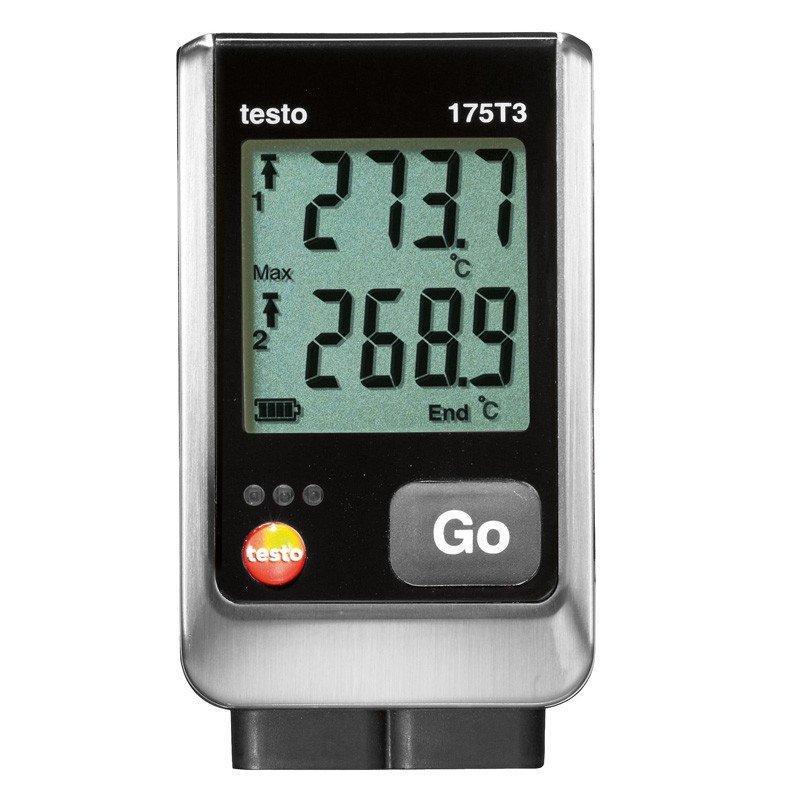

Testo 175T3 Dual Thermocouple Logger - Precision Temperature Monitoring Device
The Testo 175T3 is a 2-channel (2x external probes) data logger for the parallel monitoring and recording of two temperature measurements while being able to measure temperatures from -50 °C up to +1000 °C. The 175T3 data logger is ideal for demanding applications requiring extreme temperature monitoring.
The 175 T3 temperature logger has two connections for external thermocouple probes (type T or type K). This means the data logger is ideally suited for recording temperature on two channels.
Key Features
- Large memory, 1 Million Readings
- Data transfer is possible using the USB port or SD card (Optional)
- Simple and large easy-to-read display
- Free data logger software available for download
- IP65 protection class
STATE-OF-THE-ART MEASURING TECHNOLOGY, HIGH LEVEL OF DATA SECURITY FOR FLEXIBILITY AND EASY MEASUREMENT DATA ANALYSIS
You can select the external thermocouple probes from our wide range of probes and order them with the data logger. This gives you flexibility and means to decide the best probe suited for your application.
Our range includes surface, air, and immersion/penetration probes. The measuring range and accuracy depend on the thermocouple probes selected. In principle, measuring from -50 °C to +1,000 °C with an appropriate probe is possible.
You can display the current measuring values, min/max values, set limit values, violations of limit values, and remaining battery life on the clear display. This means you can read important values at any time and do not need to resort to a read-out of the temperature logger on the PC immediately every time you want to do a quick data check.
The long battery life of up to 3 years and the large measurement data memory, which records up to 1 million readings, are particularly convenient for users: because only relatively infrequent temperature logger reading is needed, even with shorter measurement intervals. You can use standard batteries (AAA) to run and replace the data logger yourself. Particularly practical when temperatures are to be recorded in a polluted and dust-laden environment: The temperature logger has protection against dust ingress as well as water spray and jets according to protection class IP 65.
PROGRAMMING AND ANALYSIS WITH THE TEMPERATURE DATA LOGGER
You need software for programming and reading your temperature data logger and analyzing measurement data on the PC. We offer three different software versions for you to choose from:
- Comfort Basic software – available as a free download – enables fast data logger programming and easy measurement data analysis.
- ComSoft Professional software – available as an option – offers a variety of possibilities for detailed analysis of measurement results.
- ComSoft CFR 21 Part 11 software – available as an option – can be used for special requirements according to CFR 21 Part 11 in the pharmaceutical sector.
Specifications
TECHNICAL DATA |
|
| Measuring range | -50 to +400 °C ( Type T | External Probe ) |
| -50 to +1000 °C ( Type K | External Probe) | |
| Operating Temperature | -20 to +55 °C |
| Memory | 1 Million Readings |
| Accuracy | ±(-50 to +70 °C) | ±0.7 % of mv (+70.1 to +1000 °C) - ( Type T) |
| ±(-50 to +70 °C) | ±0.7 % of mv (+70.1 to +1000 °C) - ( Type K) | |
| Resolution | 0,1 °C |
