Javac Split System Installation Kit – Air Conditioning Starter Pack

JAVAC Split System Installation Kit (R32 Rated)

Getting started on installs or adding a second rig to the fleet? The JAVAC Split System Installation Kit bundles your must-have tools so you can pull down fast, leak-check properly, and charge with confidence. It’s a bloody good way to kit out the van without mucking about hunting for individual parts.

Key Features & Trade Benefits

• R32-Rated 2-Stage Vacuum Pump (≈45 L/min): Dependable evacuation for domestic splits. A quicker deep vacuum means less downtime and fewer frustrating call-backs.
• Acravac Plus Digital (Pirani) Gauge: Accurately measures from atmosphere all the way to a deep vacuum. Know exactly when the system is dry instead of guessing.
• TEK-Mate Leak Detector: Proven heated-diode technology for CFC/HCFC/HFC. Find those tiny pinholes and stop repeat visits to the same job.
• Customizable 2-Valve Manifold: Choose between R410A or R134a/R22/R407 scales to match the refrigerant you service most.
• Built for Aussie Conditions: Rugged, professional tools that cop the heat, humidity, and roof work of a standard Aussie summer.

Why This Kit Matters on the Job

Real-world scenario: You’re on a two-storey install in January with Brisbane humidity hanging heavy. You braze clean, fit the drier, then pull down with the CAL-45 and verify the depth on the Acravac while your mate tidies the trunking. Leak-check with the TEK-Mate, charge by weight, and you're off to the next call knowing the job is spot on.

Tradie Pro Tip:

For the most accurate reading, use your micron gauge on a tee at the system, not directly at the pump. Isolate the pump and watch for a pressure rise—if it holds, you’ve nailed both moisture removal and system tightness. Keep your leak detector sensor-cap on between checks to maintain maximum sensitivity.

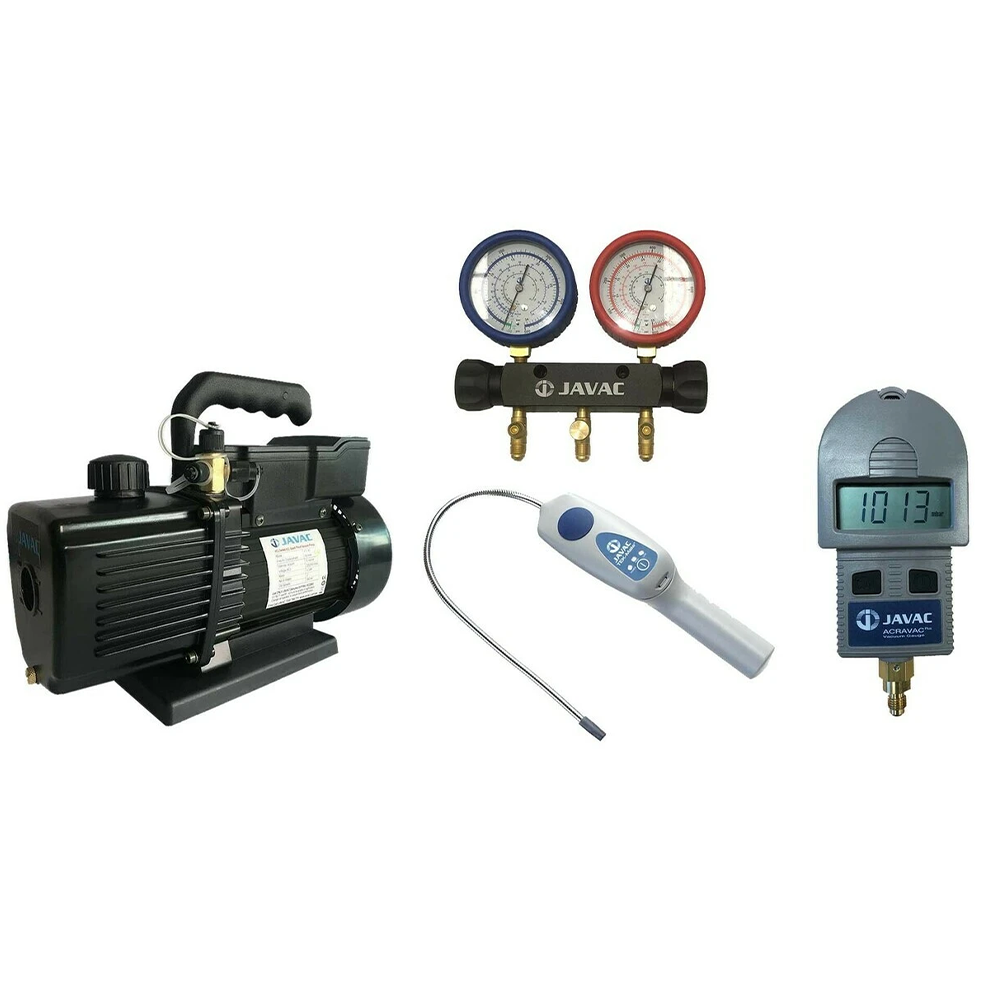

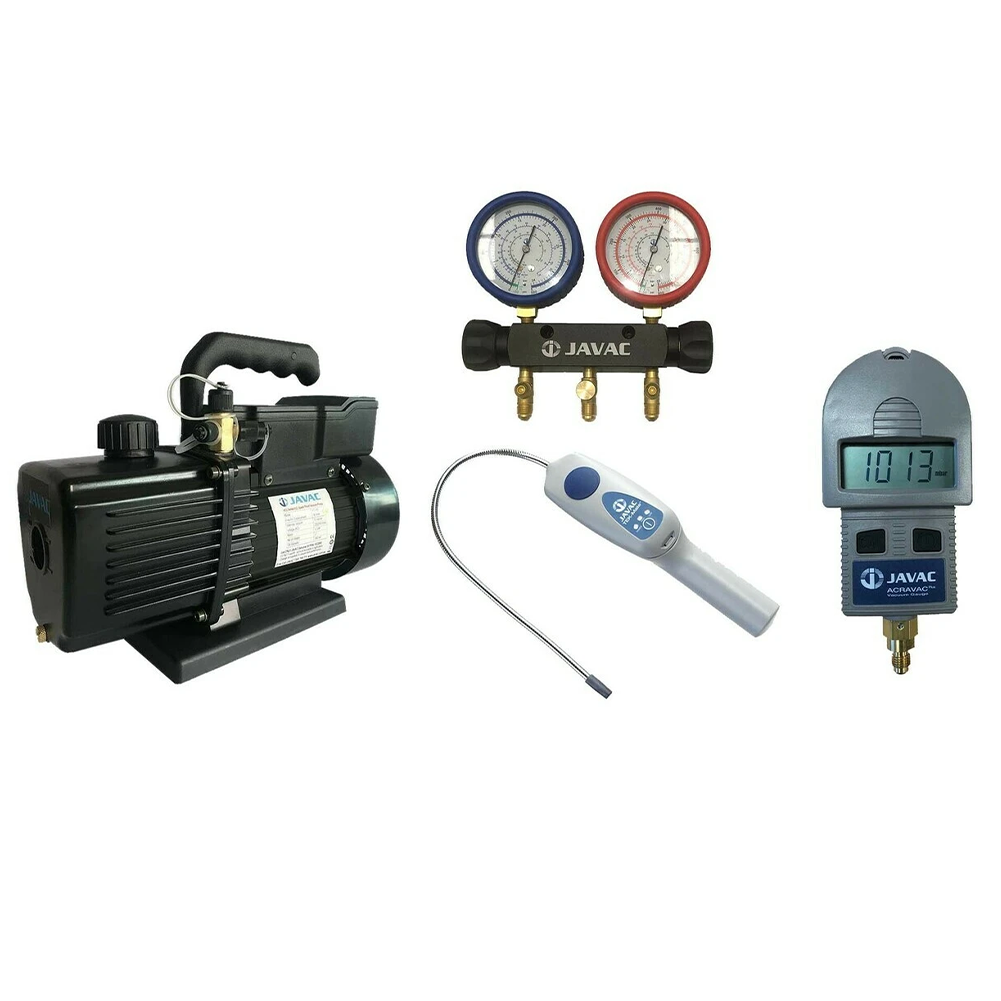

What’s Included

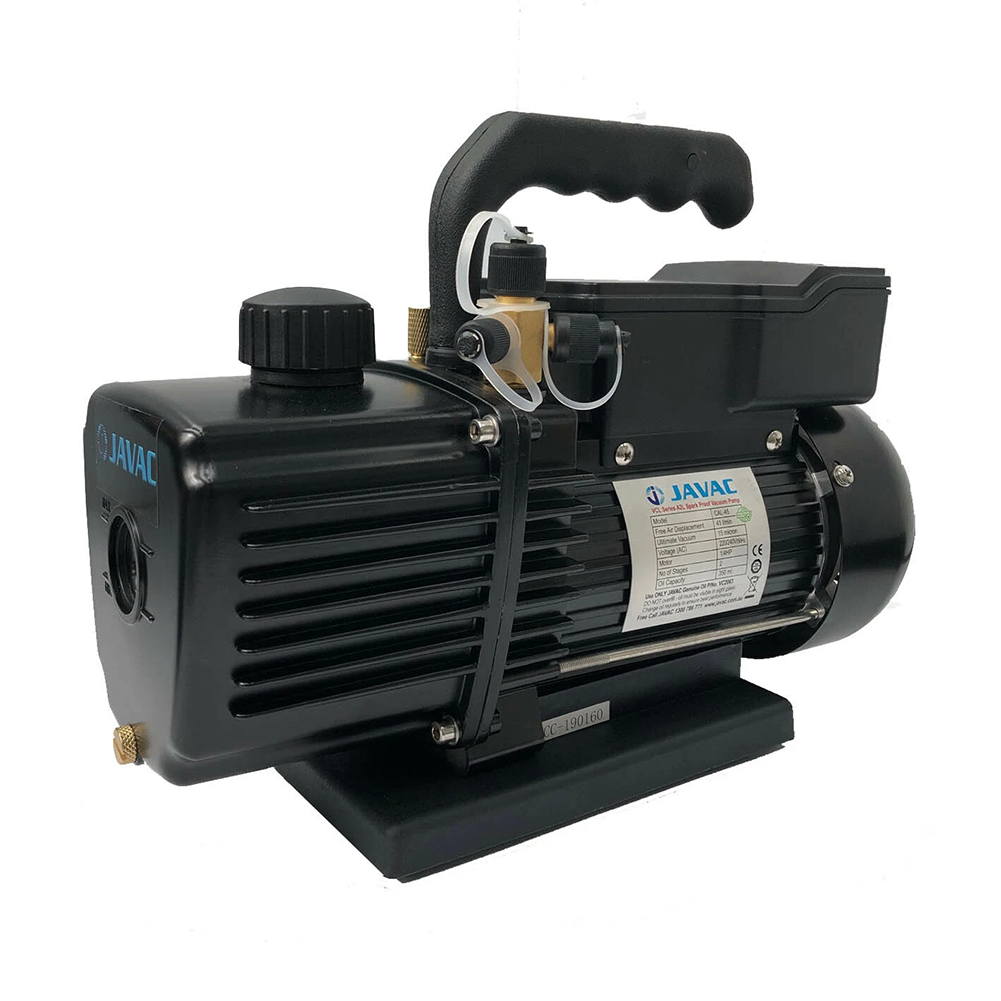

• 1 × JAVAC CAL-45 2-Stage Vacuum Pump (R32-Rated)

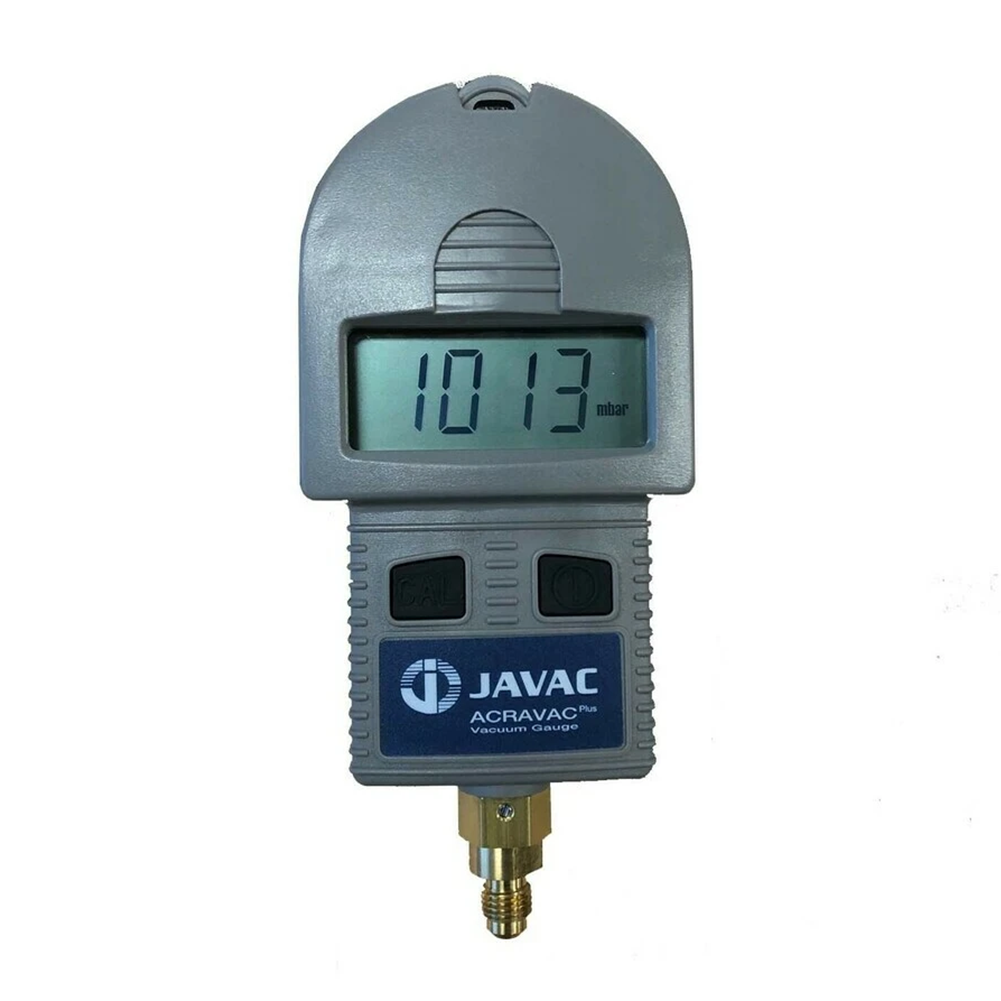

• 1 × Acravac Plus Digital Vacuum Gauge (Pirani)

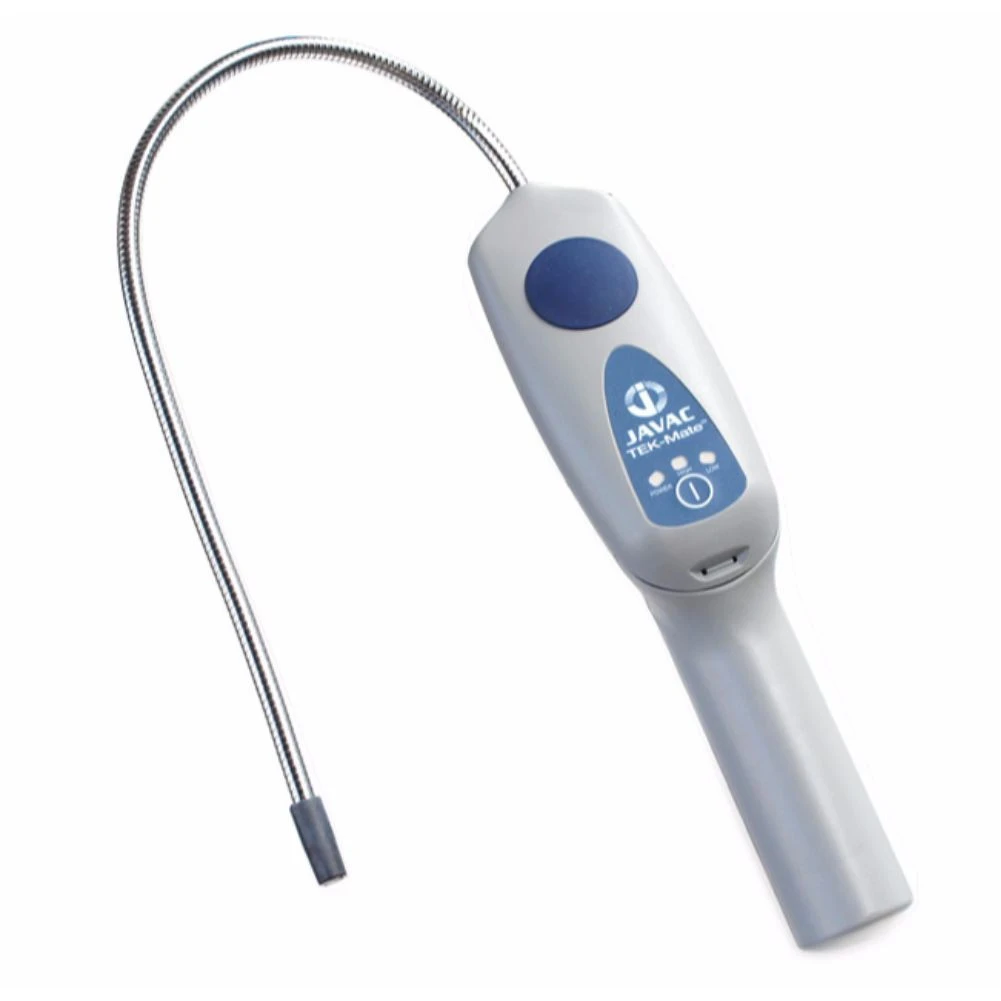

• 1 × TEK-Mate Handheld Refrigerant Leak Detector
• 1 × 2-Valve Manifold Gauge Set (Select R410A or R134a/R22/R407)
• All necessary instructions and manuals

Specifications

---

Frequently Asked Questions (FAQ)

Is 45 L/min enough for a typical 2.5–7 kW split?

Absolutely. For domestic splits with good pipework practices, 45 L/min is the "sweet spot" for efficiency and portability. When paired with the included Acravac micron gauge, you can verify a perfect hold before charging every time.

Does this kit cover R32 jobs?

Yes—the JAVAC CAL-series pump included in this kit is fully R32 compatible. Just ensure you select the correct manifold gauge set at checkout and follow Australian handling and licensing regulations.

What is the benefit of a Pirani vacuum gauge?

The Pirani sensor in the Acravac Plus is significantly more accurate than standard thermal sensors. it provides a continuous reading from atmosphere all the way down to deep vacuum levels, allowing you to see the moisture "boil off" during the evacuation process.
