What Coolbreeze models is this magnetic float compatible with?

This magnetic float (CBSP2200) is specifically designed for Coolbreeze evaporative coolers. It is compatible with Heritage models D095, D125, D160, D195, D230, D255, and Cascade models C125, C160, C205, C240.

Is this a genuine Coolbreeze spare part?

Yes, the CBSP2200 is a genuine Coolbreeze magnetic float, also known as CoolBreeze PN: SP2200. It is designed to be a direct replacement for the original component in the specified evaporative cooler models.

What function does the magnetic float perform in an evaporative cooler?

The magnetic float works in conjunction with the float switch to monitor and control the water level within the evaporative cooler's reservoir. It signals the system to refill when water levels drop and to stop filling once the correct level is reached, preventing both dry-outs and overfilling.

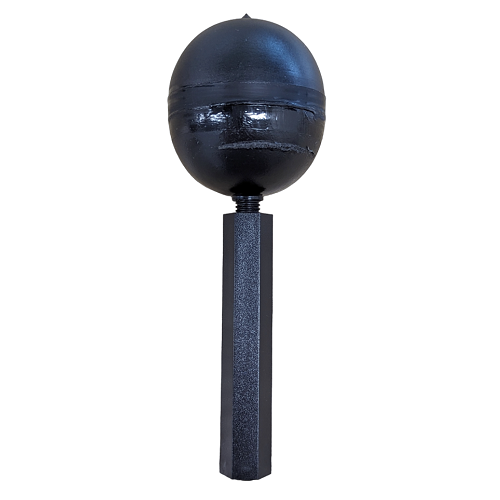

Coolbreeze Magnetic Float Ball Only CBSP2200

Name: Coolbreeze Magnetic Float (Ball Only)
Brand: Coolbreeze
SKU: CBSP2200
Price: 28.00 AUD
Availability: InStock

🛠️ Need the Right HVAC Tool for the Job?

Whether you're quoting a bulk order or chasing hard-to-find tools, we’re here to help.

Get a fast, personalised quote—no pressure, no spam!
Fill out the form below and we’ll get back to you ASAP.

📩 Request a Quote

This is the Coolbreeze Magnetic Float (Ball Float Only), a genuine spare that's critical for your evaporative cooler. It's the small but crucial component that ensures your cooler's water level stays spot-on, preventing dry-outs or overfilling. It's a common component to wear out, especially after a few scorching Australian summers.

I've seen plenty of coolers on roofs that just needed a fresh float to get back in business. Getting the right part, like this CBSP2200, makes a job go smoothly.

Best For

Evaporative cooler service technicians
HVAC maintenance crews
Competent DIY owners maintaining their Coolbreeze evaporative cooler

Compatibility

This magnetic float is specifically designed for Coolbreeze evaporative coolers equipped with a magnetic style float switch. It suits the following models:

CoolBreeze Heritage: D095, D125, D160, D195, D230, D255
CoolBreeze Cascade: C125, C160, C205, C240

If you're running a different model, check fittings and specs before ordering.

Features

Direct Replacement: A genuine Coolbreeze spare part (PN: SP2200), ensuring a precise fit and reliable operation.
Magnetic Operation: Designed to work seamlessly with Coolbreeze magnetic style float switches.
Water Level Control: Crucial for maintaining correct water levels in your evaporative cooler reservoir, preventing damage from dry-out or overfilling.
Easy to Install: Simple component swap for quick maintenance or repair jobs.

What's in the Box

1 x Coolbreeze Magnetic Float (Ball Float Only) - Part/Code: CBSP2200

Using It on the Job

Isolate Power: Always disconnect power to the evaporative cooler at the mains before starting any work to ensure safety.
Drain Water: Ensure the cooler's reservoir is drained to a safe working level or completely emptied.
Remove Old Float: Carefully unclip or remove the old magnetic float from its housing. Inspect the housing for any debris or scale build-up and clean as necessary.
Install New Float: Seat the new CBSP2200 float into position, ensuring it moves freely within the float switch mechanism.
Test Operation: Refill the cooler's reservoir and restore power. Observe the water level and float switch operation to confirm it's working correctly and that there are no leaks.

Limitations & Safety Notes

Only suitable for the specified Coolbreeze Heritage and Cascade models with magnetic float switches.
Always isolate power before attempting any maintenance or repairs on evaporative cooling units.
Installation should be performed by a competent person familiar with evaporative cooler systems and safety procedures.
Not intended for use with other brands or float switch types that do not use a magnetic ball float.

Tradie Pro Tip

Before you swap this float, always check for any gunk or scale build-up in the float switch housing itself. Sometimes a good clean is all that's needed, but if the old float is brittle, discoloured, or waterlogged, it's definitely time for a new one like the CBSP2200 to prevent future call-outs.

Pair With

This Coolbreeze magnetic float pairs well with fresh evaporative cooler filter pads and a replacement pump if you're undertaking a full seasonal service. You might also consider checking your evaporative cooler wall controller for any signs of wear or malfunction.
