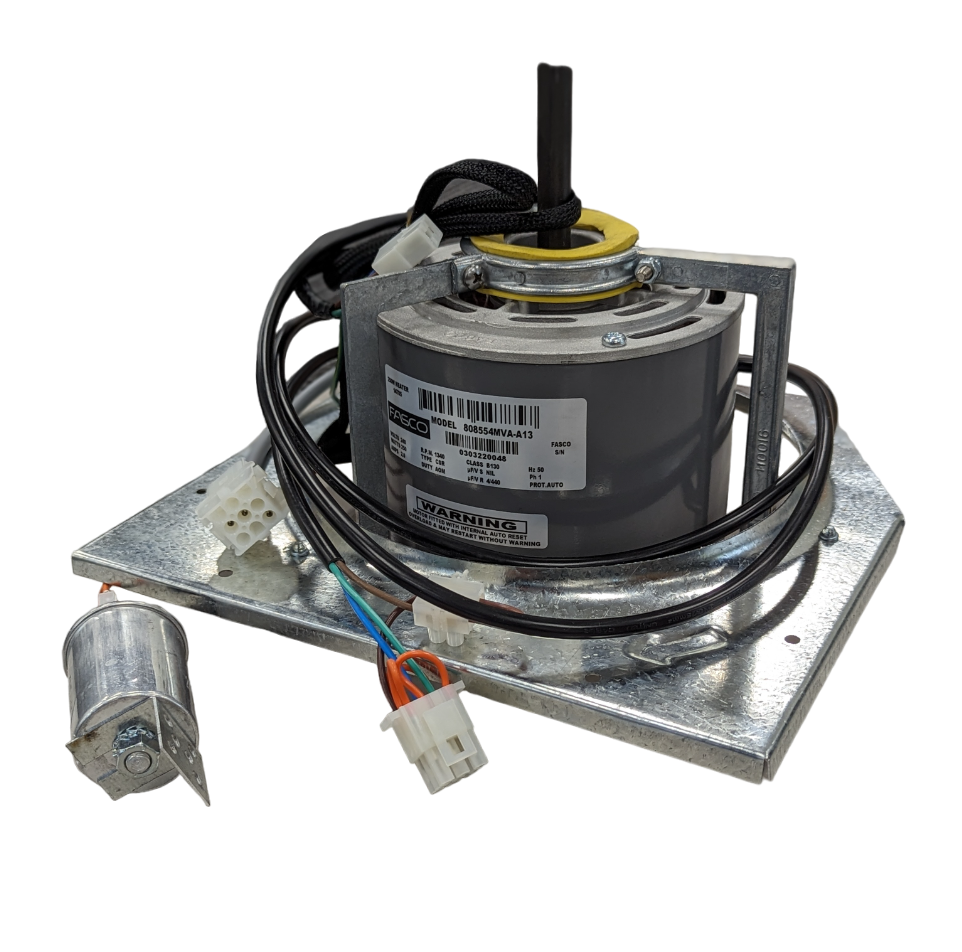

Brivis Fasco Heater Fan Motor 315W

This Brivis Fasco Heater Fan Motor (BS80015289) is a direct replacement for 315W Brivis gas heating units, helping keep your system moving air efficiently. When a gas heater fan motor gives up, especially during a cold snap, getting the right part in quickly is key to restoring comfort.

Swapping out a noisy or failed motor keeps the warm air circulating through the Australian winter. I've swapped out enough of these on freezing mornings to know the value of a direct-fit replacement.

Best For

• HVAC service technicians working on ducted gas heaters.
• Gas heating specialists.
• Competent DIY owners maintaining their Brivis gas heating systems.

Compatibility

This fan motor is compatible with Brivis gas heaters requiring a 315W fan motor. It specifically replaces Brivis Part Numbers 80015289 and B015289. If you're running a different model, check fittings and specs before ordering.

Features

• Direct Replacement: Engineered as a straightforward swap for original Brivis gas heater fan motors.
• Integrated Mounting Plate: Comes with a pre-attached plate for hassle-free installation into the heater unit.
• Includes Capacitor: Supplied with the correct capacitor, saving time and ensuring proper operation from the start.
• 315W Power Rating: Delivers consistent airflow and performance, matching the system's original specifications.

Technical Specifications

What's in the Box

• 1 x Brivis Fasco Heater Fan Motor (315W)
• 1 x Mounting plate
• 1 x Motor capacitor

Using It on the Job

1. Always isolate power to the Brivis gas heater at the main switchboard and apply lockout/tagout procedures before commencing work.
2. Access the existing fan motor compartment, carefully noting all wiring connections. Take clear photos for reference if needed.
3. Disconnect wiring from the old motor and unbolt it from its mounting points.
4. Install the new Brivis Fasco motor, ensuring the plate aligns correctly and all wiring connections are secure and correct according to the original setup.
5. Verify all connections are tight and components are properly seated, then restore power to the unit.
6. Test the heater's fan operation across all modes to confirm correct airflow and check for any unusual noises before completing the job.

Limitations & Safety Notes

• Always isolate power to the appliance before attempting any electrical work.
• Ensure this 315W motor matches the specifications of your existing unit. Incorrect power ratings can affect system performance.
• Installation should only be performed by a qualified tradesperson or a competent individual with appropriate electrical safety knowledge.
• Always follow Australian electrical safety standards and Safe Work guidance during installation and testing.

Tradie Pro Tip

Before pulling out the old motor, snap a few clear photos of the wiring. It saves a lot of head-scratching during reassembly, especially on a cold morning when your fingers are numb.

Pair With

Pair with a reliable multimeter, insulated electrical tools, and a set of nut drivers for a smooth installation of your Brivis heating spares.
