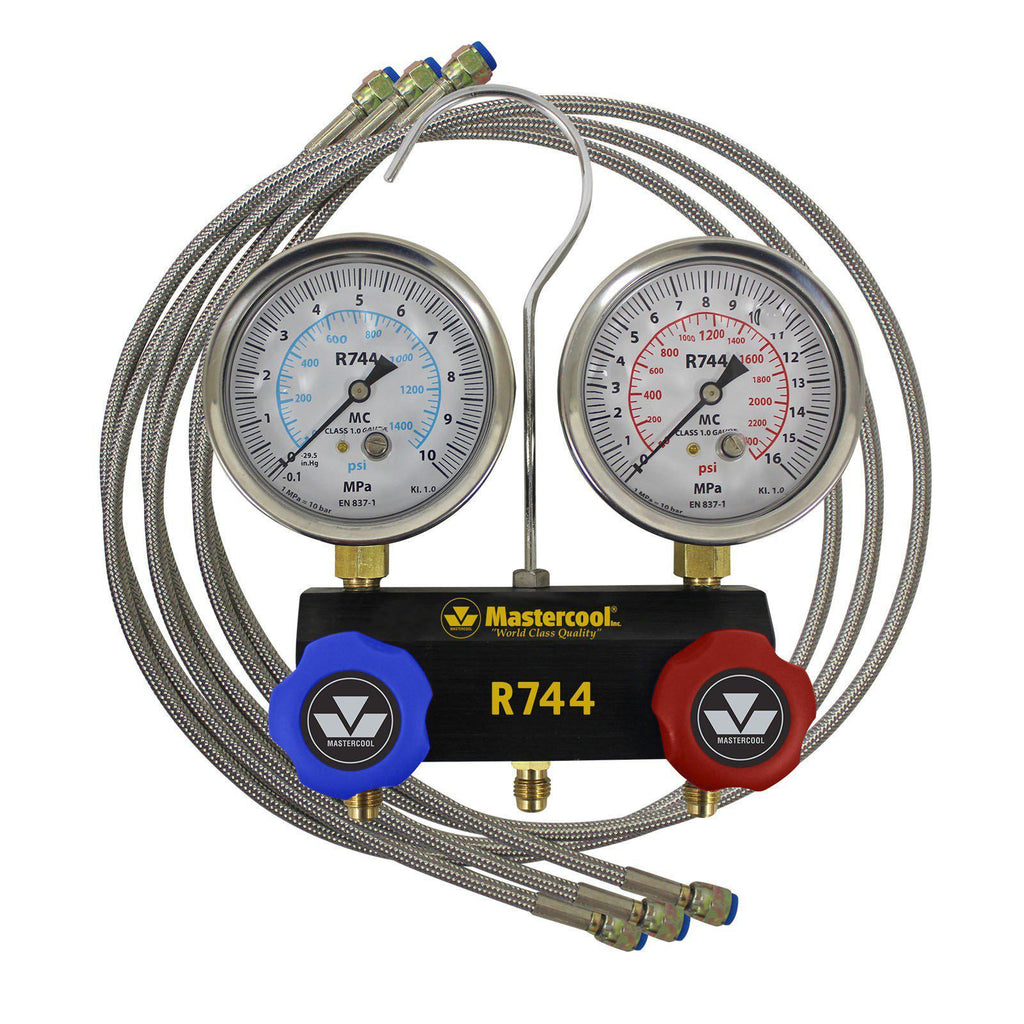

Mastercool Aluminum Manifold 80mm Oil Filled Gauges For Co2 150cm Steel Braided Hoses 55661g

The Mastercool 55661 CO₂ (R744) Manifold Gauge Set is built for techs who need rock-solid pressure readings and leak-tight performance on high-pressure refrigeration jobs. Ideal for licensed fridgies, contractors, and apprentices working on CO₂ racks, cool rooms, and heat pumps. It’s a fair-dinkum, get-it-done tool that saves time and reduces call-backs.

Key Features & Trade Benefits

• Free-floating piston valves → Smoother operation and less wear than twist-type valves, so you spend more time charging and less time fighting sticky stems.
• Double O-ring sealing → Tighter seal under CO₂ pressure; fewer leaks, fewer do-overs, fewer grumpy customers.
• 70 mm oil-filled, Class 1.0 gauges (PSI/MPa + CO₂ temp scale) → Dampens vibration for stable, accurate readings when the plant room’s humming.
• Solid extruded aluminium body → Durable, lightweight, and built to cop a knock in the ute without throwing out your calibration.
• Three 150 cm steel braided hoses for CO₂ → High burst rating and reliable connections for confident charging and testing.
• Large, easy-grip knobs → Gloved-hand control so you’re not fiddling about on a hot roof in 40-degree heat.
• 1/4" SAE connections → Straightforward hook-up with standard service gear.

Why This Product Matters

CO₂ work is a different beast: higher pressures, tighter tolerances, and no room for guesswork. This Mastercool set is purpose-built for R744, so your readings stay steady and your seals stay tight. One Brisbane contractor told us he swapped to a free-floating piston valve manifold after a twist-type started weeping mid-charge—since then, not a single callback on that supermarket line. That’s a bloody good result.

Need to compare more options? Check the full range here: manifold gauges category.

Pro Tip

Before connecting on CO₂ jobs, crack the hose ends slightly at the manifold (away from your face) to purge air and avoid spongy readings. Then log your before/after pressures and ambient—those notes save your bacon when a site manager asks “what changed?”

Compatibility & System Info

• Refrigerant: Designed for CO₂ (R744) systems.
• Connections: 1/4" SAE.
• Use cases: Commercial refrigeration, heat pumps, CO₂ cascade systems.
• Note: Always confirm hose and gauge pressure ratings before use on any system. Follow Australian refrigerant handling codes for safety—no worries.

Local Jobsite Context

From Melbourne supermarket racks to Brisbane cold rooms, CO₂ plants can run hard in Aussie conditions. The oil-filled gauges help steady the needle when condensers are roaring and the yard’s shaking—keeps your readings ripper and your diagnosis sharp.

What’s Included

• 2-way aluminium manifold with free-floating piston valves
• Two 70 mm oil-filled Class 1.0 gauges (low & high side) with PSI/MPa and CO₂ temperature scale
• Three 150 cm stainless steel braided high-pressure hoses
• Plastic carrying case

Specifications

Specs validated against the manufacturer’s published data.

Warranty & Returns

Covered by standard manufacturer warranty. For returns or warranty assistance, please refer to our store policy or contact support—our team will sort you out quickly.

FAQs

Is this manifold suitable for everyday CO₂ service work?

Yes—it's purpose-built for R744 with oil-filled gauges and CO₂-rated hoses for stable, accurate readings.

Do I need a separate scale for accurate charging?

Absolutely. Pair it with a Bluetooth charging scale for precise charge weights and job logs. See the Mastercool MC98210-BL charging scale for an easy win on accuracy.

Analog or digital manifold—what’s better for CO₂?

Both have their place. For rugged, high-pressure jobs many techs prefer analog, oil-filled gauges for stability. If you’re weighing options, this quick read helps: Analog vs Digital Gauges – guide.

Any safety guidance I should follow on R744?

Yes—adhere to Australian refrigerant handling codes for risk assessment, PPE, earthing, and safe work zones. See AIRAH’s Refrigerant Handling Code of Practice for current guidance.

Related Products

• Mastercool MC98210-BL Bluetooth Charging Scale — helpful when you want accurate charge weights and quick job documentation.
• Mastercool 99963-EU 4-Valve Digital Manifold Kit — a solid upgrade path if you’re moving into data-logging and multi-refrigerant workflows.
• Browse all manifold gauges — compare sizes, valve types, and hose options to fit your workflow.

Compliance & Safety (Authoritative Reference)

For Australian best practice on refrigerant safety, planning, and PPE, refer to AIRAH’s Refrigerant Handling Code of Practice.
