Imperial 275 45 Degree Flaring and Swaging Tool Kits
$388.95
$486.95
Key Features
For 1/8” to 5/8” (4mm to 15mm) O.D. tubingWith a minimum clearance radius of just 1-1/4”, the ratcheting tube cutter is ideal for use on pipework in confined spaces or against walls.
The unique ratcheting design enables the cutter to complete entire revolutions of the pipework, with maximum leverage, by simply moving the handle up and down.
The TC-1050 cutter can easily be removed from the handle. Includes (1) S32633 general-purpose cutter wheel.
Ergonomic handle with non-slip grip.
100% factory tested to ensure accurate spiral-free cutting.
Six independent drive pawls provide a 15° arc-swing.

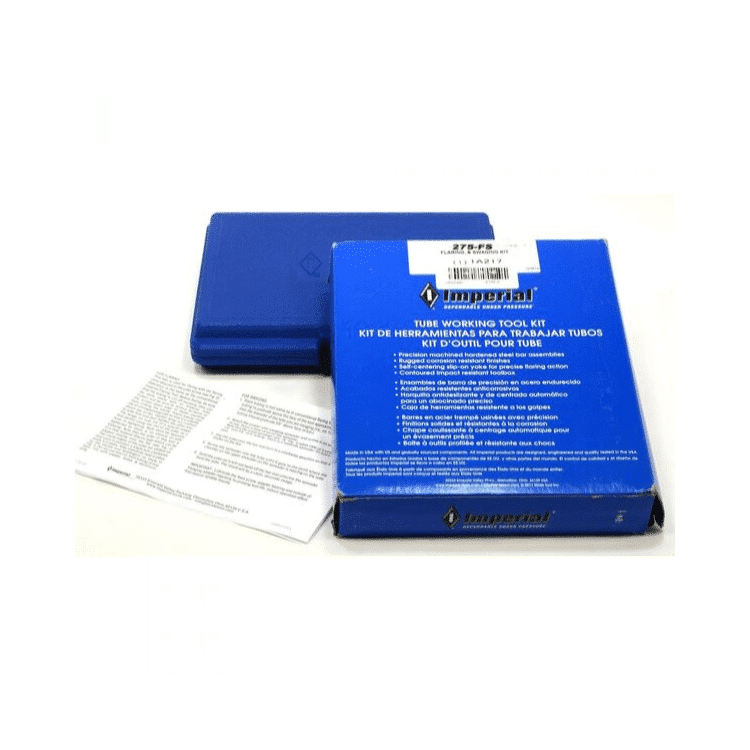

What's included:

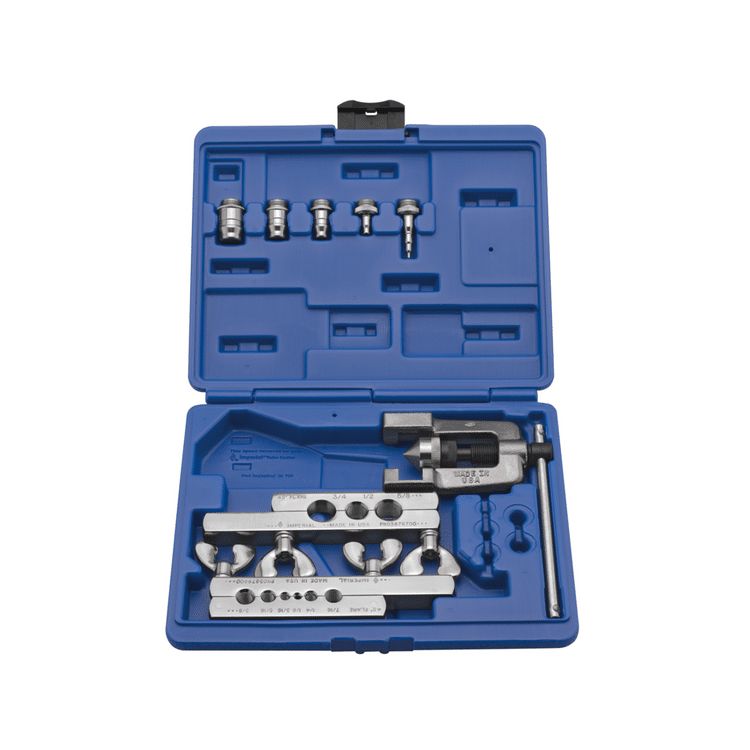

1 x Tool case, Flares 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4” O.D and 5 swage adapters for 7 tube sizes: 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4” O.D and Limited Lifetime Warranty (Conditions apply).
IMP.275-FSM METRIC FLARING AND SWAGING TOOL
Same as 275-FS except for metric size tubing 4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 15 mm, 16 mm, 18 mm, 22 mm O.D. tubing. In the tool case. Wt. 3.5 lbs.
Specifications
Item: Flaring and Swaging ToolFlare Type: 45 Degrees Single Lap
Capacity Tubing O.D. (In.): Flares 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4; Swages 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4
Application: For Soft Copper, Brass and Aluminum Tubing
Overall Length (In.): 7
Handle: Sliding T
Nominal Capacity: 1/8 into 3/4 in O.D. Tubing
Wall Thickness: .035 in
Weight: 1.59 kg
Warranty: Limited Lifetime (Conditions apply)
Country of origin: USA.
